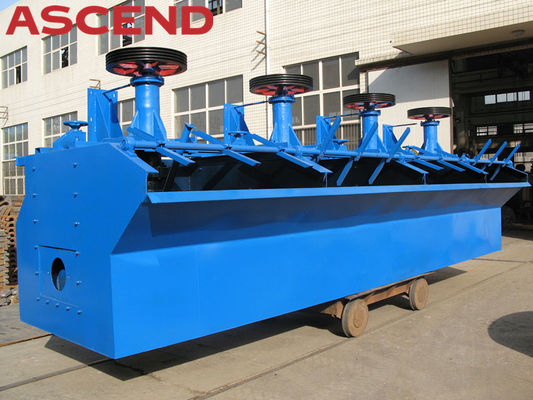

SF1.0 Flotation Machine For Gold Iron Ore Separation Mining Equipment

Place of Origin Henan
Brand Name ASCEND
Certification CO
Model Number SFO.37 SF0.7 SF1.0 SF1.2 SF2.0 SF2.8 SF4.0 SF8.0
Document Product Brochure PDF
Minimum Order Quantity 1 piece
Price 3999-4999 USD /piece
Packaging Details wooden case packing
Payment Terms Western Union, L/C, T/T
Supply Ability 10 pieces per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Mining Capacity Customized
Material Metal ,ores Name Mining Crusher Machine
Power Customized Size Customized
Type Beneficiation Machine Voltage 380v
Warranty 1 Year Weight Customized
Highlight

SF1.0 Flotation Machine

,

Ore Separation Flotation Machine

,

Ore Separation Mining Flotation Equipment

Leave a Message
Product Description

Product Introduction

Flotation machine can be used for many ore beneficiation . It is subject to coarse separation, swept separation, fine separation and flotation, so the useful ore are reclaimed.

3


33flotation (5)_.png



Working principle

The flotation machine is mainly used for sorting non-ferrous metals such as copper, zinc, lead nickel and gold, and can also be used for rough selection and selection of ferrous and non-metal. The motor is driven by the motors V-belt drive to rotate the impeller, which generates centrifugal force to form a negative pressure On the one hand, it absorbs sufficient air to mix with the slurry. On the one hand, it mixes the slurry with the drug, and refines the foam to make the mineral bond foam Mineralized foam is formed on the slurry surface. Adjust the height of the shutter and control the liquid level so that the useful foam is scraped off by the scrape.


Application

Application: Metal ore such as gold, silver, copper, Lead (Pb), Zinc (Zn), Tin, Nickel (Ni) and so on, non-metal mineral, raw body and materials of chemical industry.

.jpg

Features

1.Simple structure, strong agitation ability, and low energy consumption.

2.The impeller is equipped with holey cylinder air alloter.

3.The air scattering is uniform and the mixing effect of air and slurry is good.

2_

Techinical parameters

Model Volume (m3) Cell size (mm) Impeller Dia. (mm) Impeller speed (r/min) Capacity (m3/min) Power (kw) Singe cell weight (kg)
XJ-3 0.35 700× 700× 700 300 483 0.18-0.4 2.2/0.55 430
XJ-6 0.62 820× 900× 850 350 400 0.3-0.9 3/1.1 755
XJ-11 1.1 1100× 1100× 1000 500 330 0.6-1.6 5.5/1.1 1416
XJ-28 2.8 1750× 1600× 1100 600 280 1.5-3.5 11/1.1 2113
XJ-58 5.8 2200× 2200× 1200 750 240 3--7 22/1.5 3400
SF-0.37 0.37 700× 700× 750 296 386 0.2-0.4 1.5/0.55 468
SF-0.7 0.7 820× 900× 950 350 400 0.3-0.9 3/1.1 805
SF-1.2 1.2 1100× 1100× 1100 450 312 0.6-1.2 5.5/1.1 1373
SF-2.8 2.8 1700× 1600× 1150 550 268 1.5-3.5 11/1.5 2138
SF-4 4 1850× 2050× 1200 650 220 2--4 15/1.5 2582
SF-8 8 2200× 2900× 1400 760 191 4--8 30/1.5 4129
SF-10 10 2200× 2900× 1700 760 191 5--10 30/1.5 4486
SF-16 16 2850× 3800× 1700 760 191 5--16 30× 2/1.5 8320
SF-20 20 2850× 3800× 2000 760 191 5--20 30× 2/1.5 9828

Working Sites




You May Also Like

ball mill (22) QQ20230504180748.jpg hammer crusher 24



          Ball Mill                        Jaw Crusher               Hammer Crusher

-14spring cone crusher (9)14



    2-Roller  Crusher                Cone Crusher              Impact Crusher

Company Profile

  • Henan Ascend Machinery & Equipment Co., Ltd. was established in 2005 and it is located in the high-tech zone of Zhengzhou City, Henan Province. As a technology driven mining equipment company, it is committed to the R&D, production, sales and after-sales service of mining machinery and equipment.
  • The company's main products are crushers, grinding mill equipment, mineral beneficiation equipment, rotary dryer and crusher & grinding mill spare parts. In addition to the Chinese domestic market, Ascend machinery expands its business in more than 160 countries and regions.
  • Focused on product quality and after-sales service, Ascend has won widespread praise and trust of international customers. We have a professional engineer team responsible for the pre-sales technical consultation, technical solutions in the process of sales, installation, commissioning and after-sales service to ensure that customers can purchase and use equipment with peace of mind.

SF1.0 Flotation Machine For Gold Iron Ore Separation Mining Equipment 14SF1.0 Flotation Machine For Gold Iron Ore Separation Mining Equipment 15

FAQ

Q1. Are you factory or trading company?
We are factory specialized in manufacturing stone crushers, grinding mills, beneficiation equipments and other mining equipments. Our office and factories are based in Zhengzhou, China. Because we are factory, so we can guarantee the machine quality and we can give you very competitive factory price without extra agent cost.

Q2. To which country your products have been exported before?
In Africa, We have exported to Sudan, Kenya, Zambia, Ethiopia, Zimbabwe, Guinea, Nigeria and so on. We also exported South Africa, Chile, Peru, Ecuador, New Zealand, America, Austrilia more than 160 countries. Our equipment and service have won very high reputation in these countries.

Q3. How will you help the customer install the equipment?
We will send our senior engineer to your place to guide the installation and commissioning.

Q4. How about the wear parts supply?
We offer wear parts to our customer with our most favorable price. If there are problems you could not handle, we will send our technicians to your place.

Q5.What about the payment method?
T/T, Paypal, Western Union, L/C is available

Q6.What about after-sale service?
12 months warranty for all kinds of products; and you will get our 7*24h online service.
