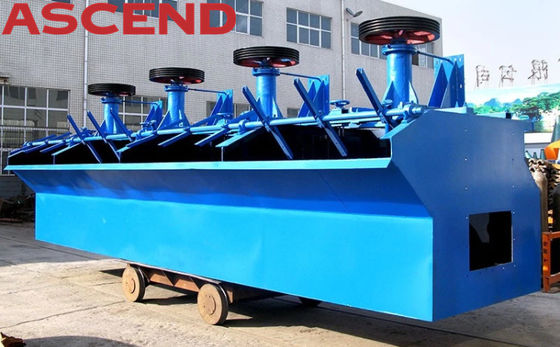

Gold Separating Froth Flotation Machine Mining Mineral Ores Tank
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Material||Metal ,ores||Name||Mining Crusher Machine|
separating Froth Flotation Machine,
380v separating Froth Flotation Machine
The flotation machine is mainly used for sorting non-ferrous metals such as copper, zinc, lead nickel and gold, and can also be used for rough selection and selection of ferrous and non-metal.
The flotation machine driven by motor revolves the impeller and this will bring the centrifugation and negative pressure. In this condition enough air will mix with the slurry and at the same time the slurry and chemical will mix very well to make the mineral adhesion to the bubble.The height of flash board can be adjusted to scrape useful bubble .
Application: This flotation machine is widely used in rougher flotation ,fine flotation and reverse flotation for nonferrous metal,ferrous metal and nonmetal minerals like copper.lead,zinc,nickel and molybdenum etc.The flotation machine also can he used for concentrating of coal, calcium fluoride and talcum.
The circulation of mineral slurry is reasonable,and can avoid the disposition of coarse sand to the largest extent;
There is a self-control device on the surface of mineral slurry,so it is easy to adjust it.
|Model||Volume (m3)||Cell size (mm)||Impeller Dia. (mm)||Impeller speed (r/min)||Capacity (m3/min)||Power (kw)||Singe cell weight (kg)|
|XJ-3||0.35||700× 700× 700||300||483||0.18-0.4||2.2/0.55||430|
|XJ-6||0.62||820× 900× 850||350||400||0.3-0.9||3/1.1||755|
|XJ-11||1.1||1100× 1100× 1000||500||330||0.6-1.6||5.5/1.1||1416|
|XJ-28||2.8||1750× 1600× 1100||600||280||1.5-3.5||11/1.1||2113|
|XJ-58||5.8||2200× 2200× 1200||750||240||3--7||22/1.5||3400|
|SF-0.37||0.37||700× 700× 750||296||386||0.2-0.4||1.5/0.55||468|
|SF-0.7||0.7||820× 900× 950||350||400||0.3-0.9||3/1.1||805|
|SF-1.2||1.2||1100× 1100× 1100||450||312||0.6-1.2||5.5/1.1||1373|
|SF-2.8||2.8||1700× 1600× 1150||550||268||1.5-3.5||11/1.5||2138|
|SF-4||4||1850× 2050× 1200||650||220||2--4||15/1.5||2582|
|SF-8||8||2200× 2900× 1400||760||191||4--8||30/1.5||4129|
|SF-10||10||2200× 2900× 1700||760||191||5--10||30/1.5||4486|
|SF-16||16||2850× 3800× 1700||760||191||5--16||30× 2/1.5||8320|
|SF-20||20||2850× 3800× 2000||760||191||5--20||30× 2/1.5||9828|
