Gravity Mining Shaking Table
| Place of Origin | China |
|---|---|
| Brand Name | Ascend |
| Certification | CE/ISSO9001 |
| Model Number | 6s |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 1 set |
| Price | 1000 to 1500 USD |
| Packaging Details | Water and rust proof in wooden box or cotainer |
| Delivery Time | 7-10 working days |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 100 set per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Mining Shaking Table, Shaker Table | Application | Mining Ore Separation |
|---|---|---|---|
| Type | Gravity Separator | Dimension | 4.8x1.5x0.3 |
| Material | Casting Iron/steel Alloy | Motor | AC Motor |
| Warranty | One Year | Production Capacity | 98% |
| Voltage | 220V/380V | ||
| Highlight | 98% centrifugal gold separator,Gravity mining shaking table |
||
Product Description

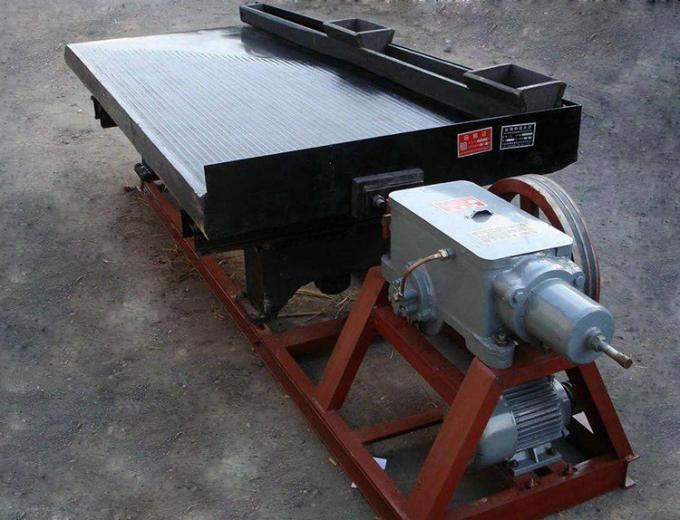

High Efficiency Gold Gravity Mining Shaking Table Separator Machine
Shaking table is also called shaker table, gravity table concentrator, and it is a gravity separation device for fine minerals . 6s Shaking table is effective in processing precious and base metal, rare metal and non-metallic minerals, widely used in separation of Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum etc.
Our shaking table can produce mob type, the coarse ore deck is designed for recovering particles size from 0.5 mm to 2 mm; the fine sand deck is designed for recovering fine particles in the range of 0.074 mm to 0.5 mm; the slime deck is designed for recovering super extremely fine particles in the range of 0.037 mm to 0.074 mm.
Working principle
The working principle of Shaking Table is to use the combined action of the specific gravity difference of sorted minerals, alternating movement of bed surface, and transverse oblique water flow and riffle (or notch groove),to allow loose layering of ores on the bed surface and fan-shaped zoning. Then different products can be produced.
Main Features:
1.High recovery ratio
2.High concentration ratio
3.Easy installation
4.Simple operation
5.Deck constructed of fiber glass
6.Seven different decks to choose
7.Long working life
8.Adjustable stroke length and speed.
Product specifications
| Model NO. | 6S | Table Size | 4520*1850*156mm | |
| Stroke | 8-36mm | Motor Power | 1.1kw | |
| Time/min | 240-380 | Dimension | 5630*1850*900mm | |
| Landscape | 0-5° | Table Weight | 650kg | |
| Material | Feeding Size | Mine Density | Flushing Water | Capacity(t/h) |
| Coarse Sand | 2-0.5mm | 10-30% | 0.5-3.5t/h | 1-2.5 |
| Fine Sand | 0.5-0.074mm | 0.8-1.2 | ||
| Ore Mud | 0.0774-0.037mm | 0.3-0.6 | ||

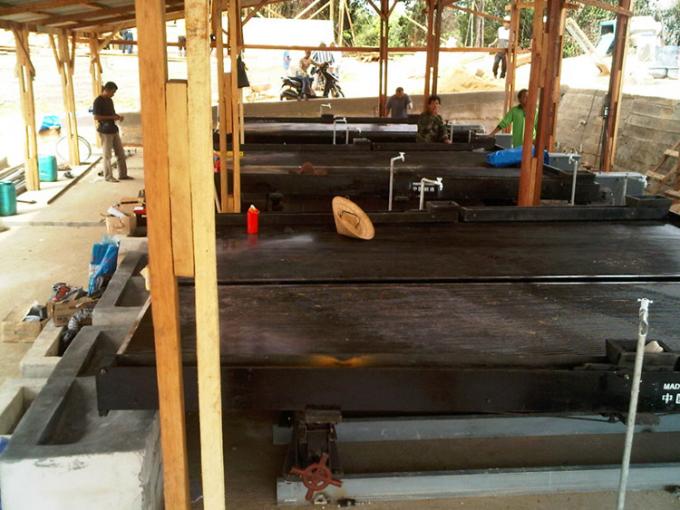

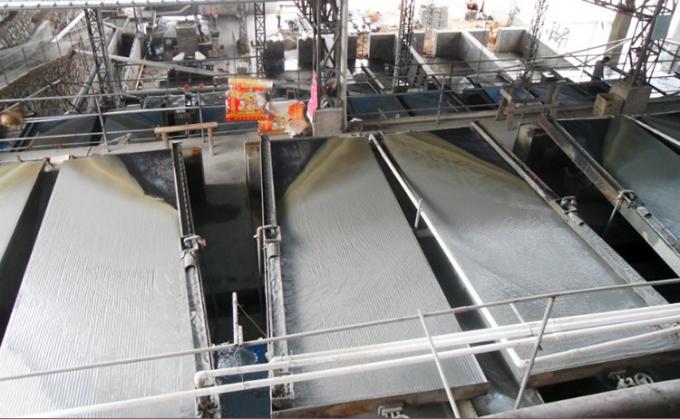

Customer working site
