Gold Knelson Centrifugal Gold Concentrator
|Name||Knelson Gold Centrifugal Concentrator||Application||Gold Gravity Separation|
|Voltage||380v Or 220v||Industry||Gold Mining|
|Quality Guarantee||One Year||Type||Gravity Separator,gold Ore Processing Equipment,gold Concentrator|
|Production Capacity||98%||Dimension(l*w*h)||Diffrent Model|
98% centrifugal gold separator,
Gold Knelson ore processing machine
High efficiency gold knelson centrifugal concentrator

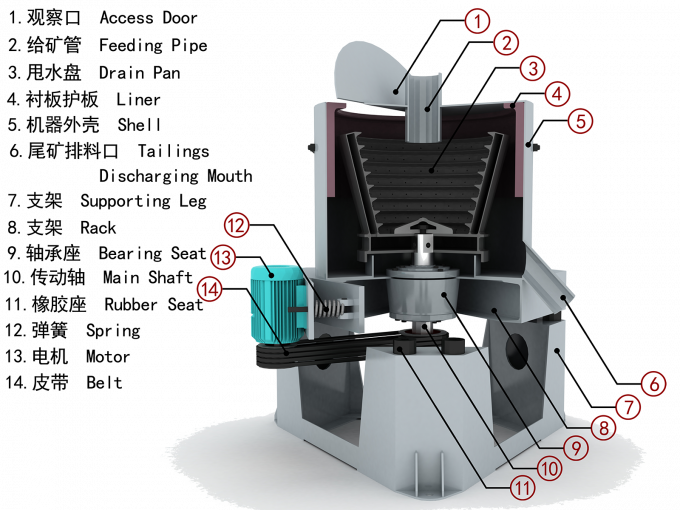

The automatic Discharge Centrifugal Gold Concentrator uses a centrifugal field to concentrate fine, free minerals that are not recoverable using the traditional techniques of small scale and artisanal miners.
For now, five models have been developed. Capacities range from laboratory scale to 150 tons of solids per hour. Beneficiation test shows that the recovery can be 99%,especially for recovering the natural lode ore gold,when 65% Grind size are smaller than 0.074 mm ,the recovery is expected up to 98%.For 0.004 mm size natural gold, the recovery is 97%.
Knelson gold centrifugal concentrator is also called Nelson centrifuge, used to collect free gold in the rein gold ore or alluvial placer gold. It’s an ideal gravity method equipment to replace amalgamating, mercury and cynide chemical. It use the eccentric gravity powder to collect the free gold inside the inner cone groove. The real application results show that the recovery can be as high as 80%, especially for the free gold in the alluvial gold in the placer gold ore. The recovery rate for the gold ore slurry of 0. 074mm out of the ball mill can also reach more than 70%.
Features of gold centrifugal concentrator :
1. High concentrating ratio and high recovery
2. Total process automation, steady recovery performance
4. Environmentally friendly ( no chemical additives or reagents)
5. Low water and electricity requirements
6. Low production costs, durable wear parts, minimal maintenances requirements
7. Compact design requiring less space, easy merged into the existing mining processing
8. Quick payback on investment, typically lass than half year

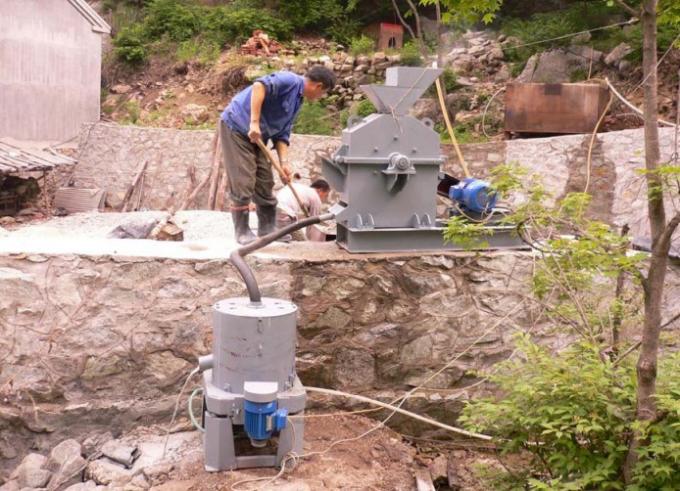

Customer working site
The centrifugal usually works together with the gold grinding mills like ball mill, wet pan mill or chillean mill to be fed with gold ore slurry and select the free gold or big size gold, the remaining gold will be discharged and goes to the shaking table or gold sluice so that the tailing gold can be reselected.
|Backlash water quantity
|Cone rotation speed
|Pressure water required

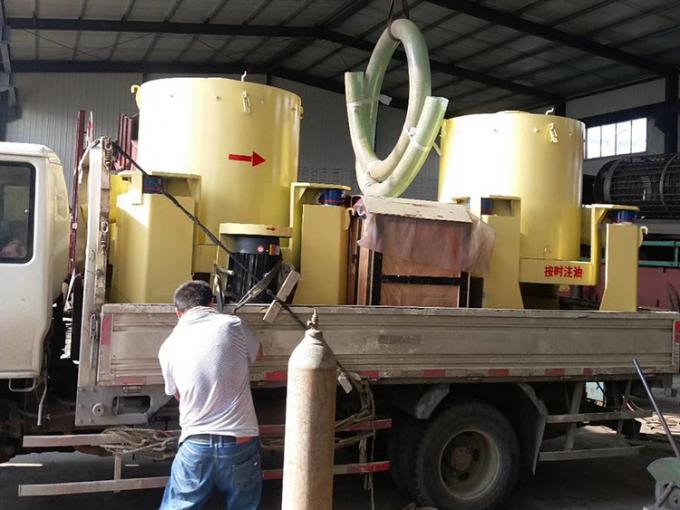

Package and delivery
We can offer various ways of package, dust-free wooden cases, steel plate cases, or as the clients' request. Most of the time, the equipment will be loaded to the containers in the factory. our workers make sure all equipment are steady and fixed before close the door of the container, there will be no damage during transporation and shipment. Following pictures are typical package, reinforcement in the container, and delivery from us.
