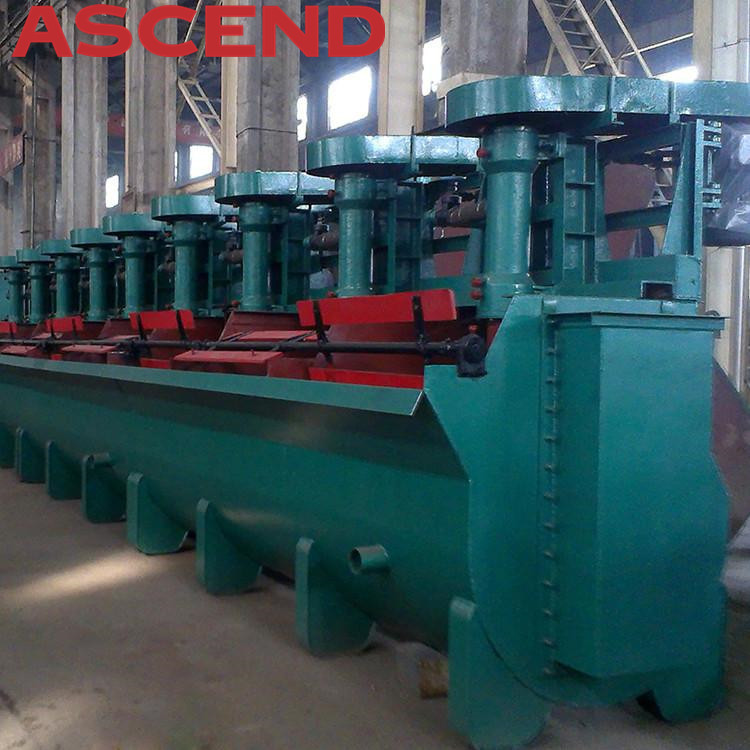

Ore Separator Copper Mining Processing Plant Flotation Equipment
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Material||Metal ,ores||Name||Mining Crusher Machine|
Ore Separator Copper Mining Flotation Equipment,
380v separating Froth Flotation Machine,
Mining Flotation Equipment
Flotation machine can be used for many ore beneficiation . It is subject to coarse separation, swept separation, fine separation and flotation, so the useful ore are reclaimed.
The flotation machine driven by motor revolves the impeller and this will bring the centrifugation and negative pressure. In this condition enough air will mix with the slurry and at the same time the slurry and chemical will mix very well to make the mineral adhesion to the bubble.The height of flash board can be adjusted to scrape useful bubble .
Application: Flotation Separator ,It is widely used for copper, lead, zinc, nickel, molybdenum, gold and other non-ferrous metals, ferrous metals and non-metallic minerals roughing, concentration and flotation operations. Especially for fine disseminated and complex composition ore, using this series flotation machine can get better separation effect.
(1) large capacity;
(2) low energy consumption;
(3) Every cell owns three functions:air absorption,slurry absorption,and flotation separation,and the cells form a flotation separation loop by itself without any auxiliary equipment and is allocated horizontally,which favors the change of flow;
|Model||Volume (m3)||Cell size (mm)||Impeller Dia. (mm)||Impeller speed (r/min)||Capacity (m3/min)||Power (kw)||Singe cell weight (kg)|
|XJ-3||0.35||700× 700× 700||300||483||0.18-0.4||2.2/0.55||430|
|XJ-6||0.62||820× 900× 850||350||400||0.3-0.9||3/1.1||755|
|XJ-11||1.1||1100× 1100× 1000||500||330||0.6-1.6||5.5/1.1||1416|
|XJ-28||2.8||1750× 1600× 1100||600||280||1.5-3.5||11/1.1||2113|
|XJ-58||5.8||2200× 2200× 1200||750||240||3--7||22/1.5||3400|
|SF-0.37||0.37||700× 700× 750||296||386||0.2-0.4||1.5/0.55||468|
|SF-0.7||0.7||820× 900× 950||350||400||0.3-0.9||3/1.1||805|
|SF-1.2||1.2||1100× 1100× 1100||450||312||0.6-1.2||5.5/1.1||1373|
|SF-2.8||2.8||1700× 1600× 1150||550||268||1.5-3.5||11/1.5||2138|
|SF-4||4||1850× 2050× 1200||650||220||2--4||15/1.5||2582|
|SF-8||8||2200× 2900× 1400||760||191||4--8||30/1.5||4129|
|SF-10||10||2200× 2900× 1700||760||191||5--10||30/1.5||4486|
|SF-16||16||2850× 3800× 1700||760||191||5--16||30× 2/1.5||8320|
|SF-20||20||2850× 3800× 2000||760||191||5--20||30× 2/1.5||9828|
