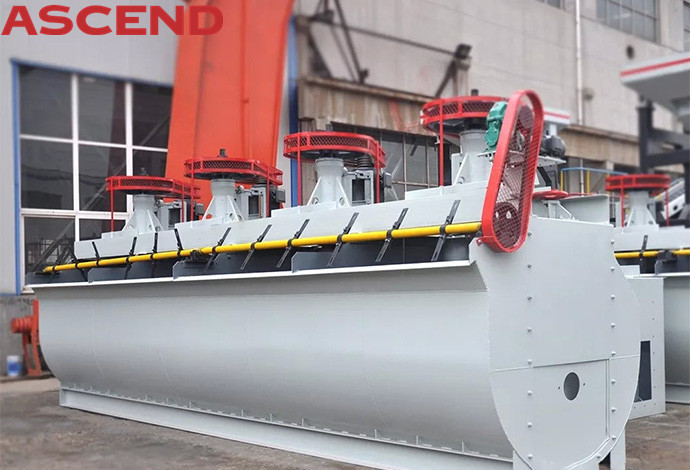

SF Series Flotation Machine Gold Mining Copper Ore Concentrate Cell Froth Plant

Place of Origin Henan
Brand Name ASCEND
Certification CO
Model Number SFO.37 SF0.7 SF1.0 SF1.2 SF2.0 SF2.8 SF4.0 SF8.0
Document Product Brochure PDF
Minimum Order Quantity 1 piece
Price 3999-4999 USD /piece
Packaging Details wooden case packing
Payment Terms Western Union, L/C, T/T
Supply Ability 10 pieces per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Mining Capacity Customized
Material Metal ,ores Name Mining Crusher Machine
Power Customized Size Customized
Type Beneficiation Machine Voltage 380v
Warranty 1 Year Weight Customized
Highlight

SF series Flotation Machine

,

Gold Mining Flotation Machine

,

Ore Concentrate Cell Froth Flotation Machine

Leave a Message
Product Description

Product Introduction

Flotation machine are mainly used in mineral ore dressing plants, selecting the valuable mine from gangue. It is applicable for the separation of numerous of mineral ores, such as fluorite and talc, gold ore, copper ore, iron ore and zinc ore and so on.

3


33flotation (5)_.png



Working principle

When the flotation machine is working, the motor drives the impeller to rotate, resulting in centrifugal effect and negative pressure. On the one hand, it absorbs enough air to mix with the pulp, on the other hand, mixes the mixed pulp with additives, and thinens the foam, and the minerals combine with the foam and float on the surface of the pulp to form a mineralized foam. The liquid level can be adjusted with the height of the regulating plate, and the useful foam can be scraped away with the scraper.


Application

Application: Metal ore such as gold, silver, copper, Lead (Pb), Zinc (Zn), Tin, Nickel (Ni) and so on, non-metal mineral, raw body and materials of chemical industry.

.jpg

Features

  • Auto-control device of slurry volume contributes to flexible operating;
  • Backward type Impeller with upper and lower leaves, the upper blade generates upper circulation the lower blade generates lower circulation;
  • Mechanical stirring, self- air suction, self-slurry suction.

2_

Techinical parameters

Model Volume (m3) Cell size (mm) Impeller Dia. (mm) Impeller speed (r/min) Capacity (m3/min) Power (kw) Singe cell weight (kg)
XJ-3 0.35 700× 700× 700 300 483 0.18-0.4 2.2/0.55 430
XJ-6 0.62 820× 900× 850 350 400 0.3-0.9 3/1.1 755
XJ-11 1.1 1100× 1100× 1000 500 330 0.6-1.6 5.5/1.1 1416
XJ-28 2.8 1750× 1600× 1100 600 280 1.5-3.5 11/1.1 2113
XJ-58 5.8 2200× 2200× 1200 750 240 3--7 22/1.5 3400
SF-0.37 0.37 700× 700× 750 296 386 0.2-0.4 1.5/0.55 468
SF-0.7 0.7 820× 900× 950 350 400 0.3-0.9 3/1.1 805
SF-1.2 1.2 1100× 1100× 1100 450 312 0.6-1.2 5.5/1.1 1373
SF-2.8 2.8 1700× 1600× 1150 550 268 1.5-3.5 11/1.5 2138
SF-4 4 1850× 2050× 1200 650 220 2--4 15/1.5 2582
SF-8 8 2200× 2900× 1400 760 191 4--8 30/1.5 4129
SF-10 10 2200× 2900× 1700 760 191 5--10 30/1.5 4486
SF-16 16 2850× 3800× 1700 760 191 5--16 30× 2/1.5 8320
SF-20 20 2850× 3800× 2000 760 191 5--20 30× 2/1.5 9828
