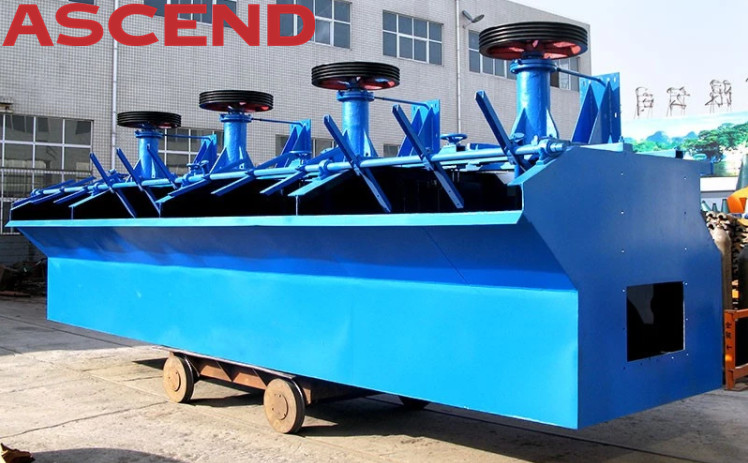

Dissolved Air Flotation Machine 380v For Mineral Processing Plant
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Material||Metal ,ores||Name||Mining Crusher Machine|
Dissolved air Flotation Machine,
Flotation Machine for Mineral Processing Plant,
Mineral Flotation Plant 380v
Flotation machineis the equipment to complete the flotation process, which is also called flotation cell. It is widely used for the rough, fine and reverse flotation operations of copper, lead, zinc, nickel, molybdenum and other non-ferrous metal, ferrous metal and nonmetal minerals. The types of flotation machine mainly include mechanical agitation flotation machine and froth agitation flotation machine.
The impeller is rotated by V-belt of motor and produces negative pressure by centrifugal function. Enough air is sucked to mix slurry, and slurry mixes drug at the same time. Mineral sticks on bubble completely and floats on the surface of slurry to form mineralized bubble. Useful bubble is scraped out by adjusting flash-board height and controlling liquid surface.
Application: Metal ore such as gold, silver, copper, Lead (Pb), Zinc (Zn), Tin, Nickel (Ni) and so on, non-metal mineral, raw body and materials of chemical industry.
|Model||Volume (m3)||Cell size (mm)||Impeller Dia. (mm)||Impeller speed (r/min)||Capacity (m3/min)||Power (kw)||Singe cell weight (kg)|
|XJ-3||0.35||700× 700× 700||300||483||0.18-0.4||2.2/0.55||430|
|XJ-6||0.62||820× 900× 850||350||400||0.3-0.9||3/1.1||755|
|XJ-11||1.1||1100× 1100× 1000||500||330||0.6-1.6||5.5/1.1||1416|
|XJ-28||2.8||1750× 1600× 1100||600||280||1.5-3.5||11/1.1||2113|
|XJ-58||5.8||2200× 2200× 1200||750||240||3--7||22/1.5||3400|
|SF-0.37||0.37||700× 700× 750||296||386||0.2-0.4||1.5/0.55||468|
|SF-0.7||0.7||820× 900× 950||350||400||0.3-0.9||3/1.1||805|
|SF-1.2||1.2||1100× 1100× 1100||450||312||0.6-1.2||5.5/1.1||1373|
|SF-2.8||2.8||1700× 1600× 1150||550||268||1.5-3.5||11/1.5||2138|
|SF-4||4||1850× 2050× 1200||650||220||2--4||15/1.5||2582|
|SF-8||8||2200× 2900× 1400||760||191||4--8||30/1.5||4129|
|SF-10||10||2200× 2900× 1700||760||191||5--10||30/1.5||4486|
|SF-16||16||2850× 3800× 1700||760||191||5--16||30× 2/1.5||8320|
|SF-20||20||2850× 3800× 2000||760||191||5--20||30× 2/1.5||9828|
