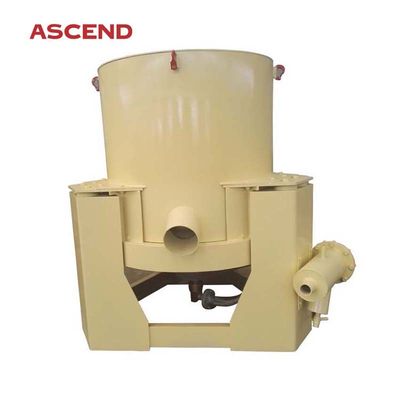

Gold copper ore Centrifugal Gold centrifuge Separator Machine

Place of Origin China
Brand Name Ascend
Certification ISSO9001
Model Number STL30 STL60 STL80 STL100
Minimum Order Quantity 1 set
Price USD 3000-5000 Per set
Packaging Details wooden box in container
Delivery Time 7 working days
Payment Terms T/T, Western Union, L/C
Supply Ability 20 set per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Name Knelson Gold Centrifugal Concentrator Application Gold Gravity Separation Machine
Voltage 380v Industry Gold Mining Ore
Quality Guarantee One Year Type Gravity Separator,gold Ore Processing Equipment,gold Concentrator
Other Name Gold Centrifuge Production Capacity 98%
Dimension(l*w*h) Different Model Installation Engineer Guide
High Light

Gold Tantalum gold separator machine


Tantalum gravity separation machine


98% Gold Separator Machine

Leave a Message
Product Description


Gold  copper ore Centrifugal Gold centrifuge Separator Machine 0

High recovery rate gold knelson centrifugal concentrator


The Gold Centrifugal Concentrator is a brilliant gravity separation equipment widely used in the mining industry, especially for the placer gold, fine grain rock gold, and other precious minerals.
Modes】(1) Timed automatic discharge centrifuge, customizable, higher efficiency, higher price.
(2) Non-automatic discharge centrifuge, common use, in stock, manually stop working and take out the gold concentrate after few hours of operation. We have it both in industry type and laboratory type small centrifuge.
(3) Customized fixed centrifugal concentrator and mobile concentrator (mobile gold wash plant usually equipped with portable trommel screen, portable gold centrifuge, portable gold shaker table, etc).
Brand】 Knelson Concentrator,Ascend gold concentrator is the best replacement for Knelson Concentrator with affordable price, complete models, wide capacity range.
Related product
Feeding: slurry pump or gravity flow by the height difference
After gold centrifuge: tailing ⇒ sluice box; concentrate ⇒ shaker table or amalgamator
Gold Concentrator VS Jig Concentrator】 Centrifugal gold concentrator is easier debugging, and gold safer. It only can take out the gold concentrate after 4-6 hours of continuous work.

Gold  copper ore Centrifugal Gold centrifuge Separator Machine 1


Working principle

The rotor of the centrifuge rotates at a high speed. Under the action of centrifugal force, heavy minerals are stacking on the inner plate groove of the rotor cone, and the light ore particles are gradually discharged. After about 4-6 hours of operation, stop feeding, and turn on the backwater to wash out the gold concentrate.
Gold centrifugal concentrator is useful in the gold recovery in all ranges of particle size. It is most especially useful for recovering fine gold which gets lost during the operation of gravity concentrators. The application has shown that the recovery of gold can be very high, as much as 99% and the concentration ratio is up to 1,000 times. In the recovery of natural gold in lode ore that has a particle size of -0.074mm, the gold recovered is about 98%, for recovery of gold in particle size of 0.004mm, it is up to 97%.

Gold  copper ore Centrifugal Gold centrifuge Separator Machine 2

Product pictures

(1)  Gold centrifugal concentrator has a high recovery and high concentrating ratio. (2)Center discharge design that enables fast and secure concentrate removal. (3) Eco-friendly ( needs no reagents or chemical additives). (4) Low energy, low water consumption. (5) Durable wear parts with easy maintenance. (6) Fast returns on investment, usually less than 6 months.
The gold centrifugal concentrator used in combination with the vibrating chute, gold shaker table, gold wash plant and other gold extraction equipment to increase the fine gold recovery rate.


Gold  copper ore Centrifugal Gold centrifuge Separator Machine 3


Customer working site

The centrifugal usually works together with the  gold grinding mills like ball mill, wet pan mill or chillean mill to be fed with gold ore slurry and select the free gold or big size gold, the remaining gold will be discharged and goes to the shaking table or gold sluice so that the tailing gold can be reselected.


Gold  copper ore Centrifugal Gold centrifuge Separator Machine 4



Model Capacity
Feed size
Slurry density
Backlash water quantity
Concentrates capacity
Cone rotation speed
Pressure water required
STL-30 3-5 3 0-4 0-50 6-8 10-20 600 0.05 0.5
STL-60 15-30 7.5 0-5 0-50 15-30 30-40 460 0.16 1.3
STL-80 40-60 11 0-6 0-50 25-35 60-70 400 0.18 1.8
STL-100 80-100 18.5 0-6 0-50 50-70 70-80 360 0.2 2.8

Package and delivery

We can offer various ways of package, dust-free wooden cases, steel plate cases, or as the clients' request. Most of the time, the equipment will be loaded to the containers in the factory. our workers make sure all equipment are steady and fixed before close the door of the container, there will be no damage during transporation and shipment. Following pictures are typical package, reinforcement in the container, and delivery from us.
