Knelson Centrifugal Concentrator STL30 STL40 Ore Dressing Equipment
Place of Origin | China |
---|---|
Brand Name | Ascend |
Certification | ISSO9001 |
Model Number | STL30 STL60 STL80 STL100 |
Document | Product Brochure PDF |
Minimum Order Quantity | 1 set |
Price | USD 3000-5000 Per set |
Packaging Details | wooden box in container |
Delivery Time | 7 working days |
Payment Terms | T/T, Western Union, L/C |
Supply Ability | 20 set per month |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xName | Knelson Gold Centrifugal Concentrator | Application | Gold Gravity Separation |
---|---|---|---|
Voltage | 380v Or 220v | Industry | Gold Mining |
Type | Gravity Separator,gold Ore Processing Equipment,gold Concentrator | Inner Bowl Material | Stainless Steel |
Warranty | 1 Year | Recovery Rate | 95% |
Recovered Material | Gold Concentrate | After-sales Service Provided | Engineers Available To Service Machinery Overseas |
Highlight | alluvial placer gold knelson centrifugal concentrator,STL30 mineral processing machine,STL40 Ore Dressing Equipment |
High efficiency gold knelson centrifugal concentrator
The automatic Discharge Centrifugal Gold Concentrator is also call Knelson gold centrifugal concentrator, or gold centrifuge. It is mainly used to collect the free gold particles from the placer alluvial gold sand or rein gold slurry ground by the grinding mill, like ball mill or wet pan mill.
For now, five models have been developed. Capacities range from laboratory scale to 150 tons of solids per hour. Beneficiation test shows that the recovery can be 99%,especially for recovering the natural lode ore gold,when 65% Grind size are smaller than 0.074 mm ,the recovery is expected up to 98%.For 0.004 mm size natural gold, the recovery is 97%.
Working principle
The raw material containing gold sand and water is fed into the concentrator, and the concentrator bowl is rotating with the the powder of the motor. The raw material is spalshed back and forth by the eccentric power from the bowl liner. Meanwhile the backlash water will be washing the raw material from the bottom of the bowl liner. Because of the gravity eccentric power, the heavy gold concentrate will be keeped and stay in the groove of the bowl liner, and the light sand will be discharged from the discharge mouth.

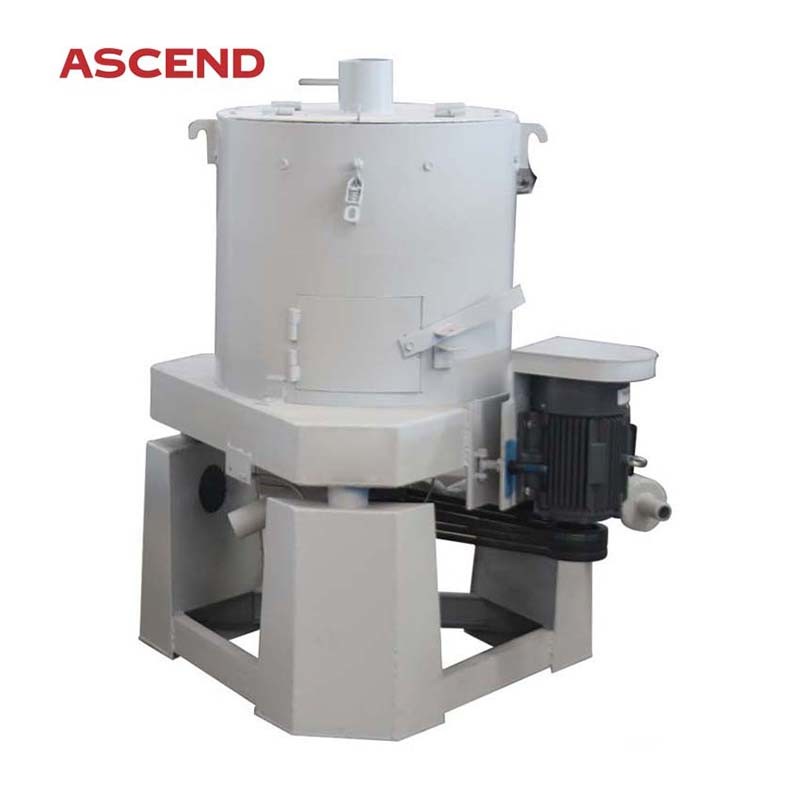

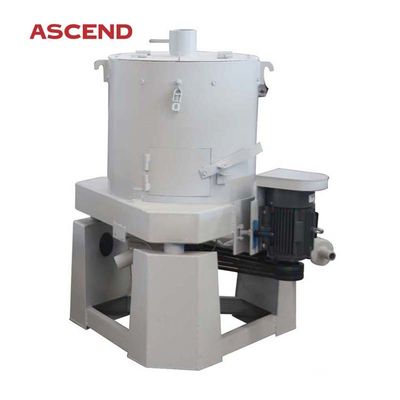

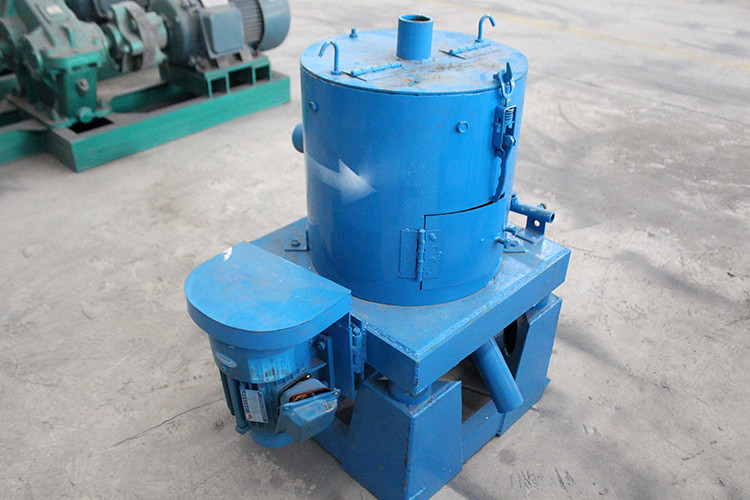

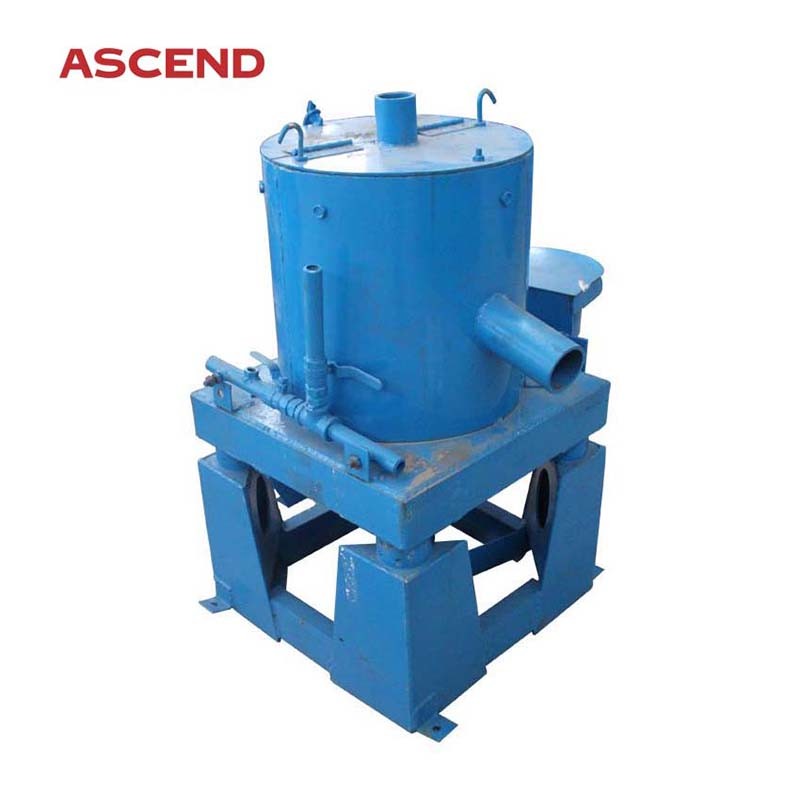

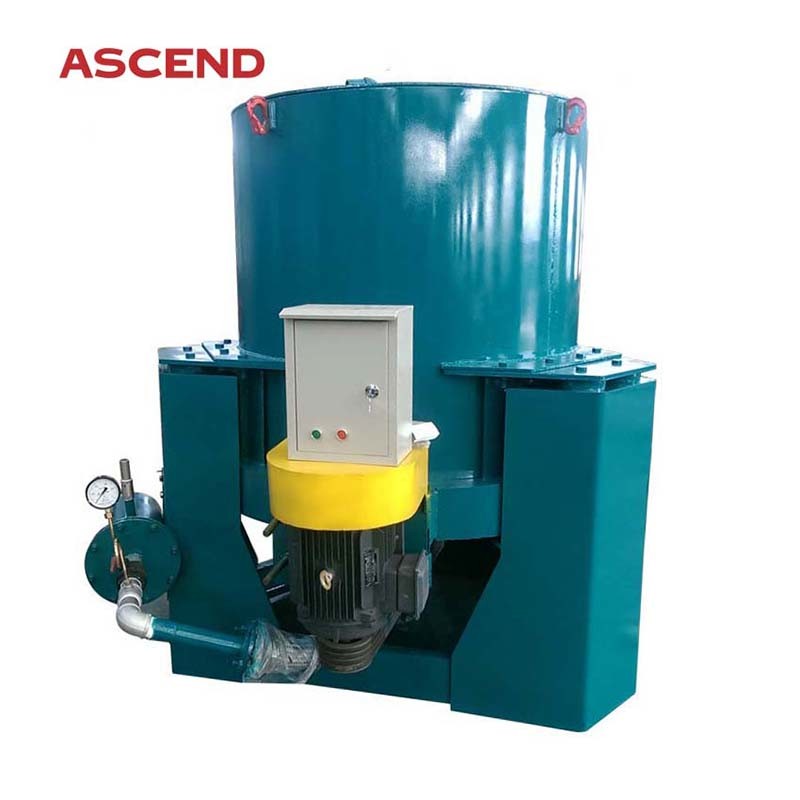

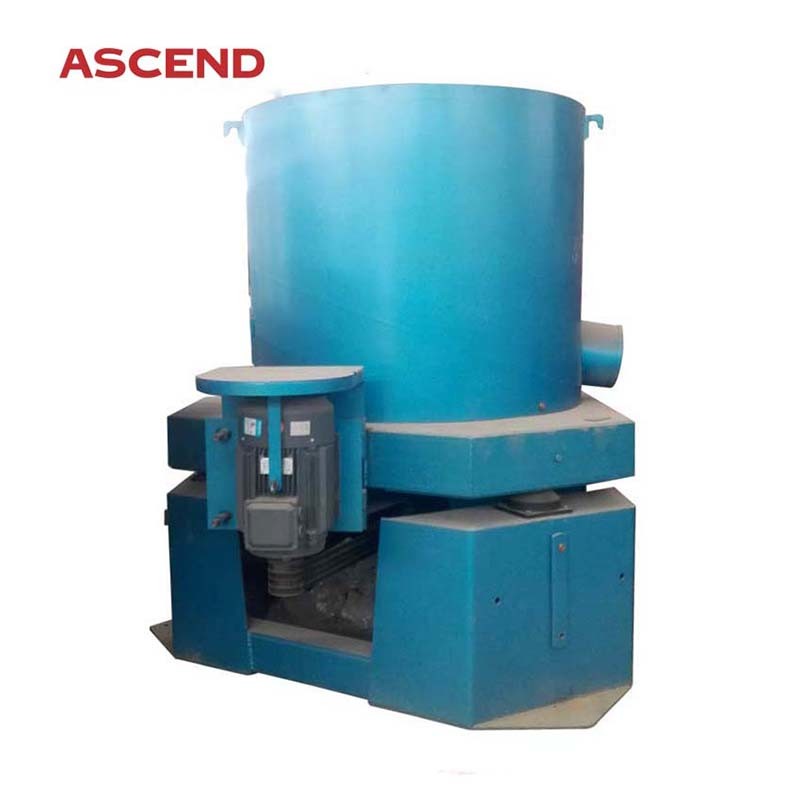

Product pictures
Features of gold centrifugal concentrator :
1. High concentrating ratio and high recovery
2. Total process automation, steady recovery performance
4. Environmentally friendly ( no chemical additives or reagents)
5. Low water and electricity requirements
6. Low production costs, durable wear parts, minimal maintenances requirements
7. Compact design requiring less space, easy merged into the existing mining processing
8. Quick payback on investment, typically lass than half year
Customer working site
The centrifugal usually works together with the gold grinding mills like ball mill, wet pan mill or chillean mill to be fed with gold ore slurry and select the free gold or big size gold, the remaining gold will be discharged and goes to the shaking table or gold sluice so that the tailing gold can be reselected.
Specifications
Model | Capacity (t/h) |
Power (kw) |
Feed size (mm) |
Slurry density (%) |
Backlash water quantity (kg/min) |
Concentrates capacity (kg/time) |
Cone rotation speed (r/min) |
Pressure water required (Mpa) |
Weight (t) |
STL-30 | 3-5 | 3 | 0-4 | 0-50 | 6-8 | 10-20 | 600 | 0.05 | 0.5 |
STL-60 | 15-30 | 7.5 | 0-5 | 0-50 | 15-30 | 30-40 | 460 | 0.16 | 1.3 |
STL-80 | 40-60 | 11 | 0-6 | 0-50 | 25-35 | 60-70 | 400 | 0.18 | 1.8 |
STL-100 | 80-100 | 18.5 | 0-6 | 0-50 | 50-70 | 70-80 | 360 | 0.2 | 2.8 |
Package and delivery
We can offer various ways of package, dust-free wooden cases, steel plate cases, or as the clients' request. Most of the time, the equipment will be loaded to the containers in the factory. our workers make sure all equipment are steady and fixed before close the door of the container, there will be no damage during transporation and shipment. Following pictures are typical package, reinforcement in the container, and delivery from us.
