gold ore Gravity Separator 6s Mining Shaker Table

Place of Origin China
Brand Name Ascend
Certification CE/ISSO9001
Model Number 6s
Minimum Order Quantity 1 set
Price 1000 to 1500 USD
Packaging Details Water and rust proof in wooden box or cotainer
Delivery Time 7-10 working days
Payment Terms T/T, Western Union, L/C
Supply Ability 100 set per month
Product Details
Name Mining Shaking Table, Shaker Table Application Mining Ore Separation
Type Gravity Separator Dimension 4.8x1.5x0.3
Material Casting Iron/steel Alloy Motor AC Motor
Warranty One Year
High Light

Barium specific gravity separatorr


Zircon Mining Shaker Table


steel alloy Mining Shaker Table

Leave a Message
Product Description

High Efficiency Gold Gravity Mining Shaking Table Separator Machine

Shaking table is also called shaker table, gravity table concentrator, and it is a gravity separation device for fine minerals . 6s Shaking table is effective in processing precious and base metal, rare metal and non-metallic minerals, widely used in separation of Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum etc.


Our shaking table can produce mob type, the coarse ore deck is designed for recovering particles size from 0.5 mm to 2 mm; the fine sand deck is designed for recovering fine particles in the range of 0.074 mm to 0.5 mm; the slime deck is designed for recovering super extremely fine particles in the range of 0.037 mm to 0.074 mm.

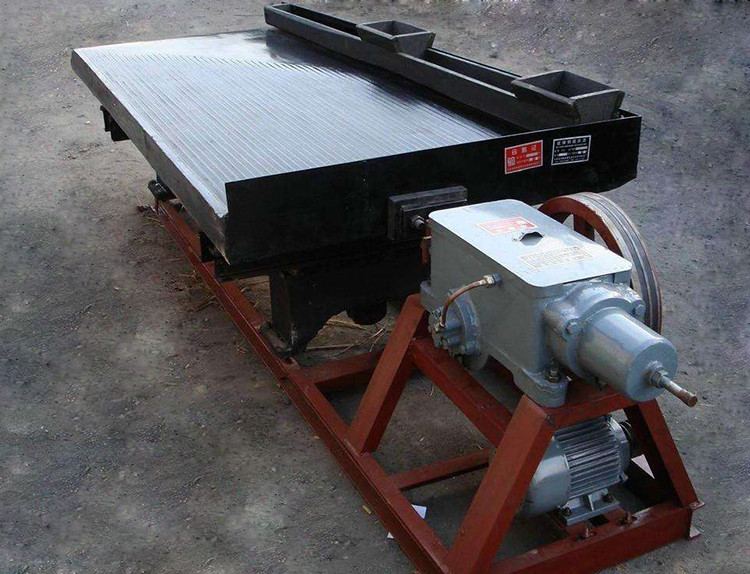

gold ore Gravity Separator 6s Mining Shaker Table 0

Working principle

The working principle of Shaking Table is to use the combined action of the specific gravity difference of sorted minerals, alternating movement of bed surface, and transverse oblique water flow and riffle (or notch groove),to allow loose layering of ores on the bed surface and fan-shaped zoning. Then different products can be produced.

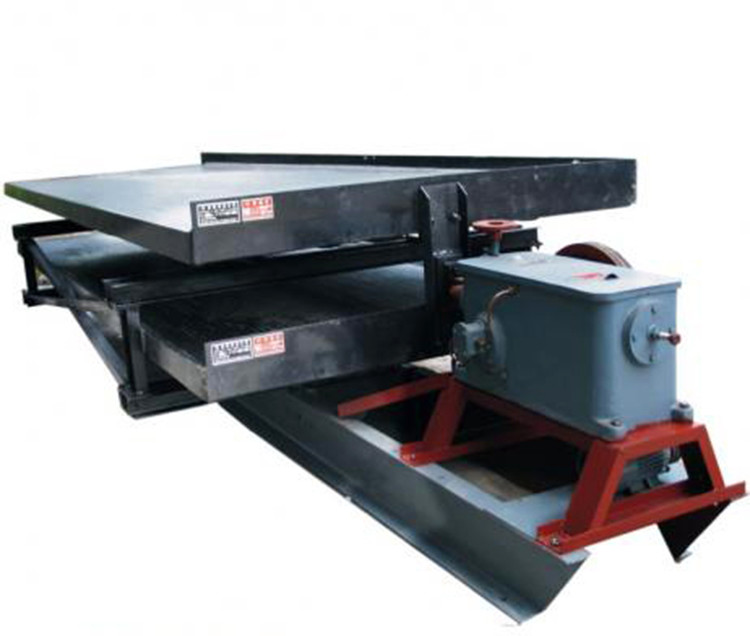

gold ore Gravity Separator 6s Mining Shaker Table 1


Main Features:

1.High recovery ratio

2.High concentration ratio

3.Easy installation

4.Simple operation

5.Deck constructed of fiber glass

6.Seven different decks to choose

7.Long working life

8.Adjustable stroke length and speed.

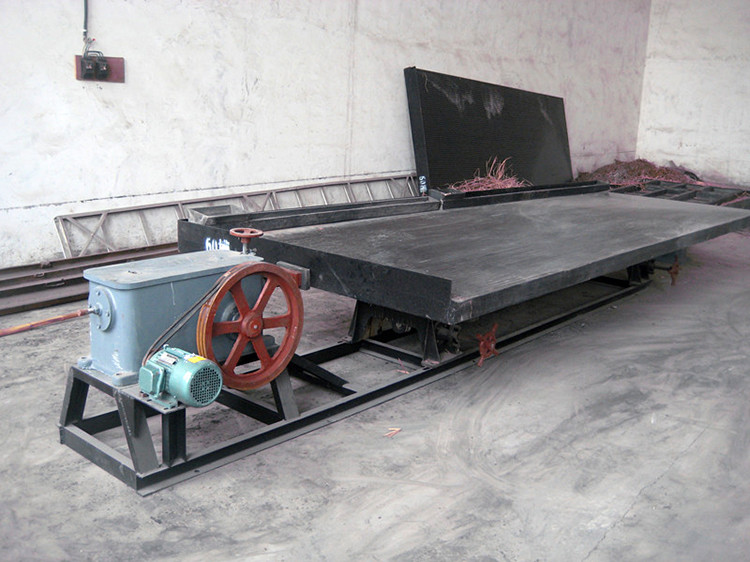

gold ore Gravity Separator 6s Mining Shaker Table 2

Product specifications


Model NO. 6S Table Size 4520*1850*156mm
Stroke 8-36mm Motor Power 1.1kw
Time/min 240-380 Dimension 5630*1850*900mm
Landscape 0-5° Table Weight 650kg
Material Feeding Size Mine Density Flushing Water Capacity(t/h)
Coarse Sand 2-0.5mm 10-30% 0.5-3.5t/h 1-2.5
Fine Sand 0.5-0.074mm 0.8-1.2
Ore Mud 0.0774-0.037mm 0.3-0.6

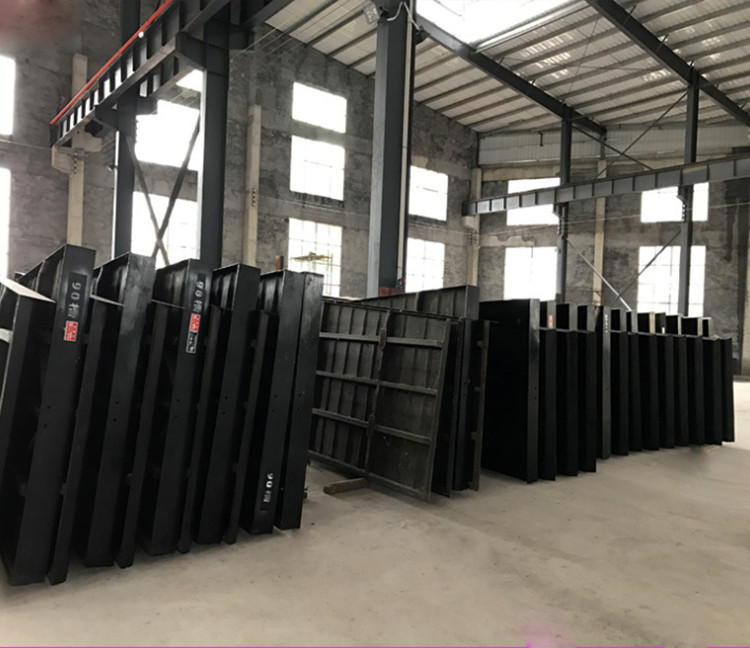

Customer working site

gold ore Gravity Separator 6s Mining Shaker Table 3gold ore Gravity Separator 6s Mining Shaker Table 4
