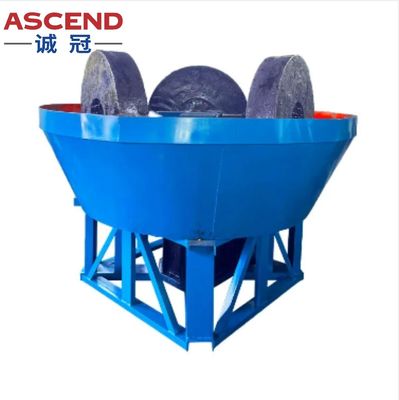

China Ascend gold powder making machine 1200 model 200 300 kg per hour final product size less than 0.1-0.178mm

  • China Ascend gold powder making machine 1200 model 200 300 kg per hour final product size less than 0.1-0.178mm
  • China Ascend gold powder making machine 1200 model 200 300 kg per hour final product size less than 0.1-0.178mm
  • China Ascend gold powder making machine 1200 model 200 300 kg per hour final product size less than 0.1-0.178mm
  • China Ascend gold powder making machine 1200 model 200 300 kg per hour final product size less than 0.1-0.178mm
  • China Ascend gold powder making machine 1200 model 200 300 kg per hour final product size less than 0.1-0.178mm
Place of Origin CHINA
Brand Name Ascend
Certification ISO9001
Model Number 1600 1500 1400 1200 1100 1000
Document Product Brochure PDF
Minimum Order Quantity 1 set
Price USD 3780-4680 set
Packaging Details Water and rust proof in wooden box or cotainer
Delivery Time 7-10 working days
Payment Terms T/T, Western Union
Supply Ability 20 set per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Wet Pan Mill Application Enery & Mining
Advantages Easy To Operate Color According To Customer's Requirement
Dimension Depend On Different Models
Leave a Message
Product Description



China Ascend gold powder making machine 1200 model 200 300 kg per hour final product size less than 0.1-0.178mm 0




                             Wet pan mill for gold mining with 300 400 kg per hour capacity in Africa





Wet pan mill is also called gold grinding mill machine. It is used for grinding gold ore, especially small rock stone with gold, which can grind into 100-150 mesh. Many customers from Africa would like to import wet pan mill because of low cost and high productivity. The most common way is to put mercury in the wet pan mill, and mix the gold particle with the mercury, which is called Amalgamation. Then the mixture of gold and mercury can be put into crucible for high temperature heating. During this process, the mercury is evaporated and pure gold is left in the crucible.The most important thing is that our customers can get pure gold directly after wet pan mill, which is suitable for people who want to begin small business.

Product picture



China Ascend gold powder making machine 1200 model 200 300 kg per hour final product size less than 0.1-0.178mm 1
China Ascend gold powder making machine 1200 model 200 300 kg per hour final product size less than 0.1-0.178mm 2


Working principle

Wet pan mill mainly through the raw material stirring, rolling, crushing, rolling repeatedly to achieve water balance, uniform ratio, low gas content, improve the molding rate and molding quality, through the machine grinding material molding products, with high density, good strength, no porosity ratio and other characteristics. High efficiency and energy saving, high output, the product is used for the recovery of tailings in the iron ore process, does not make the loss of mineral powder, so that effective resources can be fully utilized.

China Ascend gold powder making machine 1200 model 200 300 kg per hour final product size less than 0.1-0.178mm 3

Main Features of Wet Pan Mill


1. Less investment.



2. Easy to operation and maintenance.



3. High efficiency and saving power.



4. It can take the place of ball mill because all the materials that ball mill can handle, the wet mill machine can handle as well.



5. The Best price river gold widely used Sudan wet pan mill for gold is the ideal equipment for small and medium enterprises that are in the field of ore dressing.



6. The wet pan mill machine made by ASCEND, can offer the seal cover to reduce the air pollution.



Specification


ModelType
(mm)

Max feed
size (mm)

Capacity(t/h)

Power(kw)Weight(ton)
16001600x350x200x460＜251-2Y6L-3013.5
15001500x300x150x420＜250.8-1.5Y6L-2211.3
14001400x260x150x350＜250.5-0.8Y6L-18.58.5
12001200x180x120x250＜250.25-0.5Y6L-7.55.5
11001100x160x120x250＜250.15-0.25Y6L-5.54.5
10001000x180x120x250＜250.15-0.2Y6L-5.54.3



Wet pan mill maintenance method

1. Bearing the full load of the machine, so good lubrication has a great relationship to the bearing life, it directly affects the service life and operation efficiency of the machine, so the injection of lubricating oil must be clean, the seal must be good, the main lubrication of the machine: rotating bearings, roll bearings, all gears, active bearings, sliding plane.

2. The newly installed tire is easy to loose and must be checked frequently.

3. Pay attention to the work of each part of the machine is normal.

4. Pay attention to check the wear degree of easily worn parts, and pay attention to replacing worn parts at any time.

5. The bottom plane of the moving device, dust and other things should be removed so that the machine meets the material that can not be broken when the moving bearing can not move on the bottom frame, resulting in serious accidents.

6. Bearing oil temperature rise, should immediately stop to check the cause to be eliminated.

7. If there is impact sound when the rotating gear is running, it should be stopped immediately for inspection and eliminated.

Spare Parts

China Ascend gold powder making machine 1200 model 200 300 kg per hour final product size less than 0.1-0.178mm 4

Working site
China Ascend gold powder making machine 1200 model 200 300 kg per hour final product size less than 0.1-0.178mm 5
China Ascend gold powder making machine 1200 model 200 300 kg per hour final product size less than 0.1-0.178mm 6

We also supply
China Ascend gold powder making machine 1200 model 200 300 kg per hour final product size less than 0.1-0.178mm 7
China Ascend gold powder making machine 1200 model 200 300 kg per hour final product size less than 0.1-0.178mm 8
China Ascend gold powder making machine 1200 model 200 300 kg per hour final product size less than 0.1-0.178mm 9

Contact us
China Ascend gold powder making machine 1200 model 200 300 kg per hour final product size less than 0.1-0.178mm 10
