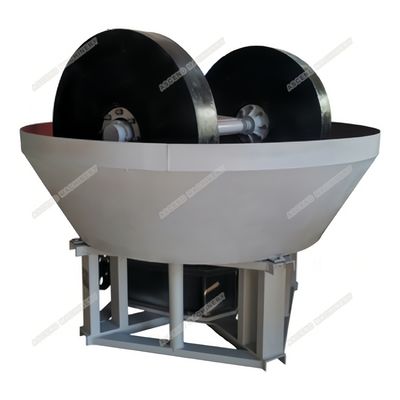

Gold Process Plant Sudan Gold Washing Pan Round Mill Machine
| Place of Origin | China |
|---|---|
| Brand Name | ASCEND |
| Certification | CE |
| Model Number | 1 Set |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 1 SET |
| Price | 4000-5000 USD Per Set |
| Packaging Details | wooden box in container |
| Delivery Time | 10 Days |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 100 set per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Wet Pan Mill | Feeding Size | Requiremend |
|---|---|---|---|
| Advantages | High Productivity | Application | Metal Materials |
| Grinding Material | 200+ Materials | Keywords | Wet Pan Grinding Mill |
| Motor Type | AC Motor | Warranty | 1 Year |
Product Description
Product Description
Wet pan mill used in the small and medium size concentrate factory. It is widely applied to the grinding and benefication of all kinds of metal minerals, non-metal minerals, rare metal and other materials. Such as gold, silver, lead, zinc, molybdenum, iron, copper, antimony, tungsten, tin and so on.
Working Principle
When it works, the motor drives the speed reducer. Driven by the reducer, the vertical shaft drives the horizontal shaft above, and then the pull rod at both ends of the horizontal shaft drives the roller to rotate in the horizontal direction, and the roller plate is fixed. Add a certain proportion of ore materials and mercury, in the mill is subjected to extrusion pressure from the roller's own weight, the roller rotation and the huge friction generated by the roller plate, after repeated extrusion, kneading, grinding, is completely crushed.
Main Features of Wet Pan Mill
1.As an excellent equipment to work replacing the ball mill.
2.The Gold Grinding Machine (wet pan mill) has been very popular and widely applied by Small and Medium Enterprises .
3. its small investment, high yield, low production cost, low power, and good benefits.China Gold Ore Mining Separation Grinding Mill Machine
Spare parts
Technical parameters
| Model | Type(mm) | Max feed size(mm) | Capacity(t/h) | Power(Kw) | Weight(ton) |
| 1600 | 1600x350x200x460 | <25 | 1-2 | Y6L-30 | 13.5 |
| 1500 | 1500x300x150x420 | <25 | 0.8-1.5 | Y6L-22 | 11.3 |
| 1400 | 1400x260x150x350 | <25 | 0.5-0.8 | Y6L-18.5 | 8.5 |
| 1200 | 1200x180x120x250 | <25 | 0.25-0.5 | Y6L-7.5 | 5.5 |
| 1100 | 1100x160x120x250 | <25 | 0.15-0.25 | Y6L-5.5 | 4.5 |
| 1000 | 1000x180x120x250 | <25 | 0.15-0.2 | Y6L-5.5 | 4.3 |
Packaging and shipping
You May Also Like
Ball Mill Jaw Crusher Hammer Crusher
2-Roller Crusher Cone Crusher Impact Crusher
Company information
- Ascendmachinery expands its business in more than 160 countries and regions
- Henan Ascend Machinery & Equipment Co., Ltd. was established in 2005 and it is located in the high-tech zone of Zhengzhou City, Henan Province. As a technology driven mining equipment company, it is committed to the R&D, production, sales and after-sales service of mining machinery and equipment.
- The company's main products are crushers, grinding mill equipment, mineral beneficiation equipment, rotary dryer and crusher & grinding mill spare parts. In addition to the Chinese domestic market.
FAQ
Q1: Are you trading company or manufacturer?
A: We are factory.
Q2: How long is your delivery time?
A: Generally it is 7-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
Q3: What is your payment method?
A: 30% of total price should be paid by T/T as down payment; 70% balance payment should be paid by T/T before delivery.
Q4: What Information should customers give us, So that we can be able to provide you suitable quotation and service.
What minerals are you separating?
What's the maximum size of your raw minerals?
How much capacity do you need per hour for your project?
Q5: How long is the warrenty of your equipments? Does your company supply the spare parts?
A: The warranty period of crusher equipments is one year. and we will supply the spare parts for you at lowest cost.
A: The warranty period of crusher equipments is one year. and we will supply the spare parts for you at lowest cost.
Q6: If I need the complete crushing plant can you help us to build it?
A: Yes, we can help you combine a complete crushing line and give you related professional advices as long as you need. We had already build many mining projects in China & Overseas.
Q7:what's your motor brand?what bearing do you use?
For Motor-China top brand, also can use Siemens as per request .
For Bearing China top brand ZWZ, also can use SKF/NSK etc as per request
