Product Details
Features Large Crushing Ratio, Uniform Particle Size, Adjustable Discharging Size Safety High
Keyword Fine Stone Crusher Delivery Fast
Voltage 220V/380V/As Cuntomer's Request Structure Simple And Compact Structure, Strong And Durable
Function Stone Crushing Advantages High Efficiency, Low Energy Consumption, Low Maintenance Cost
Installation Under Engineer's Guide
Highlight

100-200mesh powder making machine

,

Laboratory powder making machine

,

Laboratory powder making machine
Leave a Message
Product Description

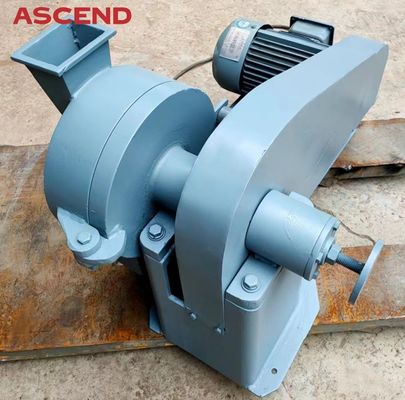

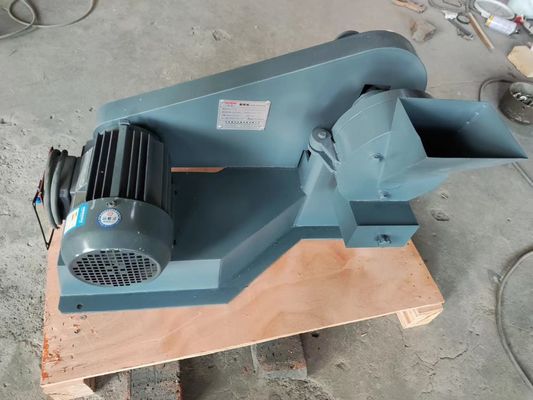

100-200mesh laboratory powder making machine disc grinding mill pulverizer



This disc crusher has the advantages of compact structure, good sealing performance, convenient cleaning, high strength, small volume, light weight, and is equipped with a numerical adjustment mechanism. It can be used for laboratories in the departments of geology, metallurgy, energy, building materials, chemical industry, etc., to finely crush all kinds of medium hardness ores.

Laboratory Powder Making Machine Model FT-150 Disc Grinding Mill Pulverizer Output Size 100-200mesh 0

Laboratory Powder Making Machine Model FT-150 Disc Grinding Mill Pulverizer Output Size 100-200mesh 1

Laboratory Powder Making Machine Model FT-150 Disc Grinding Mill Pulverizer Output Size 100-200mesh 2

Working Principle
This machine is mainly composed of body, base, spindle,moving grinding disc, fixed grinding disc, end cover and hopper. Through the triangular belt, the power is transferred to the belt pulley to drive the spindle to rotate, so that the moving grinding disc keeps the relative movement of the grinding disc,so as to crush the sample. The output particle size can be controlled by adjusting the clearance of the grinding disc, such as the size of handwheel and spindle. The body is installed on the base, and
its driving part is composed of the driving shaft,bearing, moving grinding disc, pulley, the end cover of the workroom, adjusting shaft, fixed grinding disc, hand wheel and feeding port.



Specification

Model
FT-150
FT-175
FT-200
FT-250
FT-300
Disc dia.(mm)
150
175
200
250
300
Feed size(mm)
≤4
≤6
≤8
≤8
≤10

Discharge size(mesh)
80-200
80-200
80-200
80-200
80-200

Capacity(kg/h)
6-20
10-30
30-60
60-80
80-100

Power(KW)
1.5
1.5
2.2
3
3
Voltage
380V50HZ
380V50Hz
380V 50Hz
380V50Hz

380V 50Hz
Main shaft speed(r/m)
800
800
800
800
650



Applicable materials

Laboratory Powder Making Machine Model FT-150 Disc Grinding Mill Pulverizer Output Size 100-200mesh 3



Feature
1. Use friction for quick grinding.
2.The working noise is small and the sample cleaning is convenient.
3.Fully sealed design, no dust pollution, in line with environmental protection requirements.
4.Just put it on the level ground, it can work normally, no need to fix the foundation.



Laboratory Powder Making Machine Model FT-150 Disc Grinding Mill Pulverizer Output Size 100-200mesh 4

Laboratory Powder Making Machine Model FT-150 Disc Grinding Mill Pulverizer Output Size 100-200mesh 5

Laboratory Powder Making Machine Model FT-150 Disc Grinding Mill Pulverizer Output Size 100-200mesh 6
