10-20tph Portable Small Mobile Mini Stone Diesel Engine Jaw Crusher Crushing Plant
| Place of Origin | China |
|---|---|
| Brand Name | ASCEND |
| Certification | CE |
| Model Number | PE200x300 PE220x350 PE250x400 PE400x600 |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 1 Set |
| Price | USD 4800-38000 Per set |
| Packaging Details | Water and rust proof in wooden box or container |
| Delivery Time | 10 working days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 10 set per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Jaw Crusher | Application | Chemical Industry And Construction |
|---|---|---|---|
| Warranty | One Year | Spare Parts Supply | We Are Big Factory |
| Capacity | 10-200 TPH | Weight | 0.6t-4.8t |
| Certification | CE | Keyword | Fine Stone Crusher |
Product Description

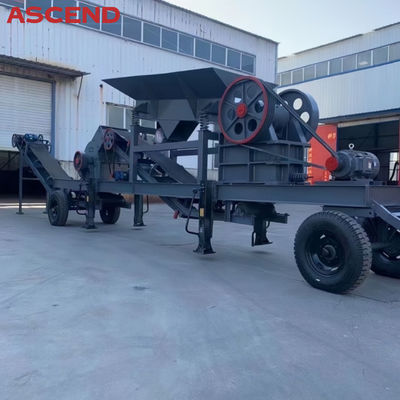

10-20tph Portable Small Mobile Mini Stone Diesel Engine Jaw Crusher Crushing Plant
Product Description
Mobile Jaw crusher is a kind of stone crusher equipment composed of a jaw crusher and a mobile crusher. The sales volume in the market is very high. The on-site crushing and processing of materials have low cost and high income, so it is favored by processing plants. The following is a brief description of the structure, performance advantages, and price of this jaw mobile crushing station to provide a basis for consumers to choose.
Performance Characteristics
The main structure of the mobile jaw crusher includes the frame assembly, main engine, power system, hydraulic and electronic control system, etc. Users can also configure screening machines, feeders, conveyors, etc. according to production requirements. The integration is relatively strong, and each configuration of components is quite advanced and reasonable, the degree of automation has increased by more than 20%, and the operation and maintenance are much more convenient than traditional crushing stations.
Detailed Images
Portable crushers or portable crushing plants are made to process rocks ,concrete and other hard stone materials.
The small mobile crushing plant equipped with crushers, vibrating feeders, and vibrating screens, it shows high quality and reliable performance.
Materials are delivered by belt conveyors, which is simple to operate and easy to maintain. The machine is featured by low investment and high production efficiency.
Materials are delivered by belt conveyors, which is simple to operate and easy to maintain. The machine is featured by low investment and high production efficiency.
Spare Parts

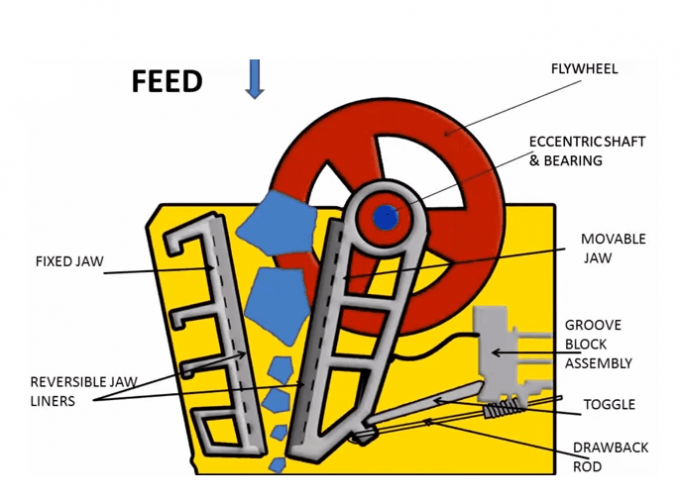

Working Principle
According to the requirements of different crushing processes, it can be divided into "first crushing and then screening" or "first screening and then crushing" process. It can also be combined into coarse, medium and fine screening systems according to actual needs.
Specifications
| Model | Feed openning size(mm) | Max feeding size(mm) | Discharge range(mm) |
Capacity (t/h) |
Power (kw) | Weight (t) |
| PE150x250 | 150x250 | 125 | 10-40 | 1-3 | 5.5 | 0.7 |
| PE250x400 | 250x400 | 210 | 20-60 | 10-20 | 15 | 2.8 |
| PE400x600 | 400x600 | 340 | 40-100 | 30-50 | 30 | 7 |
| PE500x750 | 500x750 | 425 | 50-180 | 35-80 | 55 | 12 |
| PE600x900 | 600x900 | 500 | 50-180 | 80-150 | 75 | 17 |
| PE750x1060 | 750x1060 | 630 | 80-140 | 110-320 | 90 | 31 |
| PE900x1200 | 900x1200 | 750 | 95-165 | 220-350 | 160 | 52 |
| PE1200x1500 | 1200x1500 | 1020 | 150-350 | 400-800 | 220 | 100 |
| PE150x750 | 150x750 | 120 | 18-48 | 10-25 | 15 | 3.8 |
| PE250x750 | 250x750 | 210 | 15-60 | 15-35 | 30 | 6.5 |
| PE250x1000 | 250x1000 | 210 | 15-60 | 16-52 | 37 | 7 |
| PE250x1200 | 250x1200 | 210 | 15-60 | 20-60 | 45 | 9.7 |
Packing&Delivery
Working Sites
Company Profile
- Henan Ascend Machinery & Equipment Co., Ltd. was established in 2005 and it is located in the high-tech zone of Zhengzhou City, Henan Province. As a technology driven mining equipment company, it is committed to the R&D, production, sales and after-sales service of mining machinery and equipment.
- The company's main products include crushers, grinding equipment, ore beneficiation equipment, rotary dryers, and components of crushers and grinding mills. In addition to the domestic market in China, Ascend Machinery also expands its business to more than 160 countries and regions.
Our Workshop
FAQ
Q1. Are you factory or trading company?
We are factory specialized in manufacturing stone crushers, grinding mills, beneficiation equipments and other mining equipments. Our office and factories are based in Zhengzhou, China. Because we are factory, so we can guarantee the machine quality and we can give you very competitive factory price without extra agent cost.
Q2. What about after-sale service?
12 months warranty for all kinds of products; and you will get our 7*24h online service.
Q3. What about the payment method?
T/T, Paypal, Western Union, L/C is available.
Q4. To which country your products have been exported before?
In Africa, We have exported to Sudan, Kenya, Zambia, Ethiopia, Zimbabwe, Guinea, Nigeria and so on. We also exported South Africa, Chile, Peru, Ecuador, New Zealand, America, Austrilia more than 160 countries. Our equipment and service have won very high reputation in these countries.
Q5. How about the wear parts supply?
We offer wear parts to our customer with our most favorable price. If there are problems you could not handle, we will send our technicians to your place.
Q6. How will you help the customer install the equipment?
We will send our senior engineer to your place to guide the installation and commissioning.
