Stone Mining Crusher Machine
| Place of Origin | China |
|---|---|
| Brand Name | Ascend |
| Certification | CE/ISSO9001 |
| Model Number | PC400x300 PC600x400 PC800x600 |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 1 set |
| Price | USD 3500-6000 Per set |
| Packaging Details | wooden box and container |
| Delivery Time | 10 working days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 20 set per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Hammer Crusher | Application | Stone Crushing |
|---|---|---|---|
| Hammer Material | Mn13Cr2 | Color | Customized |
| Warranty | One Year | Capacity(t/h) | 20-800 TPH |
| Motor Type | AC Motor | Type | Hammer Crusher |
| Condition | New | ||
| Highlight | PC400x300 double roll crusher,PC400x300 stone hammer crusher |
||
Product Description

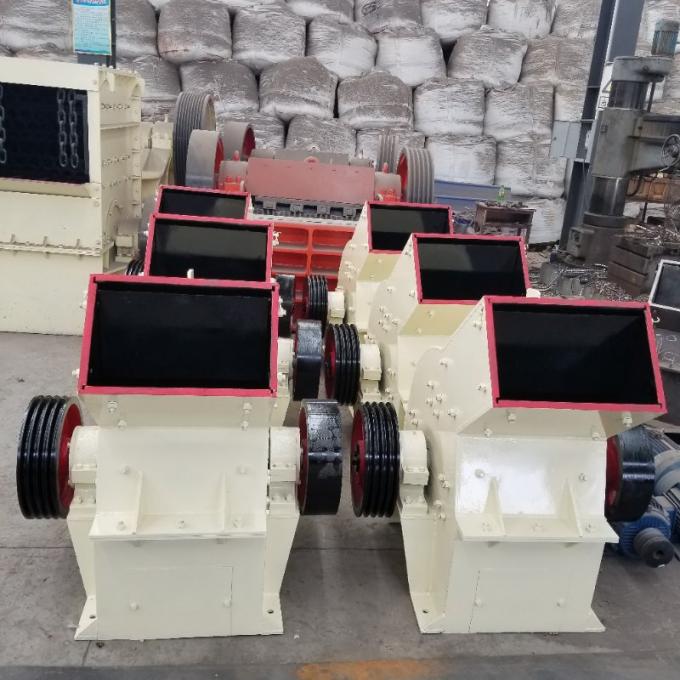

stone hammer crusher mill machine
The hammer crusher(hammer mill)crushes by the collisions between high-speed hammer and materials,and the hammer crusher features are its simple structure,high reduction ratio,high efficiency,etc.The PC series hammer crusher were developed for both dry and wet crushing of brittle,medium-hard materials for the mining,cement ,coal,metallurgic,construction material,road building and petroleum&chemical industries.The material discharge size can be adjusted by change the gap of the gridscreen,to meet the different needs of different users.Heavy hammer crusher can be directly used for material crushing without initial crushing.
Working priciple

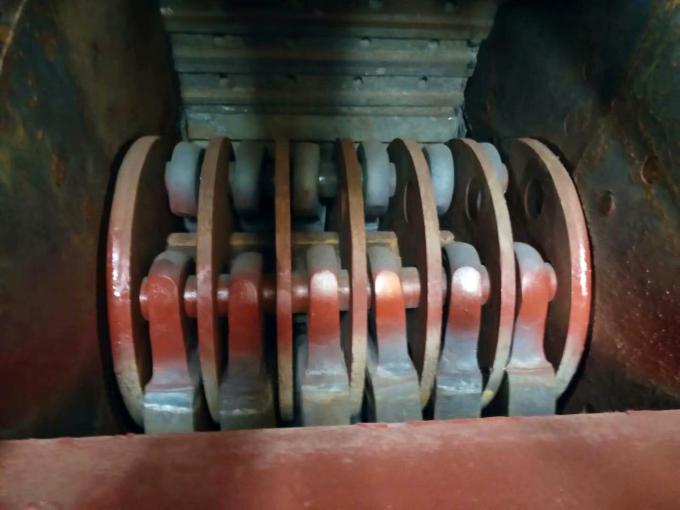

In the hammer crusher mill machine,the motor drives the rotor to rotate at a high speed through the belt,and on the rotor there are series of hammers.when the material get into the working area of hammers,the rotating hammers with high rotation speed are crushing the material,the crushed product meeting the required size can be discharged by the outlet and become the final prodcuts,the large size prdocut are brought back to the crushing area by the hammers for being re-crushed until they reached the required size.
Product advantages
1. Inlet large, high crushing chamber adapted material hardness, block degree, the product
powder less
2. Materials vacant, broken power consumption
3. New hammer, impact force
4. Hammer shaft mounted adjustable, hammer, long life
5. Grid size is adjustable, controllable particle size, particle shape is good
6. Chassis can be flipped, maintenance more convenient
7. Square shank bolts, impact resistance, wear and tear
8. Compact, machine rigidity
9. Fight structure, handling, easy to install
10. The machine shocks, counter, strike (rock stone) fragmentation functions in a high production efficiency, mechanical abrasion is small, the overall efficiency significantly, widely used in artificial sand

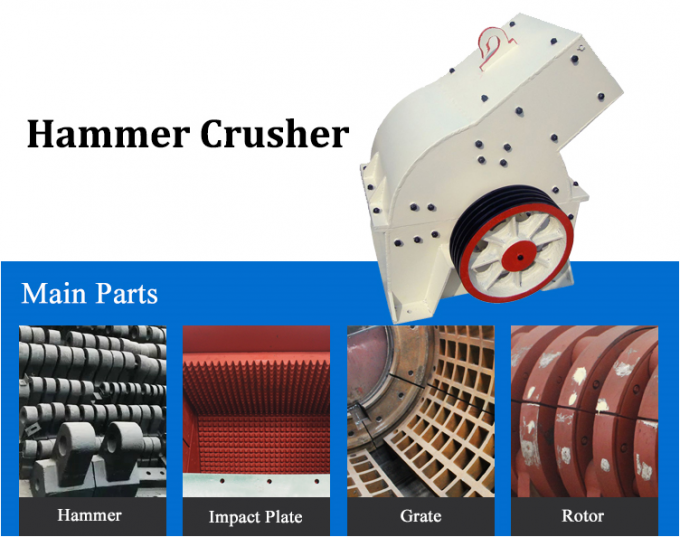

Hammer crusher parts
Hammer crusher specification
| Model | Rotor speed (r/min) | Feed opening size (mm) | Max feeding size (mm) | Discharghing size (mm) | Capacity (t/h) | Motor power (kw) | Weight (t) | Overall dimensions L×W×H (mm) |
| PC300 × 200 | 1500 | 100*200 | 80 | 0-10 | 2-5 | 5.5 | 0.5 | 700 × 750 × 800 |
| PC400×300 | 1500 | 145×295 | 100 | 0-30 | 5-8 | 7.5 | 0.9 | 844×942×878 |
| PC600×400 | 1000 | 295×450 | 100 | 0-35 | 10-12 | 18.5 | 1.5 | 1000×1000×1300 |
| PC600×600 | 1000 | 295×570 | 100 | 0-35 | 12-18 | 45 | 2.14 | 1315×840×1501 |
| PC800×600 | 1000 | 350×570 | 120 | 0-45 | 20-25 | 55 | 2.45 | 1515×2586×1040 |
| PC800×800 | 1000 | 350×850 | 120 | 0-45 | 35-45 | 55 | 3.05 | 1515×2831×1040 |
| PC1000×800 | 1000 | 580×580 | 200 | 0-45 | 25-40 | 110 | 6.5 | 3206×2210×1515 |
| PC1000×1000 | 1000 | 580×1060 | 200 | 0-45 | 40-80 | 132 | 7.59 | 3514×2230×1515 |
| PC 1250×800 | 750 | 650×850 | 200 | 0-45 | 20-50 | 132 | 11.7 | 2630×1780×2050 |
| PC1250×1250 | 750 | 650×1330 | 200 | 0-45 | 90-110 | 185 | 13.2 | 2630×2180×2050 |
| PC1400×1400 | 750 | 1050×1540 | 250 | 0-45 | 120-170 | 280 | 17.2 | 2790×2800×2310 |
| PC1600×1600 | 600 | 1500×1785 | 350 | 0-60 | 220-280 | 450 | 22.8 | 3350×3120×2660 |

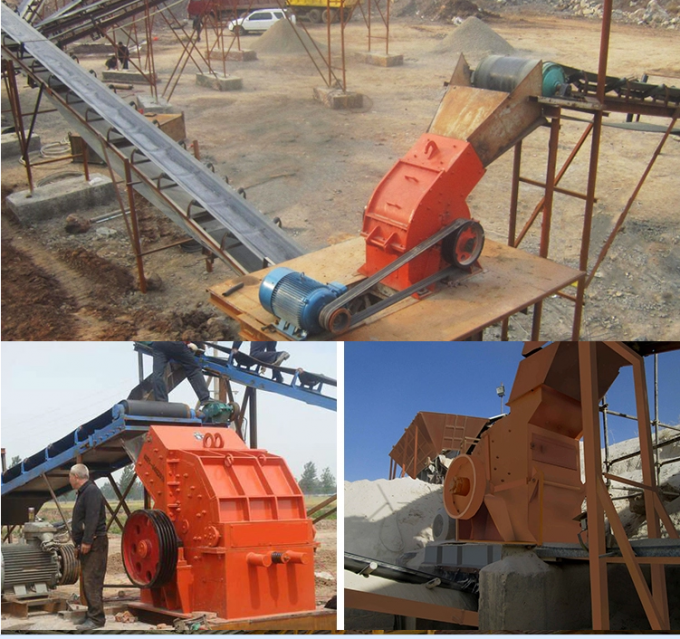

Hammer crusher in working site
