Small Lab Jaw Crusher To Crush Iron Ore Granite Stone For Laboratory Testing

  • Small Lab Jaw Crusher To Crush Iron Ore Granite Stone For Laboratory Testing
  • Small Lab Jaw Crusher To Crush Iron Ore Granite Stone For Laboratory Testing
  • Small Lab Jaw Crusher To Crush Iron Ore Granite Stone For Laboratory Testing
  • Small Lab Jaw Crusher To Crush Iron Ore Granite Stone For Laboratory Testing
  • Small Lab Jaw Crusher To Crush Iron Ore Granite Stone For Laboratory Testing
  • Small Lab Jaw Crusher To Crush Iron Ore Granite Stone For Laboratory Testing
Place of Origin China
Brand Name Ascend
Certification ISO9001
Model Number PE250x400 PE400x600 PE500x750
Minimum Order Quantity 1 set
Packaging Details Wooden box or put in container
Delivery Time 10-20 working days
Payment Terms T/T, Western Union, MoneyGram, L/C
Supply Ability 40 Set per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features High Crushing Ratio, Uniform Product Size, Simple Structure, Reliable Performance Name Rock Jaw Crusher
Function Crushing Stone Feature Easy Operation
Jaw Plate Material Mn13Cr2 Motor Type AC Motor
Keyword Fine Stone Jaw Crusher Material Hard Stones
Condition New Warranty 1 Year
Marketing Type Hot Product 2024 Spare Parts Supply Always Available
Applicable Industry Energy&Mining
High Light

granite stone Jaw Crusher

,

Iron Ore Jaw Crusher

,

Small Lab Jaw Crusher
Leave a Message
Product Description

Small Lab jaw crusher to crush Iron Ore granite stone for laboratory testing

Lab jaw crusher is a kind of small or mini jaw crusher, mainly used in laboratory to crush the ore sample into small particles, so that its components can be tested. The mini jaw crusher features simple structure, easy operation, low cost and fine crushing ratio, which is very helpful in the laboratory sample making. The main model is PE100x60, PE100x125 and PE100x150.

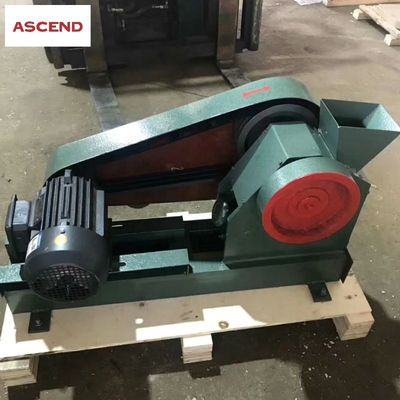

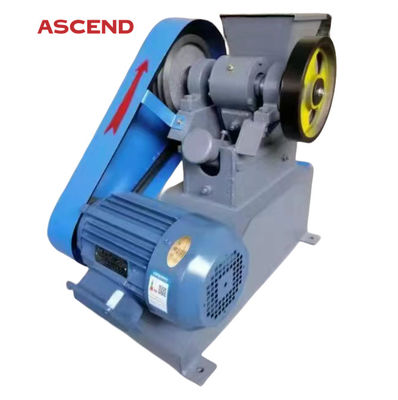

Small Lab Jaw Crusher To Crush Iron Ore Granite Stone For Laboratory Testing 0
Small Lab Jaw Crusher To Crush Iron Ore Granite Stone For Laboratory Testing 1
Small Lab Jaw Crusher To Crush Iron Ore Granite Stone For Laboratory Testing 2

Features and Advantages

●High crushing ratio: the crusher has a high crushing ratio and uniform product particle size.
● Easy maintenance: The lubrication system is safe and reliable, with convenient component replacement and low maintenance workload.
●Strong flexibility: Wide adjustment range, convenient and reliable, strong equipment flexibility, and can meet the requirements of different users.
●Stable operation: The design is aesthetically pleasing and has a compact structure. Each component undergoes strict screening and control, allowing for long-term normal operation and high production efficiency.
●Wide application range: Suitable for over 200 types of materials, widely used in industries such as cement, coal selection, power generation, building materials, chemical industry, metallurgy, etc.

Specification

Model
Max Feeding Size(mm)
Capacity (kg/h)
Output Size (mm)
Power(KW)
Dimension(mm) (L*W*H)
Weight (kg)
PE100*60
≤50
230-400
6-10
1.5
950*400*550
85
PEF100*60
≤50
45-550
0.1-15.1
2.2
1050*410*765
260
PE100*100
≤80
200-1800
3-25
3
1050*410*860
320
PEF125*100
≤80
200-1800
5-25
3
1050*410*860
320
PE150*100
≤90
400-3000
6-38
3
1050*410*860
360
PEF150*125
≤100
400-3000
6-38
3
1050*410*860
360
Working principle

The laboratory jaw crusher is driven by an electric motor through a belt, and drives the movable jaw to move periodically toward the fixed jaw through the eccentric shaft. When the movable jaw moves, the angle between the toggle plate and the movable jaw plate increases. Therefore, the movable jaw moves toward the fixed jaw. The material is crushed in this process. When the movable jaw moves downward, the angle between the toggle plate and the movable jaw decreases, and the movable jaw leaves the fixed jaw under the action of the pull rod and the spring, and the crushed material is finally discharged from the discharge port.

Small Lab Jaw Crusher To Crush Iron Ore Granite Stone For Laboratory Testing 3

Detailed Picture

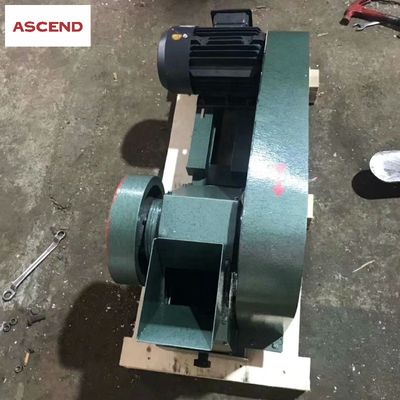

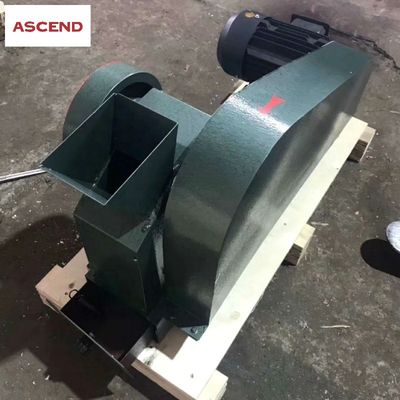

Small Lab Jaw Crusher To Crush Iron Ore Granite Stone For Laboratory Testing 4

Small Lab Jaw Crusher To Crush Iron Ore Granite Stone For Laboratory Testing 5



Delivery & Package

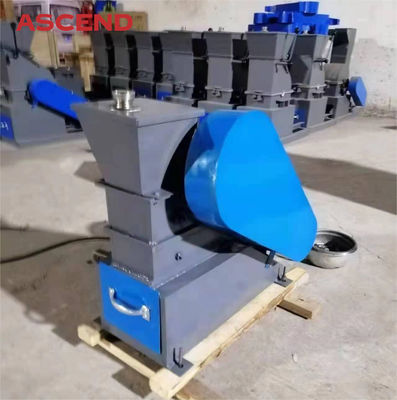

Small Lab Jaw Crusher To Crush Iron Ore Granite Stone For Laboratory Testing 6

Small Lab Jaw Crusher To Crush Iron Ore Granite Stone For Laboratory Testing 7
