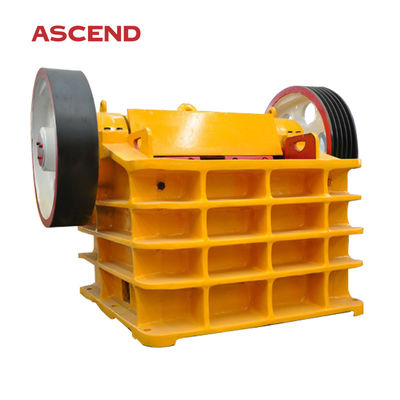

PE250x400 Jaw Stone Crusher Machine

Place of Origin China
Brand Name Ascend
Certification ISO9001
Model Number PE200x300 PE220x350 PE250x400 PE400x600
Minimum Order Quantity 1 set
Price USD 1800-4800
Packaging Details Wooden box or put in container
Delivery Time 7-10 working days
Payment Terms T/T, Western Union, MoneyGram, L/C
Supply Ability 50 Sets per month
Product Details
Name Stone Jaw Breaker Color Optional
Function Stone Crashing Type Fixed Or Portable Jaw Crusher
Condition New Warranty 1 Year
After-sales Service Provided Engineers Available To Service Machinery Overseas Capacity(t/h) 70-130
Application Quarry, Mining
High Light

PE250x400 jaw crusher equipment

,

quartzite crushing stone jaw crusher

Leave a Message
Product Description

Jaw Crusher for stone, limestone, granite, and gold ore

Jaw crusher is also called jaw crasher, which is to crush stone by adopting the principle of mutual extrusion between jaw plates. It is often used as the first process to crush all kinds of rocks with less than 320MPa compressive strength into medium particle size for one time.

Jaw crusher is always used with cone crusher, impact crusher and sand maker to constitute the sandstone production line. Jaw crusher can be devided into PE series and PEX series, of which the PE jaw crusher is used for coarse crushing, and PEX jaw crusher for medium and fine crushing.

Usage And Application Fields:

1. It is suitable for crushing all kinds of hard and soft ores with less than 300MPa compressive strength, such as pebble, calcite, granite, quartz, concrete, dolomite, bluestone, iron ore, limestone, iron ore, coal gangue, construction waste, ferrosilicon, basalt, sandstone, ore, glass, cement clinker, etc.

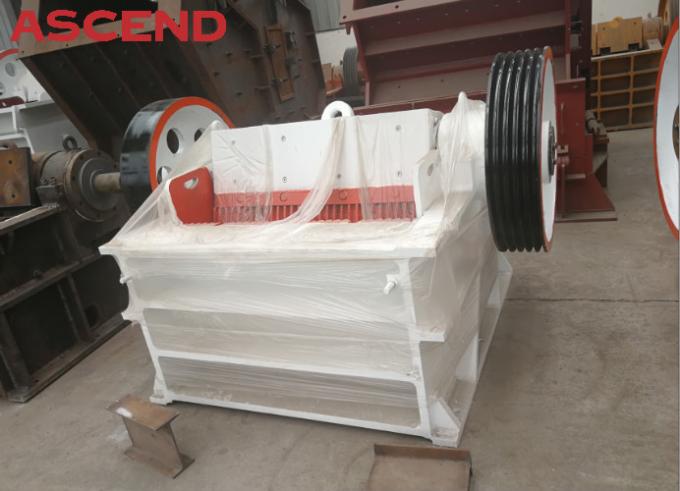

PE250x400 Jaw Stone Crusher Machine 0

Jaw crusher advantages

1.Simple structure ensures the crushing machine is not easy to break down.

2.Easy operation, which makes the crusher can be operated by common people.

3.High crushing ratio. Large stone lump can be quickly crushed into small particles.

4.Energy saving. The jaw crusher power amount is consumed less than other type of crushers.

5.Low cost, economically afforadable.

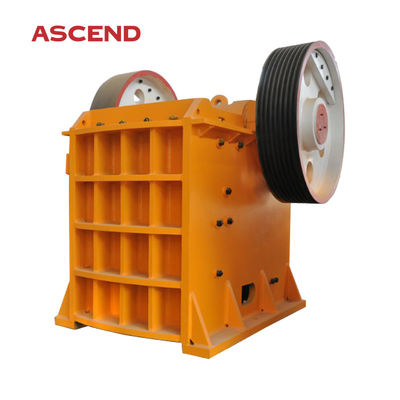

PE250x400 Jaw Stone Crusher Machine 1

Jaw crusher overview

Jaw crusher is one of the most common crushing equipment, mainly composed of moving jaw and static jaw. It is a crusher that simulates the two jaw movement of animals and completes the crushing operation of ores.Jaw crusher can be divided into two series according to different crushing method: PE series and PEX series. PE series jaw crusher is usually used for coarse crushing, PEX series jaw crusher is usually used for intermediate and fine crushing.

PE250x400 Jaw Stone Crusher Machine 2



Product advantages

1. Deep crushing cavity, high efficiency and energy saving;
2. Strong bearing capacity, high stability;
3. Advanced technology, long service life;
4. Centralized lubrication system, easy maintenance;
5. Simple structure, convenient maintenance;
6. Large discharging adjustment range, one crusher has multiple usages;
7. Low noise, less dust.

PE250x400 Jaw Stone Crusher Machine 3



Jaw crusher specifications

Model
Feed opening
(mm)
Max.feeding size
(mm)
Adjusting range of discharge opening
(mm)
Processing capacity
(t/h)
Rotation speed of eccentric shaft
(r/min)
Motor power
(kw)
Total weight
(t)
Dimensions
(L×W×H)
(mm)
PE-150×250 150×250 125 10-40 1-3 250 4P 5.5 0.8 720×660×850
PE-200×300 200×300 180 15-50 2-6 260 4P 7.5 1.2 910×750×990
PE-200×350 200×350 180 18-70 3-10 260 4P 11 1.5 1000×870×990
PE-250×400 250×400 210 20-60 5-20 300 6P 15 2.8 1300×1090×1270
PE-400×600 400×600 340 40-100 16-60 275 6P 30 7 1730×1730×1630
PE-500×750 500×750 425 50-100 40-110 275 6P 55 12 1980×2080×1870
PE-600×750 600×750 500 150-200 80-240 275 6P 55 15.8 2070×2000×1920
PE-600×900 600×900 500 65-160 50-180 250 6P 55 17 2190×2206×2300
PE-750×1060 750×1060 630 80-140 110-320 250 8P 110 29 2660×2430×2800
PE-800×1060 800×1060 640 130-190 130-330 250 8P 110 29.8 2710×2430×2800
PE-830×1060 830×1060 650 160-220 150-336 250 8P 110 30.7 2740×2430×2800
PE-870×1060 870×1060 660 200-260 190-336 250 8P 110 31.5 2810×2430×2800
PE-900×1060 900×1060 685 230-290 230-390 250 8P 110 33 2870×2420×2940
PE-900×1200 900×1200 750 95-165 220-450 200 8P 110 52 3380×2870×3330
PE-1000×1200 1000×1200 850 195-265 315-500 200 8P 110 55 3480×2876×3330

Crusher Working site

PE250x400 Jaw Stone Crusher Machine 4
