Limestone Crushing Stone Jaw Crusher

  • Limestone Crushing Stone Jaw Crusher
  • Limestone Crushing Stone Jaw Crusher
  • Limestone Crushing Stone Jaw Crusher
Place of Origin China
Brand Name Ascend
Certification ISO9001
Model Number PE200x300 PE220x350 PE250x400 PE400x600
Document Product Brochure PDF
Minimum Order Quantity 1 set
Price USD 1800-4800
Packaging Details Wooden box or put in container
Delivery Time 7-10 working days
Payment Terms T/T, Western Union, MoneyGram, L/C
Supply Ability 50 Sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Jaw Crusher Color Optional
Material High Manganese Mn13Cr2 Function Stone Crushing
Type Jaw Crusher,fixed Or Portable Condition New
Warranty 1 Year After-sales Service Provided Engineers Available To Service Machinery Overseas
Capacity(t/h) 70-130 Application Mining,stone
Highlight

Limestone portable jaw crusher

,

Limestone fixed jaw crusher
Leave a Message
Product Description

Jaw Crusher for stone, limestone, granite, and gold ore

Jaw Crusher and Diesel Jaw Crusher
It is applied to fine crushing of various material of which compressive strength is less than or equal to 320Mpa, is applied to relatively small feeding material granularity and relatively small discharging gate, and is fitted for the secondary crushing.

Mobile Crusher
Mobile crushing plant is a complete mobile crushing and screening plant which consists of raw material bins which located on one or more trailers, vibrating feeders, primary crushers, multi-layer vibrating screens, secondary crushers, fine crushers, mobile belt conveyors, sand washers, electric control systems and etc.; It is applicable to the mobile crushing processes in highway, railway, metallurgy, ore mine, construction and other industries.

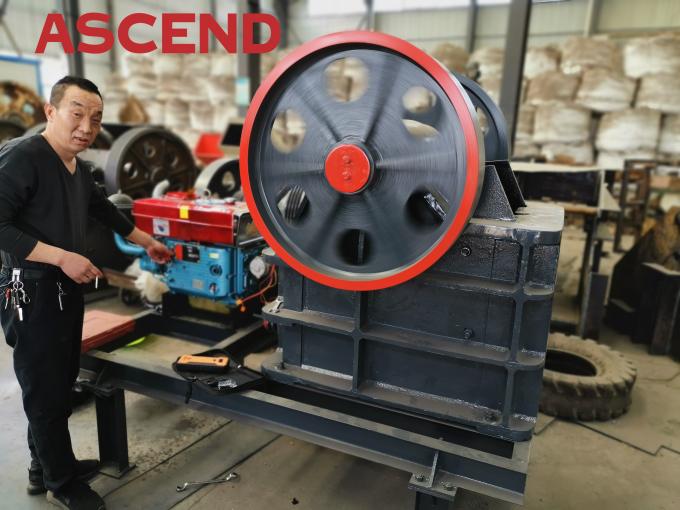

Limestone Crushing Stone Jaw Crusher 0

Jaw crusher advantages

1.Simple structure ensures the crushing machine is not easy to break down.

2.Easy operation, which makes the crusher can be operated by common people.

3.High crushing ratio. Large stone lump can be quickly crushed into small particles.

4.Energy saving. The jaw crusher power amount is consumed less than other type of crushers.

5.Low cost, economically afforadable.

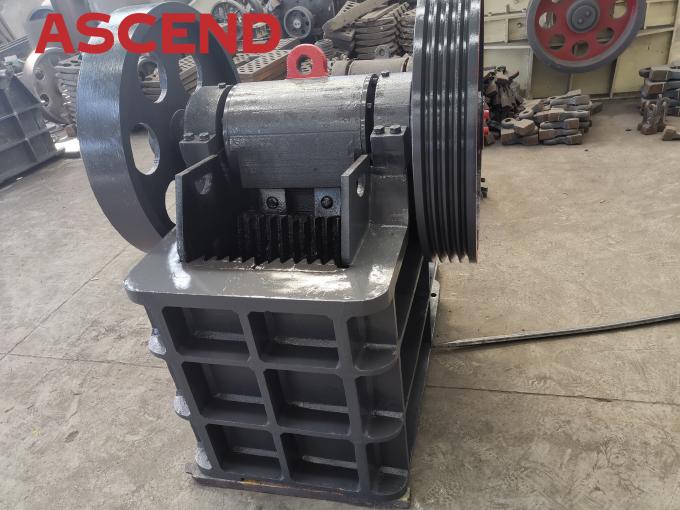

Limestone Crushing Stone Jaw Crusher 1

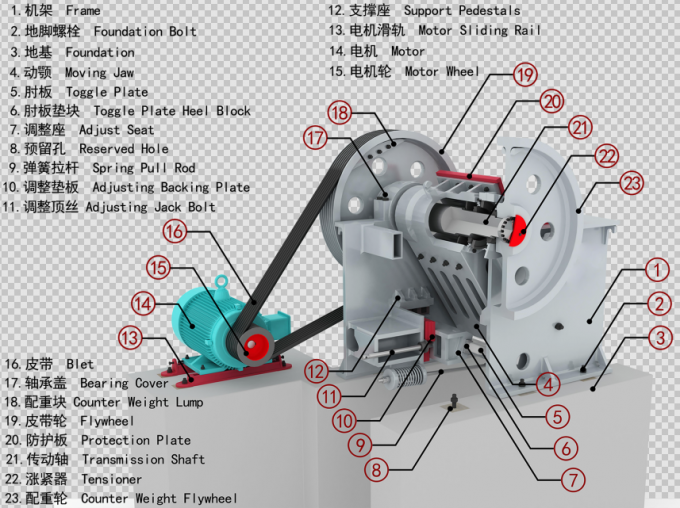

Jaw crusher overview

Jaw crusher is one of the most common crushing equipment, mainly composed of moving jaw and static jaw. It is a crusher that simulates the two jaw movement of animals and completes the crushing operation of ores.Jaw crusher can be divided into two series according to different crushing method: PE series and PEX series. PE series jaw crusher is usually used for coarse crushing, PEX series jaw crusher is usually used for intermediate and fine crushing.

Limestone Crushing Stone Jaw Crusher 2



Product pictures

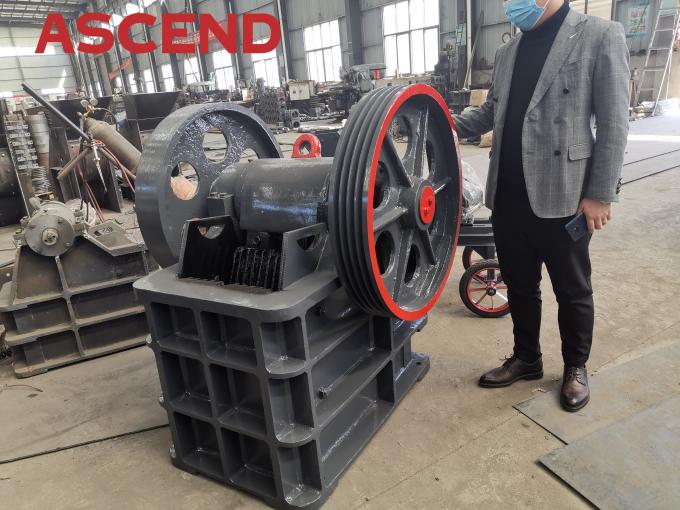

Limestone Crushing Stone Jaw Crusher 3



Jaw crusher specifications

Model Feeding mouth size
(mm)		 Max Feeding size
(mm)		 Adjusting range
of output size
(mm)		 Capacity
(t/h)		 rotation speed
(r/min)		 Power
(kw)		 Weight
(t)		 Dimension
(L×W×H)
(mm)
PE-150×250 150×250 125 10-40 1-3 260 5.5 0.7 1000×870×990
PE-200×300 200×300 180 15-50 2-6 260 7.5 1 1050×920×990
PE-220×350 220×350 200 18-55 4-10 260 11 1.3 1100×970×990
PE-250×400 250×400 210 20-60 5-20 300 15 2.8 1300×1090×1270
PE-400×600 400×600 340 40-100 16-60 275 30 7 1730×1730×1630
PE-500×750 500×750 425 50-100 40-110 275 55 12 1980×2080×1870
PE-600×900 600×900 500 65-160 50-180 250 55 17 2190×2206×2300
PE-750×1060 750×1060 630 80-140 110-320 250 110 31 2660×2430×2800
PE-900×1060 900×1060 685 230-290 230-390 250 110 33 2870×2420×2940
PE-900×1200 900×1200 750 95-165 220-450 200 110 52 3380×2870×3330
PE-
PEX-150×750 150×750 120 18-48 8-25 320 15 3.8 1200×1530×1060
PEX-250×750 250×750 210 25-60 13-35 330 30 5.5 1380×1750×1540
PEX-250×1000 250×1000 210 25-60 16-52 330 30 7 1560×1950×1390
PEX-250×1200 250×1200 210 25-60 20-61 330 37 9.7 2140×1660×1500
PEX-300×1300 300×1300 250 20-90 16-105 300 55 15.6 2720×1950×1600

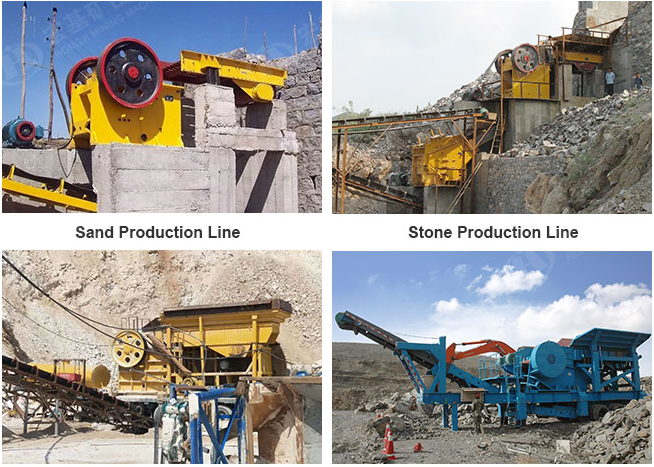

Crusher Working site

Limestone Crushing Stone Jaw Crusher 4

Jaw crusher price

In order to select suitable jaw crusher model, we would like to know the following answers for these questions

1. What is the raw material you want to crush?

2. What is the input and output size of the material?

3.What is the capacity you need?



The Jaw crusher price depends on different crusher models. As the professional mining crusher manufacturer in China, we will provide maximum preferential price and discount for you. Welcome to visit our company and factory.
