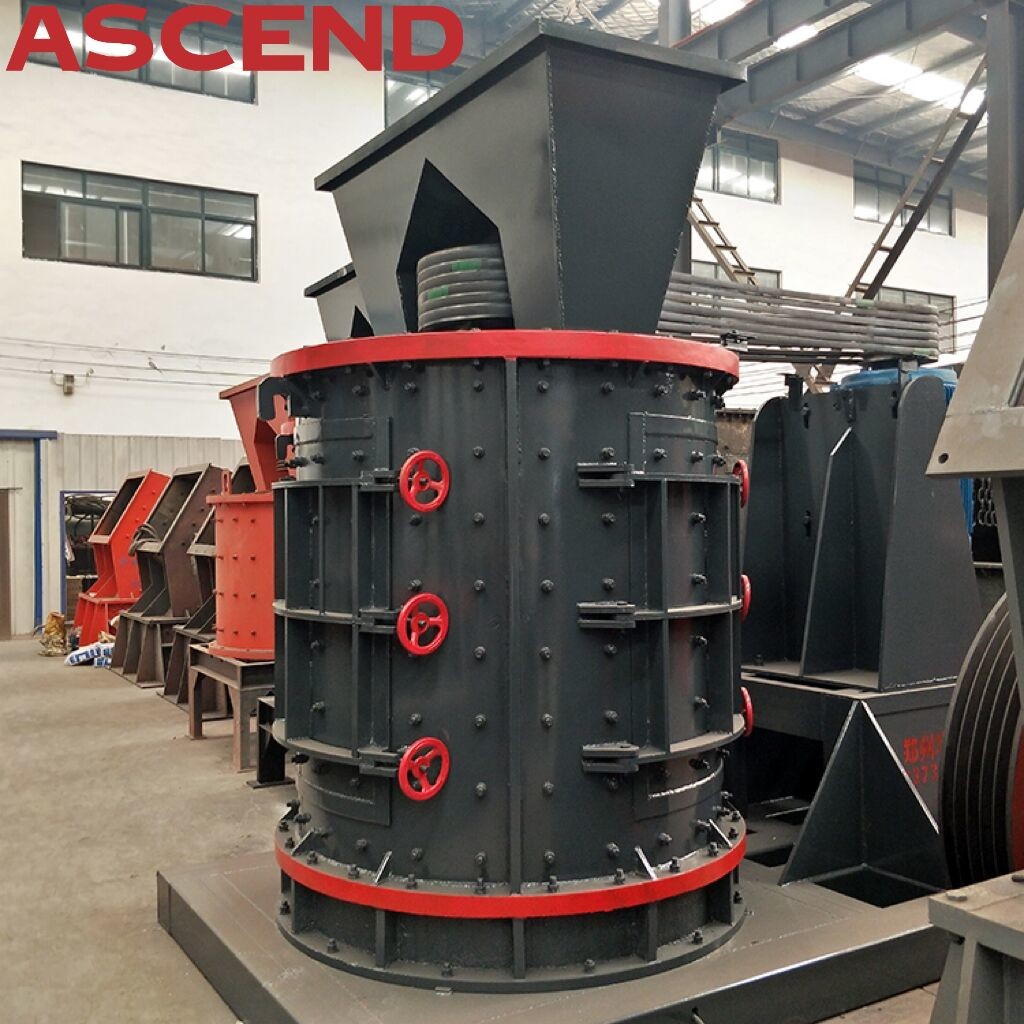

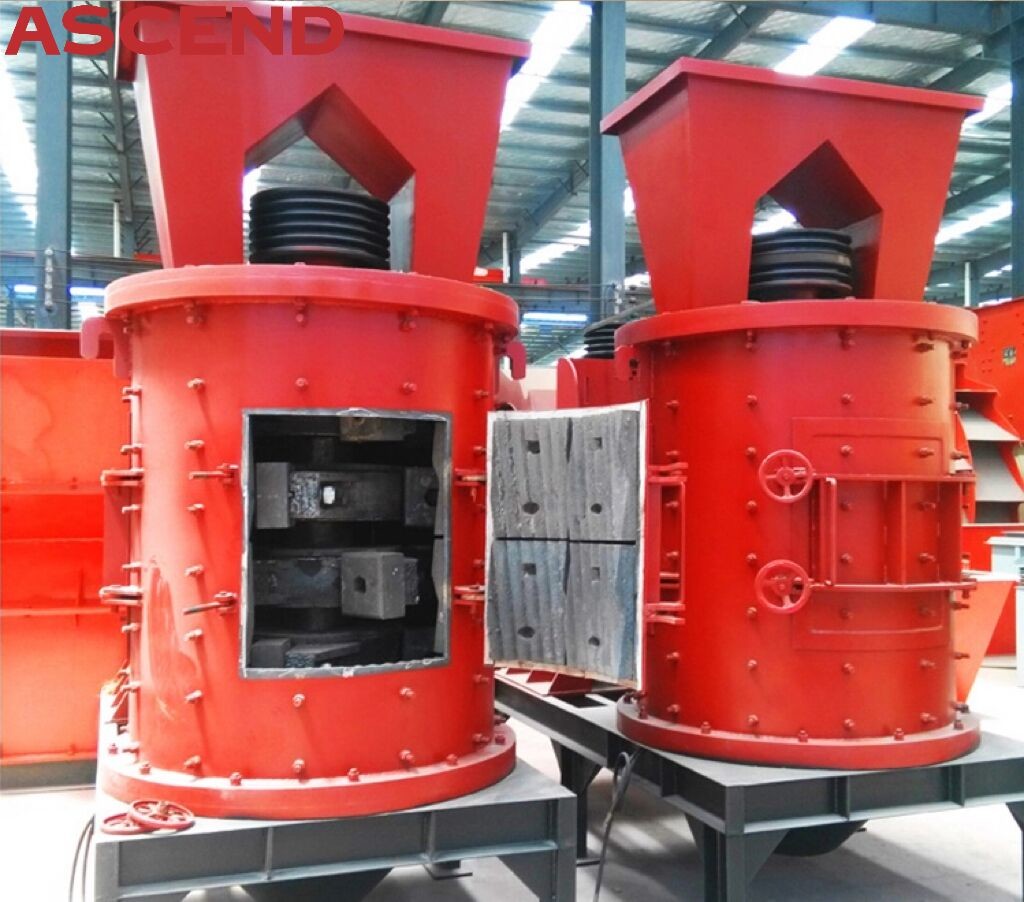

PFL Series Vertical Compound Rock Crusher Machine Manufacturer For Coal Limestone
Place of Origin | China |
---|---|
Brand Name | ASCEND |
Certification | CE/ISSO9001 |
Model Number | different models |
Document | Product Brochure PDF |
Minimum Order Quantity | 1 set |
Price | USD 3500-35000 Per set |
Packaging Details | Water and rust proof in wooden box or cotainer |
Delivery Time | 10 days |
Payment Terms | L/C, T/T, Western Union, MoneyGram |
Supply Ability | 10 set per month |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xKeyword | Fine Stone Crusher | Name | Compound Crusher |
---|---|---|---|
Motor Type | AC Motor | Dimension(L*W*H) | Different Size |
Warranty | 1 Year | The Machines Classification | Stone Crushing Machine |
Capacity | According Needs |
Product Description
Compound Crusher is also called New Sand Making Machine. The series of products have reached theinternational advanced level through optimized design. They can crush the medium hard materials, such as limestone,cement clinker,iron ore, aluminum ore, sandstone, quartz, refractory, plaster, gangue and so on. Composite crusher are widely used in building material,mining industry. metallurgy.coal and chemical industry.
Working Principle
The massive ore fall into the rejection material basin of the upper crushing chamber rejection from the entrance.
The materials are thrown into the wall of cylinder rely on the centrifugal force of the rejection material basin. And
they will have a violent collision with the counter board installed on the wall. And the materials hit each other to
make them crushed and generate a large number of cracks. Then the materials get into the conical rotor cavity and fall down as spiral in cone space to make the ore with cracks getting further crushed through stamping and
extrusion. As to the gradient between conical rotor and liner, the minor material tend to move down to achieve
automatically graded broken from big to small. The materials are blowed by the hammer in the conical rotor cavity and have another collision with the high speed moving block materials. The material flow hit each other to make them crushed through blowing, hitting, shearing, extrusion, thus to improve the crushing efficiency. The falling materials from conical rotor cavity get into the lower crushing chamber and rely on the centrifugal force of the rejection material basin to crush the material much smaller. At last, the materials get into the cylindrical rotor to grind the crushed materials for further crushing untill they reached the required size.
Product Advantages
1. Reasonable internal structure;
2.Attractive appearance;
3.Rather attractive satisfying testing effect;
4.Assorted motor model and power.
5.Excellent product grain size,easy operation and maintaining.
6.High broken rate, saving energy.
Techinical parameters
Model | PFL-800 | PFL-1000 | PFL-1250 | PFL-1500 | PFL-1750 |
Feed Grain(mm) | 100 | 120 | 150 | 180 | 200 |
Material-in Size (mm) | 0-5 | 0-5 | 0-5 | 0-5 | 0-5 |
Trening Capacity(t/h) | 10-20 | 20-40 | 40-70 | 70-100 | 130-190 |
Motor Power (kw) | 22 | 45-55 | 75 | 90-110 | 132-160 |
Maine Shaft Speed(r/min) | 934 | 769 | 530 | 495 | 424 |
Overall Dimension(mm) | 2100*1200*1700 | 2600*1400*1900 | 2800*1600*2100 | 3100*1900*2200 | 3710*2360*2390 |
Weight(t) | 2.3 | 4.5 | 6.2 | 8.3 | 12 |
