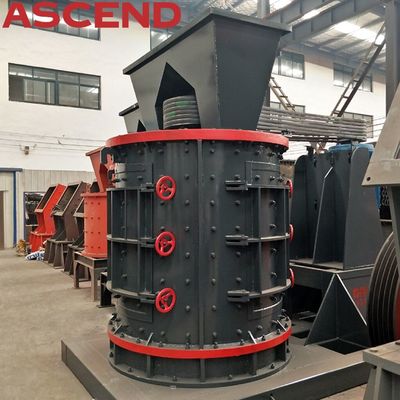

PFL Series Small Vertical Combination Stone Crusher Sand Making Machine PF-800
| Place of Origin | China |
|---|---|
| Brand Name | ASCEND |
| Certification | CE/ISSO9001 |
| Model Number | PFL-800 |
| Minimum Order Quantity | 1 set |
| Price | USD 3500-35000 Per set |
| Packaging Details | Water and rust proof in wooden box or cotainer |
| Delivery Time | 7- 10 working days |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 10 set per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Keyword | Fine Stone Crusher | Name | Compound Crusher |
|---|---|---|---|
| Motor Type | AC Motor | Dimension(L*W*H) | 2100X1200X1700 |
| Warranty | 1 Year | The Machines Classification | Stone Crushing Machine |
| Capacity | 10-20 T/H |
Product Description
Product Description
Product Description
Compound crusher is a kind of no screen adjustable fine crushing machine, it is optimal designed on the basis of advanced fine crushing technology both at home and abroad. It is mainly adapted to medium-sized raw materials and clinkers , at the same time can also be used for fine-crush dolomite, coke precious stones, lead-zinc, serpentine, blast furnace slag, coal gangue , phosphate rock materials with medium hardness , especially suitable for hard limestone, dolomite, granite, basalt artificially build sand or highway pavement stone processing.
Working Principle
Working Principle
The upper part of the machine drops vertically into the high-speed rotating impeller. Under the action of high-speed centrifugal force, the other part of the material distributed around the impeller in the shape of an umbrella produces high-speed impact crushing. The impeller and the shell are subjected to cyclone impact and friction crushing for many times, and are discharged directly from the bottom to form a closed-circuit multi-cycle, which is controlled by the screening equipment to achieve the required product size.

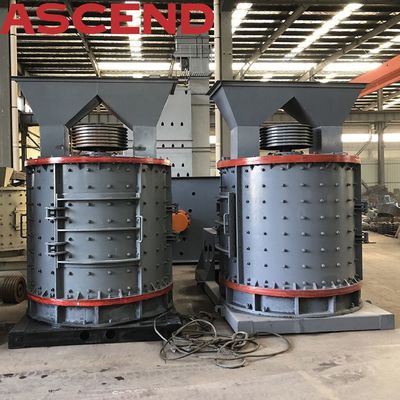

Product pictures
Product Advantages
(1) Simple and reasonable structure, low running costs. The use of stone at stone principle, wear small.
(2) High crushing efficiency, energy saving.
(3) Fine crushing, coarse grinding.
(4) Little affected by the moisture content, the moisture content of up to about 8%.
(5) Working noise below 75 decibels (db level), less dust pollution.
(6) Suitable for crushing medium-hard, extra-hard materials.
(7) Final product is cube, of bulk density and low iron pollution.
(8) Since the impeller lining wear, easy maintenance.
Specifications
Techinical parameters
| Model | PFL-800 | PFL-1000 | PFL-1250 | PFL-1500 | PFL-1750 |
| Feed Grain(mm) | 100 | 120 | 150 | 180 | 200 |
| Material-in Size (mm) | 0-5 | 0-5 | 0-5 | 0-5 | 0-5 |
| Trening Capacity(t/h) | 10-20 | 20-40 | 40-70 | 70-100 | 130-190 |
| Motor Power (kw) | 22 | 45-55 | 75 | 90-110 | 132-160 |
| Maine Shaft Speed(r/min) | 934 | 769 | 530 | 495 | 424 |
| Overall Dimension(mm) | 2100*1200*1700 | 2600*1400*1900 | 2800*1600*2100 | 3100*1900*2200 | 3710*2360*2390 |
| Weight(t) | 2.3 | 4.5 | 6.2 | 8.3 | 12 |
Working site
Company information
- Ascendmachinery expands its business in more than 160 countries and regions
- Henan Ascend Machinery & Equipment Co., Ltd. was established in 2005 and it is located in the high-tech zone of Zhengzhou City, Henan Province. As a technology driven mining equipment company, it is committed to the R&D, production, sales and after-sales service of mining machinery and equipment.
- The company's main products are crushers, grinding mill equipment, mineral beneficiation equipment, rotary dryer and crusher & grinding mill spare parts. In addition to the Chinese domestic market.
