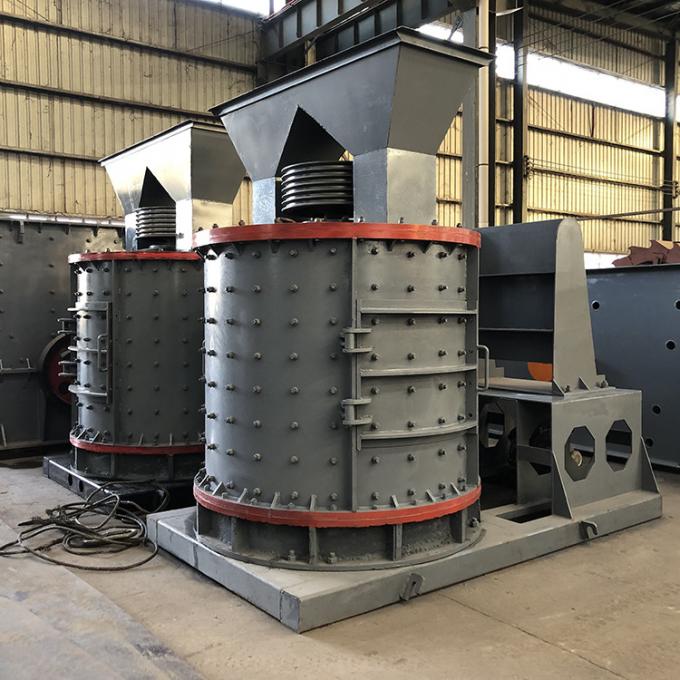

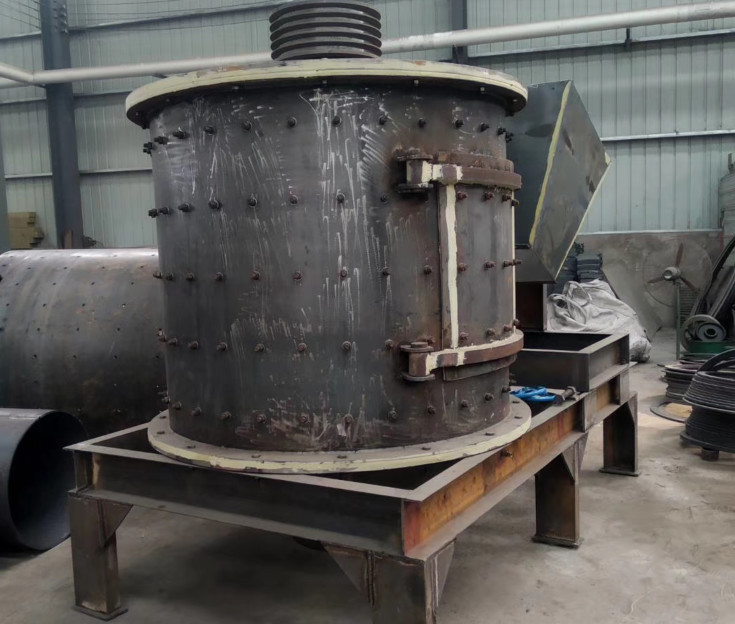

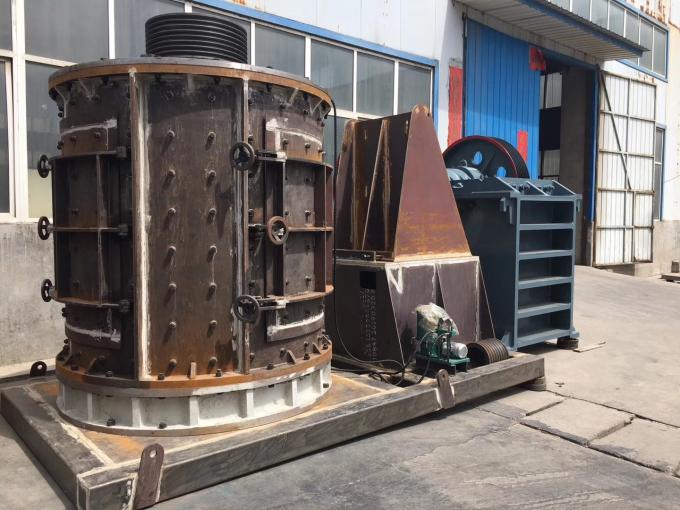

Dolomite Vertical Shaft Crusher

Place of Origin China
Brand Name Ascend
Certification CE/ISSO9001
Model Number PFL800 PFL1000 PFL1250 PFL1500
Minimum Order Quantity 1 set
Price USD 3500-35000 Per set
Packaging Details Water and rust proof in wooden box or cotainer
Delivery Time 7-10 working days
Payment Terms T/T, Western Union
Supply Ability 10 set per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Name Vertical Shaft Compound Crusher Application Stone Crushing And Sand Making
Warranty One Year Motor AC Motor
Key Words Fine Stone Crusher Capacity 10-90 Ton Pe Hour
Color Customized Warranty 1 Year
Dimension(l*w*h) Customized The Machines Classification Building Stone Production Line,strong Crusher Machine,Crushing Equipment
Product Name Stone Crusher Installation Engineer Guide
High Light

Dolomite Vertical Shaft Crusher


Dolomite Cone Crusher Parts

Leave a Message
Product Description

Vertical shaft hammer crusher spare parts/dolomite compound crusher/stone coal compound crusher

The compound crusher is a kind of fine crushing equipment with large crushing ratio. It has no screening grate in the crushing cavity.The particle size of the material can be adjusted arbitrarily, and is not affected by the wear of the plate hammer and the lining plate. Without the screen grate, it is not easy to block when the material has high moisture and mud rate; the elastic adjustment mechanism can be used to automatically discharge the unbreakable material. It will not cause equipment damage; the bearing is horizontally arranged and has a long service life, which can crush materials with high temperature (such as cement clinker).

Dolomite Vertical Shaft Crusher 0

Working principle

Materials fall into the high-speed rotation impeller from the above of machine, under the action of high-speed centrifugal force, have high-speed impact with another umbrella form materials which flow around the impeller, after they attack each other, then discharged from the bottom, it forms close-circuit and with many times circulation, it can achieve the required product size by screening equipment controlling.

Dolomite Vertical Shaft Crusher 1


Product Advantages

1.Simple structure low operation cost. using the principle of stone strike stone , smaller wear.
2.High crushing ratio, low energy consumption.
3.It can crush material with high moisture content, humidity can reach 8%.
5.Working noise is less than 75 db, less dust pollution.
6.Suitable for breaking medium hard, especially like clay, limestone and gypsum

Dolomite Vertical Shaft Crusher 2

Dolomite Vertical Shaft Crusher 3


Model PFL-800 PFL-1000 PFL-1250 PFL-1500 PFL-1750
Feed Grain(mm) 100 120 150 180 200
Material-in Size (mm) 0-5 0-5 0-5 0-5 0-5
Trening Capacity(t/h) 10-20 20-40 40-70 70-100 130-190
Motor Power (kw) 22 45-55 75 90-110 132-160
Maine Shaft Speed(r/min) 934 769 530 495 424
Overall Dimension(mm) 2100*1200*1700 2600*1400*1900 2800*1600*2100 3100*1900*2200 3710*2360*2390
Weight(t) 2.3 4.5 6.2 8.3 12

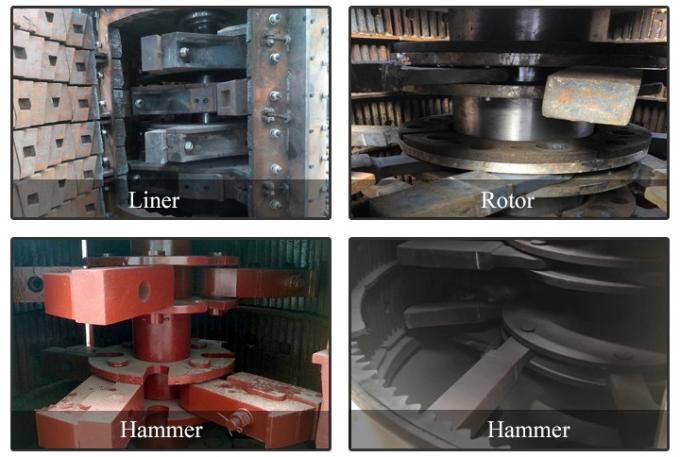

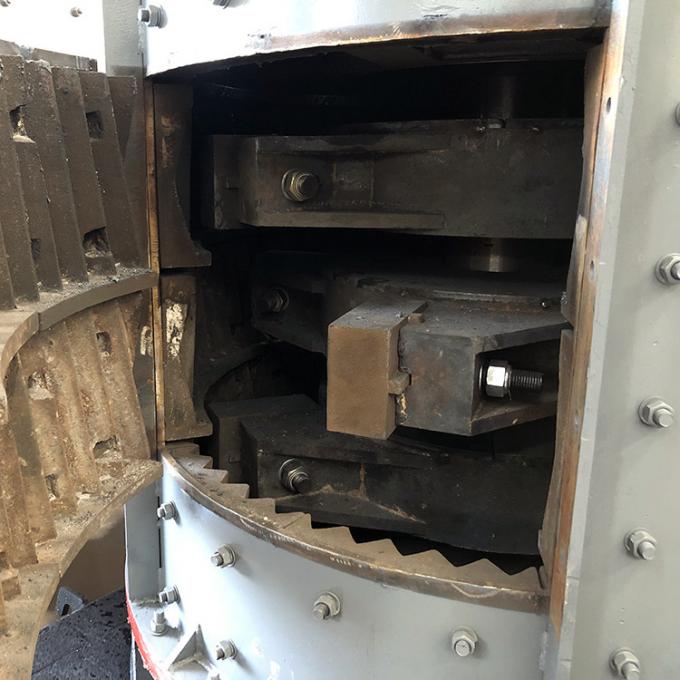

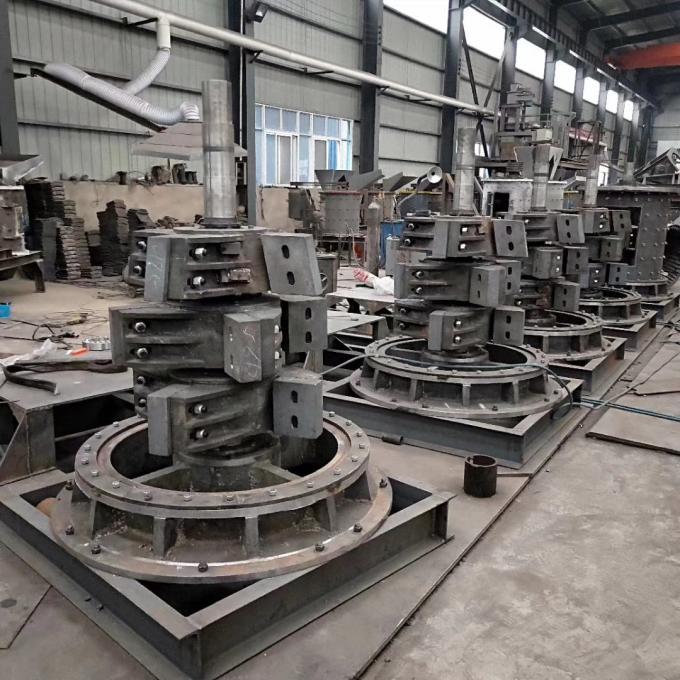

Compound crusher spare parts

The major wearing parts of the compound crusher is impact plates and hammers. The impact plates are made of high manganese alloy Mn13Cr2, and hammers are made of extremely wearable materials Cr26NiMo.

Dolomite Vertical Shaft Crusher 4

Dolomite Vertical Shaft Crusher 5

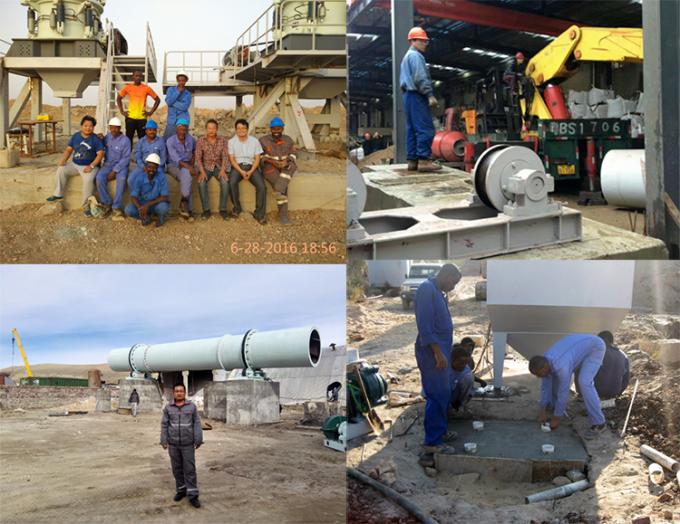

Customer working site

Dolomite Vertical Shaft Crusher 6

Dolomite Vertical Shaft Crusher 7
