Vertical Shaft Stone Hammer Compound Crusher Mining Copper Iron Ore Stone Crushing Machine
| Place of Origin | China |
|---|---|
| Brand Name | ASCEND |
| Certification | CE/ISSO9001 |
| Model Number | different models |
| Minimum Order Quantity | 1 set |
| Price | USD 3500-35000 Per set |
| Packaging Details | Water and rust proof in wooden box or cotainer |
| Delivery Time | 10 days |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 10 set per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Keyword | Fine Stone Crusher | Name | Compound Crusher |
|---|---|---|---|
| Motor Type | AC Motor | Dimension(L*W*H) | Different Models |
| Warranty | 1 Year | The Machines Classification | Stone Crushing Machine |
| Capacity | According Requirements |
Product Description
Product Description
Product Description
The vertical compound crusher is a new generation of high-efficiency crusher developed by Henan Hongke heavy machinery co.,ltd. according to the same kind of crusher technology at home and abroad and optimized design of main technical parameters.The structure of thawing hammer crusher and counterattack crusher is especially suitable for crushing brittle materials with medium hardness and low water content in building materials, mining, chemical industry, metallurgy, cement, coal and other industries.
Working Principle
Working Principle
Vertical crusher for iron ore is a crushing machine for crushing material of iron ore with a maximum size of 600-1800 mm to 25 mm or less.The device is driven by a motor rotor in the breaking chamber high-speed rotation.
Material from the upper feed into the machine is crushed by the impact of high-speed hammer, shear, grinding action.In the lower part of the rotor, a sieve plate is arranged.The particles smaller than the size of the sieve hole in the comminuted material are discharged through the sieve plate,and the coarse particle resistance larger than the size of the sieve hole is left on the sieve plate to continue to be hit and ground by the hammer.Finally, it is expelled from the machine by the sieve plate.

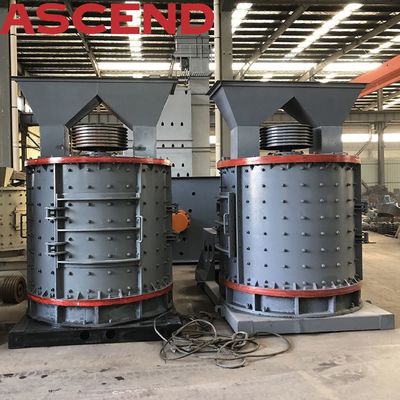

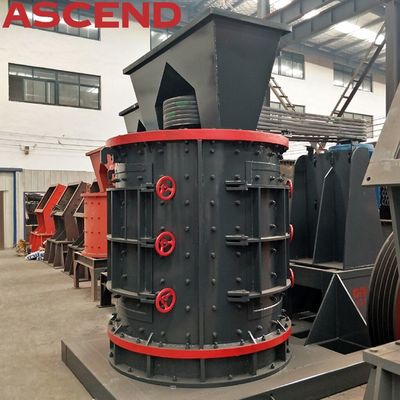

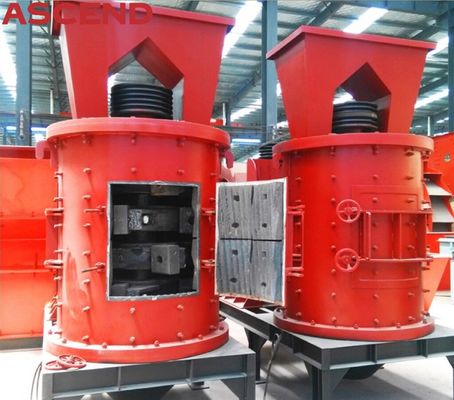

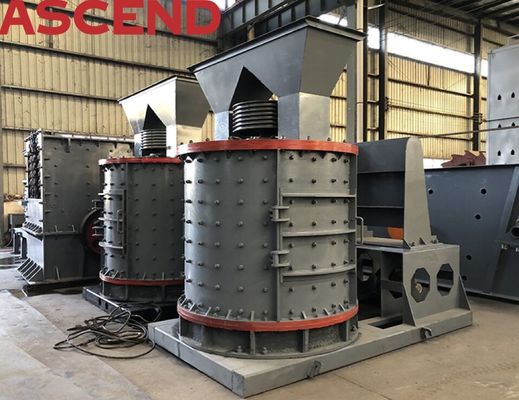

Product pictures
Product Advantages
1.Simple structure,low operation cost and working noise
2.High broken rate
3.Especially for hard material
Specifications
Techinical parameters
| Model | PFL-800 | PFL-1000 | PFL-1250 | PFL-1500 | PFL-1750 |
| Feed Grain(mm) | 100 | 120 | 150 | 180 | 200 |
| Material-in Size (mm) | 0-5 | 0-5 | 0-5 | 0-5 | 0-5 |
| Trening Capacity(t/h) | 10-20 | 20-40 | 40-70 | 70-100 | 130-190 |
| Motor Power (kw) | 22 | 45-55 | 75 | 90-110 | 132-160 |
| Maine Shaft Speed(r/min) | 934 | 769 | 530 | 495 | 424 |
| Overall Dimension(mm) | 2100*1200*1700 | 2600*1400*1900 | 2800*1600*2100 | 3100*1900*2200 | 3710*2360*2390 |
| Weight(t) | 2.3 | 4.5 | 6.2 | 8.3 | 12 |
