Vertical Compound Crusher Compound Iron Ore Crusher Machine Mining Rock Crusher
| Place of Origin | China |
|---|---|
| Brand Name | ASCEND |
| Certification | CE/ISSO9001 |
| Model Number | different models |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 1 set |
| Price | USD 3500-35000 Per set |
| Packaging Details | Water and rust proof in wooden box or cotainer |
| Delivery Time | 7-10 working days |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 10 set per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Keyword | Fine Stone Crusher | Name | Compound Crusher |
|---|---|---|---|
| Motor Type | AC Motor | Dimension(L*W*H) | Different Size |
| Warranty | 1 Year | The Machines Classification | Stone Crushing Machine |
| Capacity | Different Needs | Power | Different Models |
Product Description
Product Description
Product Description
Vertical Composite Stone Crusher for Mining, Cement Plant and Metallurgy.
Composite crusher is one type of fine-crushing equipment that has strong crushing power for mid-hardness materials, such as limestone, shale, glass, ceramics, dolomite, cement clinker, iron ore, molybdenum ore, aluminum, cobble, rock phosphorite, copper ore, magnesite, serpentine, calces, gypsum, lump coal, zeolite and sandstone, etc.
It's also known as composite breaker or vertical crusher. Based on the PFL series vertical compound crusher, it's a new product which adopts the most advanced fine-crushing technology both in domestic and abroad.
Working Principle
Working Principle
Materials fall into the high-speed rotation impeller from the above of machine, under the action of high-speed centrifugal force, have high-speed impact with another umbrella form materials which flow around the impeller, after they attack each other, then discharged from the bottom, it forms close-circuit and with many times circulation, it can achieve the required product size by screening equipment controlling.

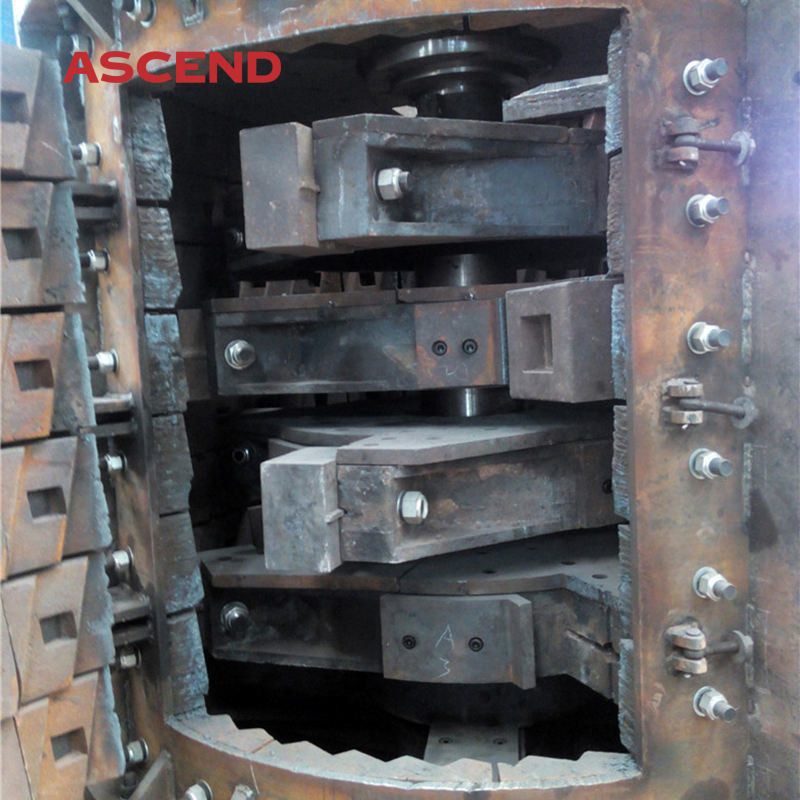

Product pictures
Product Advantages
1). High crushing ratio.--1.4 times higher than other domestic similar crushers.
2). Stable performance, high efficiency and energy-saving.
3). Service life of wearing parts is 2-3 times longer than old models.
4). Adjustable gap between hammerhead and impact plate, which can satisfy different requirements on size.
5). Widely used in mining, metallurgy, refractory, cement, coal, glass, ceramics, and electric power industries, etc.
6). Easy for operation and maintenance.
7). Lower noise and good air-tightness.
Specifications
techinical parameters
| Model | PFL-800 | PFL-1000 | PFL-1250 | PFL-1500 | PFL-1750 |
| Feed Grain(mm) | 100 | 120 | 150 | 180 | 200 |
| Material-in Size (mm) | 0-5 | 0-5 | 0-5 | 0-5 | 0-5 |
| Trening Capacity(t/h) | 10-20 | 20-40 | 40-70 | 70-100 | 130-190 |
| Motor Power (kw) | 22 | 45-55 | 75 | 90-110 | 132-160 |
| Maine Shaft Speed(r/min) | 934 | 769 | 530 | 495 | 424 |
| Overall Dimension(mm) | 2100*1200*1700 | 2600*1400*1900 | 2800*1600*2100 | 3100*1900*2200 | 3710*2360*2390 |
| Weight(t) | 2.3 | 4.5 | 6.2 | 8.3 | 12 |
Working site
Company information
- Ascendmachinery expands its business in more than 160 countries and regions
- Henan Ascend Machinery & Equipment Co., Ltd. was established in 2005 and it is located in the high-tech zone of Zhengzhou City, Henan Province. As a technology driven mining equipment company, it is committed to the R&D, production, sales and after-sales service of mining machinery and equipment.
- The company's main products are crushers, grinding mill equipment, mineral beneficiation equipment, rotary dryer and crusher & grinding mill spare parts. In addition to the Chinese domestic market.
