Small Quartz Limestone Rock Stone Crushing Capacity Mobile Crusher Roller Crusher

Place of Origin China
Brand Name ASCEND
Certification CE
Model Number 2PG400x250 2PG610x400 2PG750x500
Document Product Brochure PDF
Minimum Order Quantity 1 set
Price USD 3000-15000 Per set
Packaging Details Wooden box or put in container
Delivery Time 10 working days
Payment Terms T/T, Western Union
Supply Ability 20 set per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Double Roller Crusher Condition New
Color Customizable Function Stone Crushing
Warranty 1 Year After-sales Service Provided Field Installation
Spare Parts Supply Always Available Key Words Double Roll Crusher
Leave a Message
Product Description

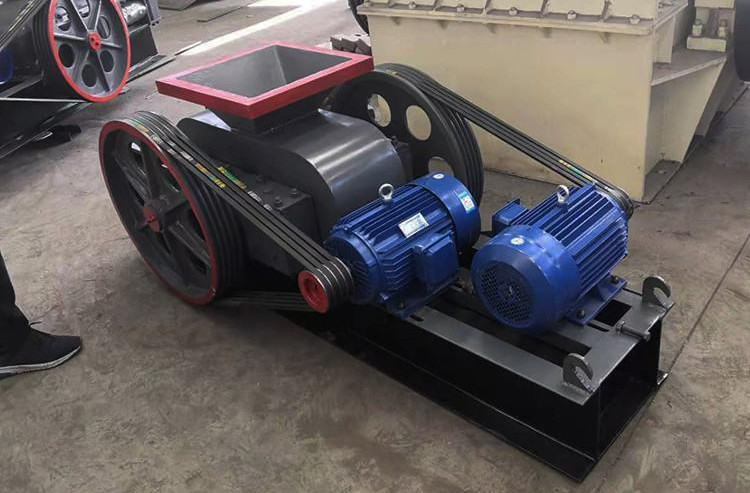

Small Quartz Limestone Rock Stone Crushing Capacity Mobile Crusher Roller Crusher

Product Description

Roll crusher is also called double roll crusher, double teeth roll crusher etc. Material is crushed by squeezing and fracturing of the machine. Teeth or groove are usual on roller surface in order to increase fracturing effect. The surface of roller crusher are made of high manganese steel, which can stand up to heat treatment. The roll crusher has reasonable structure.So it is compact and portable. The double roller crusher usually crush materials whose compression strength is not more than 160MPa. And the discharging size is adjustable.Roll crusher works reliably and also has great production capacity.

High Capacity Sand Crusher Jaw Rock Stone Crushing Plant Equipment 200 Tons Per Hour

Small Quartz Limestone Rock Stone Crushing Capacity Mobile Crusher Roller Crusher 1

Working Principle

Between the two rollers, there are wedge-shape or gasket adjusting device. There are adjusting bolts on the top of the wedge device. When the adjusting bolts lift the wedge upwards, the wedge pushes movable roller away from the fixed roller. So the gap between two rollers becomes large and the discharging size is big. When the wedge moves downwards, gap between two rollers becomes small under the influence of pressure spring. Discharging granularity is small accordingly.

Small Quartz Limestone Rock Stone Crushing Capacity Mobile Crusher Roller Crusher 2

Small Quartz Limestone Rock Stone Crushing Capacity Mobile Crusher Roller Crusher 3

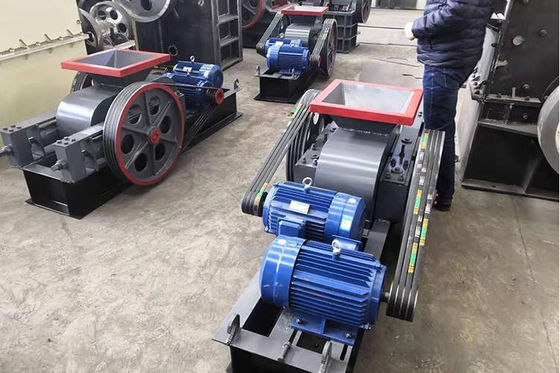

Detailed Images

High Capacity Sand Crusher Jaw Rock Stone Crushing Plant Equipment 200 Tons Per Hour

Small Quartz Limestone Rock Stone Crushing Capacity Mobile Crusher Roller Crusher 5

Spare Parts

High Capacity Sand Crusher Jaw Rock Stone Crushing Plant Equipment 200 Tons Per Hour



Specifications



Model Feeding size(mm) Discharging granularity (mm)

Output

(t/h)

Motor Power

(t/h)

Dimensions(L×W×H) (mm) Weight (kg)
2PG-400*250 <=25 2-8 5-10 11 1215×834×830 1100
2PG-610*400 <=40 1-20 13-40 30 3700×1600×1100 3500
2PG-750*500 <=40 2-20 20-55 37 2530×3265×1316 12250
2PG-900*500 <=40 3-40 60-125 44 2750x1790x2065 14000



Packing Shipping&Working Sites



High Capacity Sand Crusher Jaw Rock Stone Crushing Plant Equipment 200 Tons Per Hour



Company Profile

  • Henan Ascend Machinery & Equipment Co., Ltd. was established in 2005 and it is located in the high-tech zone of Zhengzhou City, Henan Province. As a technology driven mining equipment company, it is committed to the R&D, production, sales and after-sales service of mining machinery and equipment.
  • The company's main products are crushers, grinding mill equipment, mineral beneficiation equipment, rotary dryer and crusher & grinding mill spare parts. In addition to the Chinese domestic market, Ascend machinery expands its business in more than 160 countries and regions.

Our Workshop

High Capacity Sand Crusher Jaw Rock Stone Crushing Plant Equipment 200 Tons Per Hour



FAQ

Q1. Are you factory or trading company?
We are factory specialized in manufacturing stone crushers, grinding mills, beneficiation equipments and other mining equipments. Our office and factories are based in Zhengzhou, China. Because we are factory, so we can guarantee the machine quality and we can give you very competitive factory price without extra agent cost.
Q2. To which country your products have been exported before?
In Africa, We have exported to Sudan, Kenya, Zambia, Ethiopia, Zimbabwe, Guinea, Nigeria and so on. We also exported South Africa, Chile, Peru, Ecuador, New Zealand, America, Austrilia more than 160 countries. Our equipment and service have won very high reputation in these countries.
Q3. How will you help the customer install the equipment?
We will send our senior engineer to your place to guide the installation and commissioning.
Q4. How about the wear parts supply?
We offer wear parts to our customer with our most favorable price. If there are problems you could not handle, we will send our technicians to your place.
Q5.What about the payment method?
T/T, Paypal, Western Union, L/C is available.
Q6.What about after-sale service?
12 months warranty for all kinds of products; and you will get our 7*24h online service.
