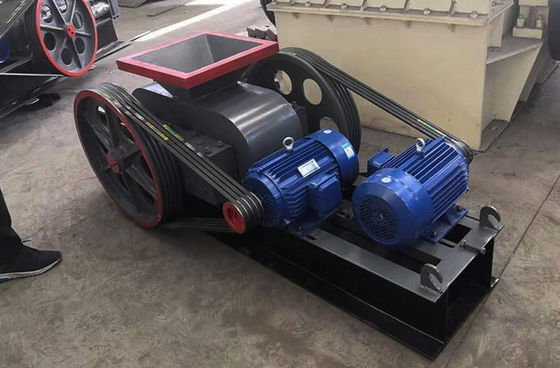

Ore Rock Grinding Mill Machine

Place of Origin China
Brand Name Ascend
Certification CE
Model Number 2PG400x250 2PG610x400 2PG750x500
Minimum Order Quantity 1 set
Price USD 3000-15000 Per set
Packaging Details wooden box or in container
Delivery Time 10 working days
Payment Terms T/T, Western Union
Supply Ability 20 set per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
KEY WORDS Double Roll Crusher Product Name Two Roller Crusher
Spare Parts Material Mn13Cr2 Voltage 380V 50Hz
Catagory Stone Crushing Machine Motor 7.5kwx2
Warranty One Year
High Light

Ore stone crushing machine


Ore Rock grinding mill machine

Leave a Message
Product Description

High efficiency gold ore rock double roller crusher mill

Roller Crusher is used for middle crushing and fine crushing of all kinds of ores and rocks under mid-hardness in mine, chemical industry, cement, building materials and other industrial sections. This crusher has simple structure and can be operated conveniently. Ideal product size depends on adjusting space between two rollers.

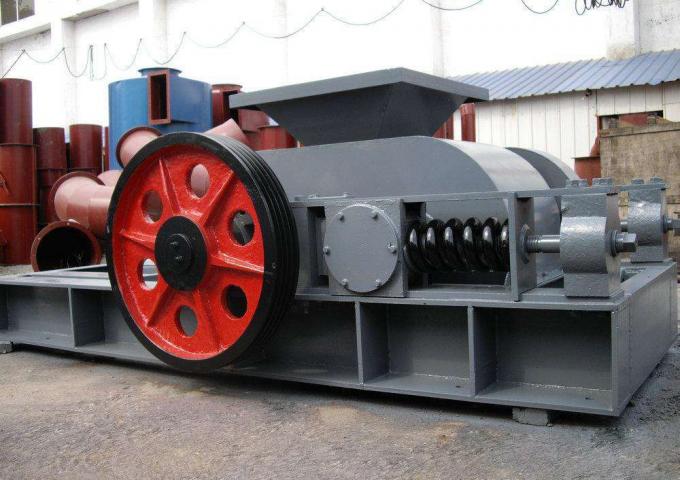

Ore Rock Grinding Mill Machine 0


Working principle

The materials to be crushed fall from the feeding hopper to the space between the two rolls, after being squeezed and crushed, the final products will be discharged by gravity. There are springs behind each roller, in case hard materials are fed, they can protect the rollers from damage.

Ore Rock Grinding Mill Machine 1

Product advantages

  • 1. Available for ore dressing, chemical, cement, refractories, abrasive, building materials industries.
  • 2. With the more excellent effect than general stave machinery.
  • 3. Finely crushing all kinds of ore and rock below the high, medium hardness,which can make the minimum grain size below 100 mesh.
  • 4. Stable operation, easy maintenance, low cost and output size adjustable.

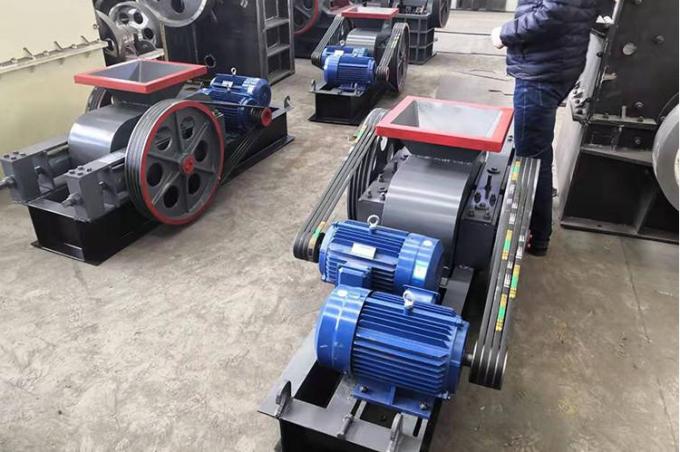

Ore Rock Grinding Mill Machine 2Ore Rock Grinding Mill Machine 3Ore Rock Grinding Mill Machine 4

Product spare parts

Ore Rock Grinding Mill Machine 5

Ore Rock Grinding Mill Machine 6

Product specifications

Technical Parameters of Brand New Smooth Double Roll Crusher
Model Diameter of roller (mm) Length of roller (mm) Max. feeding size (mm) Discharging size (mm) Capacity (t/h) Roller number Rotating speed (r/min) Weight (t) Overall Dimension (L×W×H) (mm) Power (kw)
2PG400×250 400 250 ≤25 2-8 5-10 2 180 1.8 1215×834×830 2×5.5
2PG610×400 610 400 ≤40 2-25 13-40 2 75 4.5 3600×1590×1170 2×15
2PG600×750 600 750 ≤40 2-25 60-125 2 65 6.5 3560×1910×1005 2×22
2PG900×900 900 900 ≤50 2-30 70-150 2 41 15 5665×2530×1646 2×37
2PG900×1200 900 1200 ≤50 2-30 90-210 2 41 18 5665×2830×1646 2×45
Note: Any change of technical data shall not be advised additionally.

Product delivery

The two roller crusher is usually put in wooden box or container according to customer requirements.

Ore Rock Grinding Mill Machine 7

Ore Rock Grinding Mill Machine 8

Ore Rock Grinding Mill Machine 9
