2PG400x250 Double Roll Crusher Machine

  • 2PG400x250 Double Roll Crusher Machine
  • 2PG400x250 Double Roll Crusher Machine
  • 2PG400x250 Double Roll Crusher Machine
  • 2PG400x250 Double Roll Crusher Machine
Place of Origin China
Brand Name Ascend
Certification CE/ISSO9001
Model Number 2PG400x250 2PG610x400 2PG750x500
Document Product Brochure PDF
Minimum Order Quantity 1 set
Price USD 3000-15000 Per set
Packaging Details wooden box or in container
Delivery Time 10 working days
Payment Terms T/T, Western Union
Supply Ability 20 set per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Double Roll Crusher Application Roller Stone Crushing
Spare Parts Material Mn13Cr2 Voltage 380V 50Hz
Catagory Stone Crushing Machine Warranty One Year
Roller Material High Manganese Mn13Cr2 After Sales Service Engineer Site Guidance
Highlight

2PG400x250 roller crushing machine

,

2PG400x250 double roller crusher
Leave a Message
Product Description

High efficiency gold ore rock double roller crusher mill

2 Roll crusher is also called double roll crusher, double teeth roll crusher etc. The surface of roller crusher are made of high manganese steel, which can stand up to heat treatment. Double roller crusher is suitable for rough and intermediate crushing of brittle materials in such industries as cement, chemical industry, electric power, mine, building materials and metallurgy. The grain size of the input material is large, the particle size of the output product can be controlled, and it is possible to effectively destroy the material whose compressive strength is less than 160 MPa



Working principle

The particles are drawn into the gap between the rollers by their rotating motion and a friction angle formed between the rollers and the particle, called the nip angle. The two rollers force the particle between their rotating surface into the ever smaller gap area, and it fractures from the compressive forces presented by the rotating rollers.

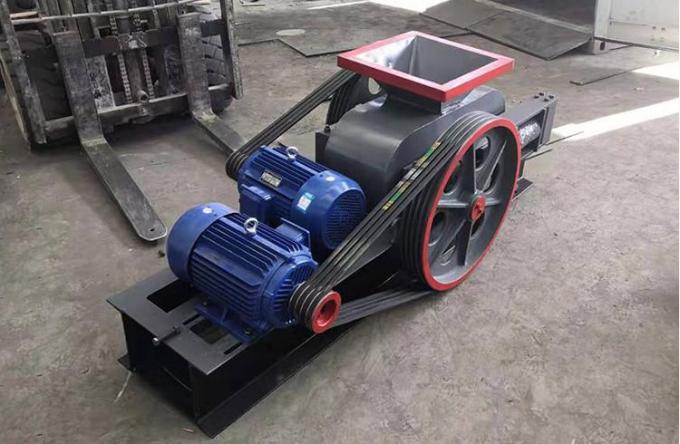

2PG400x250 Double Roll Crusher Machine 0

Product advantages

1. Compact structure, reliable performance
2. Low noise and high efficiency
3. Easy to install and only need simple foundation
4. It can adjust the pressure and size easily, and can be made to meet the customer's request
5. Self-protection, the parts can not be damaged when hard materials such as the metals goes into the crushing cavity
6. Low attrition rate and easy to maintain

2PG400x250 Double Roll Crusher Machine 1

2PG400x250 Double Roll Crusher Machine 2

2PG400x250 Double Roll Crusher Machine 3

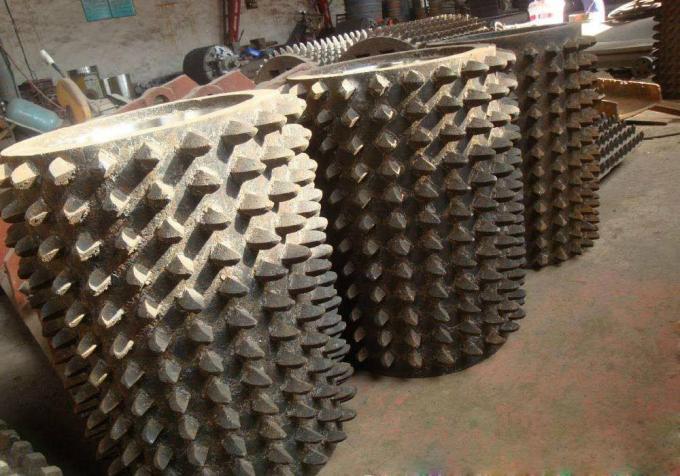

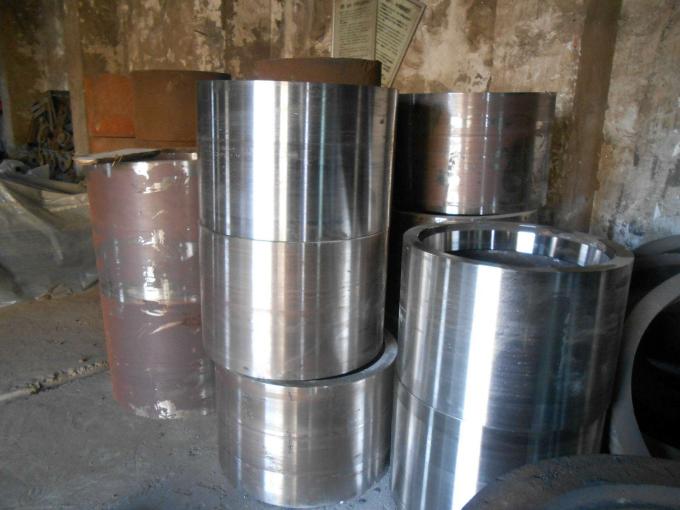

Product spare parts

2PG400x250 Double Roll Crusher Machine 4

2PG400x250 Double Roll Crusher Machine 5

Product specifications

Model

Max. Feeding size

(mm)

Discharge size

(mm)

Capacity

(t/h)

Motor power

(kw)

Weighy

(t)
2PG-400*250 25 1-8 5-10 5.5*2 1.5
2PG-610*400 40 1-20 13-35 15*2 4.5
2PG-750*500 2-20 15-40 18.5*2 12.25
2PG-900*500 3-40 20-50 22*2 14
2PGC450*500 300 15-75 20-45 7.5*2 4.2
2PGC600*750 400 15-125 30-180 18.5*2 7.8
2PGC600*900 40-100 18.5*2 8.4
2PGC600*1200 50-120 22*2 11.2
2PGC800*1000 20-150 80-180 22*2 12.6
2PGC800*1200 100-220 30*2 15.2
2PGC900*900 500 30-150 80-180 30*2 14.5



Product delivery

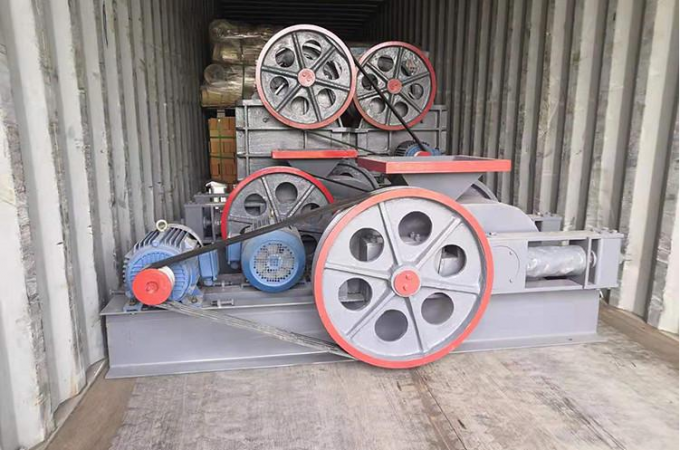

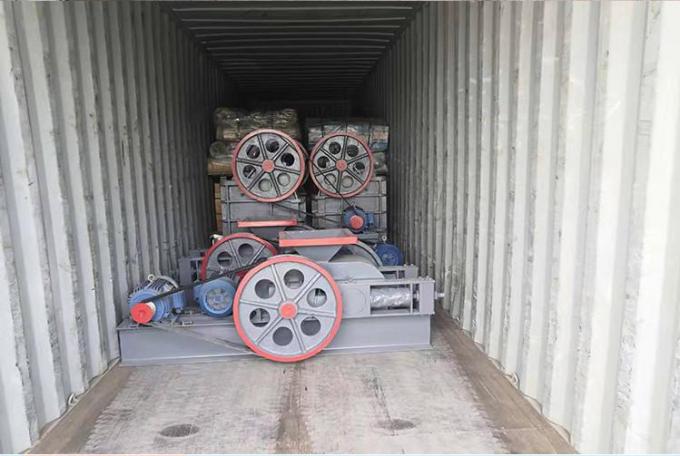

The two roller crusher is usually put in wooden box or container according to customer requirements.

2PG400x250 Double Roll Crusher Machine 6

2PG400x250 Double Roll Crusher Machine 7

2PG400x250 Double Roll Crusher Machine 8
