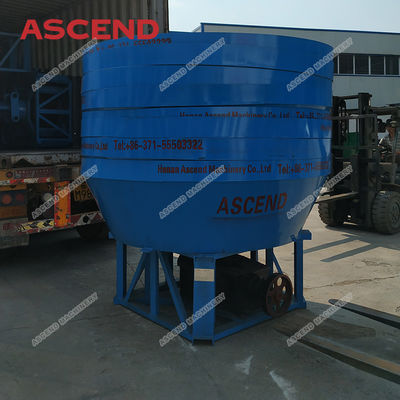

Mining Gold Wet Pan Mill For Ore Benefication Wet Pan Mill Grinding Machine Manufacturer
| Place of Origin | China |
|---|---|
| Brand Name | ASCEND |
| Certification | CE |
| Model Number | 1 Set |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 1 Set |
| Price | 4000-5000 USD Per Set |
| Packaging Details | wooden box in container |
| Delivery Time | 10 Days |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 100 set per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Wet Pan Mill | Feeding Size | Different Needs |
|---|---|---|---|
| Advantages | High Productivity | Application | Metal Materials,gold Ore |
| Grinding Material | Metal Materials | Keywords | Wet Pan Grinding Mill |
| Motor Type | AC Motor | Warranty | 12 Months |
Product Description
Product Description
Wet pan mill is widely used for selecting ferrous metals, nonferrous metals and nonmetals, as well as precious metals like gold and silver. Based on the different structure, it is divided into double roller grinding and three roller grinding. It is the excellent equipment which can take the place of ball mill. It is the idea equipment for medium-sized and small enterprises.
Working Principle
The pan mill mainly include power plant, frame, birdbath, grinding wheel, pan and other parts, using moving wheel to grind the ores.
It grinds ores by wheel driving force. Firstly, the power is transferred from the motor to the reducer, then to the horizontal shaft, and finally to the grinding wheel; the wheels then rotate anticlockwise. The wheels can revolve around the vertical shaft of the pan mill, and at the same time, it can revolve on its own axis, while the grinding base will remain still. The ores are pressed, rubbed and grinded repeatedly.
Main Features of Wet Pan Mill
1) Low investment,
2) Low consumption,
3) High production capacity,
4) High efficiency,
5) Easy installation and maintenanc
Mill Wet pan mill machine use and mintenc
1.The normal operation of the mill, before they start feeding.
2, this machine prohibit strip start, the outage at boot time, you must first clean up the residual ore in the middle of the milled slot and then start.3, should be uniform feeding not erratic, it is best to use the feeder.
4, bearing frequent butter, gear box or car rear axle with frequent checks whether the loss of gear oil.
5, regular checks of the various parts of the screw is loose.
6.Found bearing damage must be promptly replaced, shaft eccentric avoid damage to other parts .
7 When the mill is running, pay attention to whether there is any abnormal sound in the reducer or bearing part, whether the temperature is too high, whether the motor current is too high and other abnormal phenomena; if so, stop the mill immediately.
Spare parts
Technical parameters
| Model | Type(mm) | Max feed size(mm) | Capacity(t/h) | Power(Kw) | Weight(ton) |
| 1600 | 1600x350x200x460 | <25 | 1-2 | Y6L-30 | 13.5 |
| 1500 | 1500x300x150x420 | <25 | 0.8-1.5 | Y6L-22 | 11.3 |
| 1400 | 1400x260x150x350 | <25 | 0.5-0.8 | Y6L-18.5 | 8.5 |
| 1200 | 1200x180x120x250 | <25 | 0.25-0.5 | Y6L-7.5 | 5.5 |
| 1100 | 1100x160x120x250 | <25 | 0.15-0.25 | Y6L-5.5 | 4.5 |
| 1000 | 1000x180x120x250 | <25 | 0.15-0.2 | Y6L-5.5 | 4.3 |
Packaging and shipping
You May Also Like
Ball Mill Jaw Crusher Hammer Crusher
2-Roller Crusher Cone Crusher Impact Crusher
Company information
- Ascendmachinery expands its business in more than 160 countries and regions
- Henan Ascend Machinery & Equipment Co., Ltd. was established in 2005 and it is located in the high-tech zone of Zhengzhou City, Henan Province. As a technology driven mining equipment company, it is committed to the R&D, production, sales and after-sales service of mining machinery and equipment.
- The company's main products are crushers, grinding mill equipment, mineral beneficiation equipment, rotary dryer and crusher & grinding mill spare parts. In addition to the Chinese domestic market.
FAQ
Q1: Are you trading company or manufacturer?
A: We are factory.
Q2: How long is your delivery time?
A: Generally it is 7-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
Q3: What is your payment method?
A: 30% of total price should be paid by T/T as down payment; 70% balance payment should be paid by T/T before delivery.
Q4: What Information should customers give us, So that we can be able to provide you suitable quotation and service.
What minerals are you separating?
What's the maximum size of your raw minerals?
How much capacity do you need per hour for your project?
Q5: How long is the warrenty of your equipments? Does your company supply the spare parts?
A: The warranty period of crusher equipments is one year. and we will supply the spare parts for you at lowest cost.
A: The warranty period of crusher equipments is one year. and we will supply the spare parts for you at lowest cost.
Q6: If I need the complete crushing plant can you help us to build it?
A: Yes, we can help you combine a complete crushing line and give you related professional advices as long as you need. We had already build many mining projects in China & Overseas.
Q7:what's your motor brand?what bearing do you use?
For Motor-China top brand, also can use Siemens as per request .
For Bearing China top brand ZWZ, also can use SKF/NSK etc as per request
