Wet Pan Mill For Gold Wet Pan Mill Clay Brick Clay Gold Grinding Machine 1200
Place of Origin | China |
---|---|
Brand Name | ASCEND |
Certification | CE |
Model Number | 1 Set |
Document | Product Brochure PDF |
Minimum Order Quantity | 1 SET |
Price | 4000-5000 USD Per Set |
Packaging Details | wooden box in container |
Delivery Time | 10 Days |
Payment Terms | L/C, T/T, Western Union, MoneyGram |
Supply Ability | 100 set per month |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | Wet Pan Mill | Feeding Size | Requiremend |
---|---|---|---|
Advantages | High Productivity | Application | Metal Materials,gold Ore |
Grinding Material | 200+ Materials | Keywords | Wet Pan Grinding Mill |
Motor Type | AC Motor | Warranty | 1 Year |
Product Description

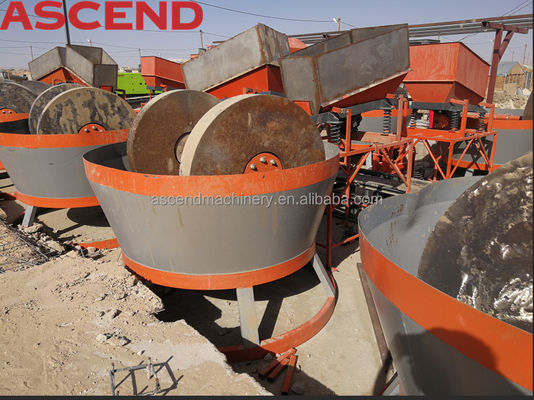

Gold Grinding Machine (wet pan mill), which is named by the diameter of grinding roller. It ismainly applied for grinding rock gold ore. In Sudan, at least 85% gold miners are using the machine in their gold processing system. The most important point is that our customers can get pure gold directly after wet pan mill, which is suitable for miners who want to begin from small business.Among the models, model 1200 is the most popular one.
Working Principle
The main parts of the wet mill are driving shaft, bearing seat, roller, speed reducer, motor and so on.
First, the motor transfers power to the decelerator, then the central drive shaft transfers to the horizontal shaft, finally the Roller moves the anticlockwise direction, the material in the wet mill is ground into fine particles.
Main Features of Wet Pan Mill
- It has the features of low investment, low consumption, high production capacity, high efficiency, easy installation and maintenance.
- The grinding wheels and grinding base are made of high manganese steel. They are very hard and rigid, thus using life doubled.
Spare parts
Technical parameters
Model | Type(mm) | Max feed size(mm) | Capacity(t/h) | Power(Kw) | Weight(ton) |
1600 | 1600x350x200x460 | <25 | 1-2 | Y6L-30 | 13.5 |
1500 | 1500x300x150x420 | <25 | 0.8-1.5 | Y6L-22 | 11.3 |
1400 | 1400x260x150x350 | <25 | 0.5-0.8 | Y6L-18.5 | 8.5 |
1200 | 1200x180x120x250 | <25 | 0.25-0.5 | Y6L-7.5 | 5.5 |
1100 | 1100x160x120x250 | <25 | 0.15-0.25 | Y6L-5.5 | 4.5 |
1000 | 1000x180x120x250 | <25 | 0.15-0.2 | Y6L-5.5 | 4.3 |
Packaging and shipping
You May Also Like
Ball Mill Jaw Crusher Hammer Crusher
2-Roller Crusher Cone Crusher Impact Crusher
Company information
- Ascendmachinery expands its business in more than 160 countries and regions
- Henan Ascend Machinery & Equipment Co., Ltd. was established in 2005 and it is located in the high-tech zone of Zhengzhou City, Henan Province. As a technology driven mining equipment company, it is committed to the R&D, production, sales and after-sales service of mining machinery and equipment.
- The company's main products are crushers, grinding mill equipment, mineral beneficiation equipment, rotary dryer and crusher & grinding mill spare parts. In addition to the Chinese domestic market.
FAQ
Q1: Are you trading company or manufacturer?
A: We are factory.
Q2: How long is your delivery time?
A: Generally it is 7-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
Q3: What is your payment method?
A: 30% of total price should be paid by T/T as down payment; 70% balance payment should be paid by T/T before delivery.
Q4: What Information should customers give us, So that we can be able to provide you suitable quotation and service.
What minerals are you separating?
What's the maximum size of your raw minerals?
How much capacity do you need per hour for your project?
A: The warranty period of crusher equipments is one year. and we will supply the spare parts for you at lowest cost.
