Mining Equipment Wet Grinding Pan Mill Mining Equipment Small Scale Rock 1200

Place of Origin China
Brand Name ASCEND
Certification CE
Model Number 1 Set
Minimum Order Quantity 1 SET
Price 4000-5000 USD Per Set
Packaging Details wooden box in container
Delivery Time 10 Days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 100 set per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Wet Pan Mill Feeding Size Requiremend
Advantages High Productivity Application Iron Ore ,metal Materials
Grinding Material 200+ Materials Keywords Wet Pan Grinding Mill
Motor Type AC Motor Warranty 1 Year
Leave a Message
Product Description

Product Description

A wet pan mill is the best equipment to replace a ball mill. because it has small investment, high output, low production cost, good efficiency, and easy installation. And the machine is the ideal beneficiation equipment for small and medium-sized enterprises. A wet pan mill is mainly used to process gold, silver, lead, zinc, iron, molybdenum, copper, and antimony. The wet pan mill is named by the diameter of the roller. Φ1300, Φ 1350, Φ 1400, Φ 1500, Φ 1600 are suitable for the selection of iron ore, molybdenum ore, lead ore, zinc ore, antimony ore, and so on. Φ 850, Φ 900, Φ 1000, Φ 1100, Φ 1200 is suitable for selection of gold ore. Above all, the 1200a type is the most popular and widely used.

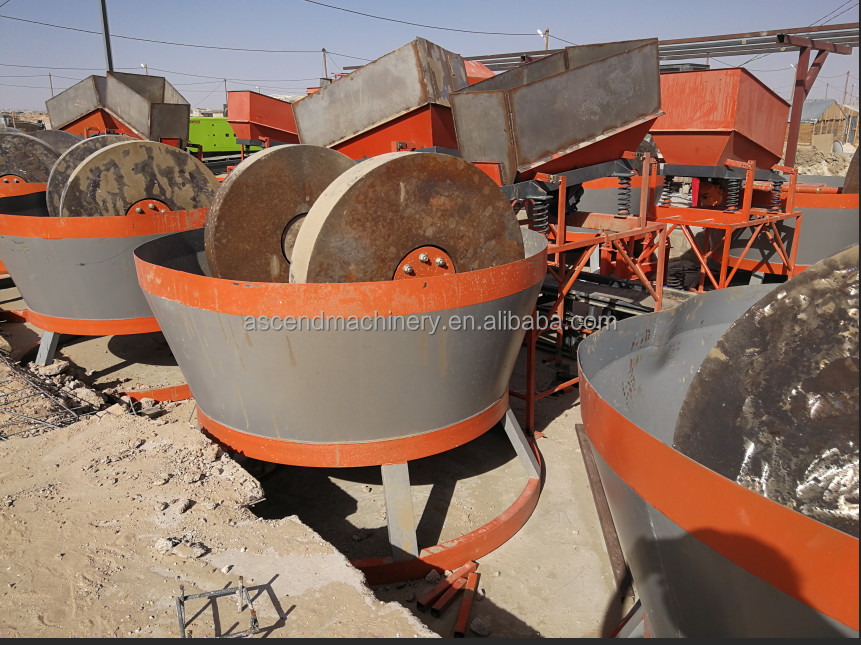

Mining Equipment Wet Grinding Pan Mill Mining Equipment Small Scale Rock 1200 0

.jpg


Working Principle

Firstly reduction box would be driven by the motor, then under the drive of reduction box, the torque is transmitted to the upper cross axle through the large vertical shaft and then to the runner wheels through the straining beams installed on both ends of the cross axle. The runner wheels are driven to rotate anti clockwise along the horizontal direction of the cross axle. When the runner wheels are working, they could not only revolve around the large vertical shaft of the wet pan mill, but also revolve their own axles. The grinding base stays fixed at the same time. The added mineral materials are thoroughly crushed and grinded under the force of the runner wheels’ body weight,the huge friction force between the runner wheels and grinding base which is produced by the runner wheels’ revolution and autorotation, as well as the repeated squeeze,curlating, and grinding.


Main Features of Wet Pan Mill

1. Low investment;

2. High yield;

3. Low production costs;

4. Good efficiency;

5. High density;

6. Perfect strength



Spare parts



spare parts1.png

Technical parameters



Model Type(mm) Max feed size(mm) Capacity(t/h) Power(Kw) Weight(ton)
1600 1600x350x200x460 <25 1-2 Y6L-30 13.5
1500 1500x300x150x420 <25 0.8-1.5 Y6L-22 11.3
1400 1400x260x150x350 <25 0.5-0.8 Y6L-18.5 8.5
1200 1200x180x120x250 <25 0.25-0.5 Y6L-7.5 5.5
1100 1100x160x120x250 <25 0.15-0.25 Y6L-5.5 4.5
1000 1000x180x120x250 <25 0.15-0.2 Y6L-5.5 4.3

Packaging and shipping
