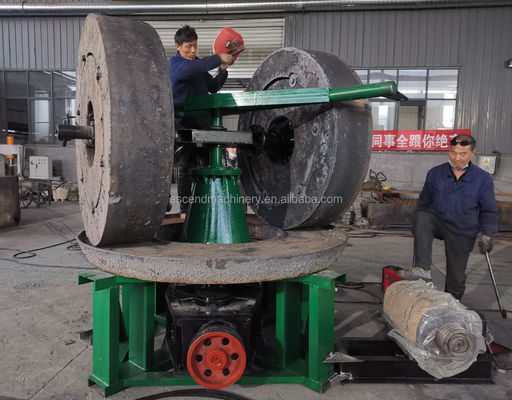

Wet Pan Mill Gold Milling Machine Stone Rock Gold Ore Grinder Grinding 1500

Place of Origin China
Brand Name ASCEND
Certification CE
Model Number 1 Set
Minimum Order Quantity 1 SET
Price 4000-5000 USD Per Set
Packaging Details wooden box in container
Delivery Time 10 Days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 100 set per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Wet Pan Mill Feeding Size Different Needs
Advantages Long Time Application Iron Ore
Grinding Material Metal Minerals,meal Keywords Wet Pan Grinding Mill
Motor Type AC Motor Warranty 1 Year
Leave a Message
Product Description

Product Description

Gold granding machine will cooperate with materials and water to join in mixed , when they mix, the process will have a functions of stirring and squeezing, cone wet grinding machine can remove the air between materials, even stir, moistening, can make material to be grind fineness.Gold granding machine is the machine for grind gold, and less lost, high yield, convenient to move, less consumption energy, moderate price, easy operation, it is a machine for customers to beneficiation of gold, silver, lead, zinc, iron, molybdenum, copper, antimony, etc.

wet pan mill (104).jpg

.jpg


Working Principle

This wet pan mill mainly include power plant, frame, birdbath, grinding wheel, pan and other parts, using moving wheel grinding work way: first of all, the grinding pan mill motor will transmit power to the reducer, by the reducer, through a large vertical pass torque at the top of the horizontal axis and then it through a horizontal two axis pull rod to grinding wheel, the grinding wheel have driving force, along the horizontal axis do counterclockwise motion; Studio of the grinding wheel can be turning around wet mill big vertical shaft, and around the wheel of center shaft rotation, pan is stationary; Add ore materials, in the mill from the extrusion wheel of its own weight, grinding wheel with the pan during the revolution of great friction, by repeated after extrusion, kneading, grinding, were crushed.


Main Features of Wet Pan Mill

1. Less investment.

2. Easy to operation and maintenance.

3. High efficiency and saving power.

4. It can take the place of ball mill because all the materials that ball mill can handle, the wet mill machine can handle as well.

5. The Best price river gold widely used Sudan China wet pan mill for gold is the ideal equipment for small and medium enterprises that are in the field of ore dressing.

6. The wet mill machine made by ASCEND, can offer the seal cover to reduce the air pollution.



Spare parts



spare parts1.png

Technical parameters



Model Type(mm) Max feed size(mm) Capacity(t/h) Power(Kw) Weight(ton)
1600 1600x350x200x460 <25 1-2 Y6L-30 13.5
1500 1500x300x150x420 <25 0.8-1.5 Y6L-22 11.3
1400 1400x260x150x350 <25 0.5-0.8 Y6L-18.5 8.5
1200 1200x180x120x250 <25 0.25-0.5 Y6L-7.5 5.5
1100 1100x160x120x250 <25 0.15-0.25 Y6L-5.5 4.5
1000 1000x180x120x250 <25 0.15-0.2 Y6L-5.5 4.3

Packaging and shipping



You May Also Like



ball mill (22) QQ20230504180748.jpg hammer crusher 24



          Ball Mill                        Jaw Crusher               Hammer Crusher

-14spring cone crusher (9)14



    2-Roller  Crusher                Cone Crusher              Impact Crusher

Company information

  • Ascendmachinery expands its business in more than 160 countries and regions
  • Henan Ascend Machinery & Equipment Co., Ltd. was established in 2005 and it is located in the high-tech zone of Zhengzhou City, Henan Province. As a technology driven mining equipment company, it is committed to the R&D, production, sales and after-sales service of mining machinery and equipment.
  • The company's main products are crushers, grinding mill equipment, mineral beneficiation equipment, rotary dryer and crusher & grinding mill spare parts. In addition to the Chinese domestic market.Wet Pan Mill Gold Milling Machine Stone Rock Gold Ore Grinder Grinding 1500 15Wet Pan Mill Gold Milling Machine Stone Rock Gold Ore Grinder Grinding 1500 16

FAQ

Q1: Are you trading company or manufacturer?

A: We are factory.



Q2: How long is your delivery time?

A: Generally it is 7-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.



Q3: What is your payment method?

A: 30% of total price should be paid by T/T as down payment; 70% balance payment should be paid by T/T before delivery.



Q4: What Information should customers give us, So that we can be able to provide you suitable quotation and service.

What minerals are you separating?

What's the maximum size of your raw minerals?
How much capacity do you need per hour for your project?


Q5: How long is the warrenty of your equipments? Does your company supply the spare parts?
A: The warranty period of crusher equipments is one year. and we will supply the spare parts for you at lowest cost.

Q6: If I need the complete crushing plant can you help us to build it?
A: Yes, we can help you combine a complete crushing line and give you related professional advices as long as you need. We had already build many mining projects in China & Overseas.

Q7:what's your motor brand?what bearing do you use?
For Motor-China top brand, also can use Siemens as per request .
For Bearing China top brand ZWZ, also can use SKF/NSK etc as per request
