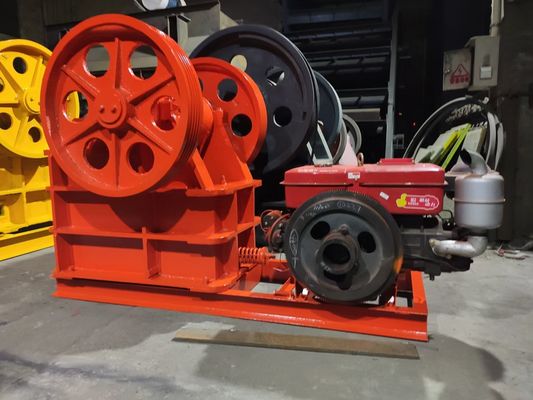

Quarrying And Mining Jaw Stone Crusher Machine Easy Operation

  • Quarrying And Mining Jaw Stone Crusher Machine Easy Operation
  • Quarrying And Mining Jaw Stone Crusher Machine Easy Operation
  • Quarrying And Mining Jaw Stone Crusher Machine Easy Operation
Place of Origin China
Brand Name Ascend
Certification ISO9001
Model Number PE250x400 PE400x600 PE500x750
Document Product Brochure PDF
Minimum Order Quantity 1 set
Packaging Details Wooden box or put in container
Delivery Time 10-20 working days
Payment Terms T/T, Western Union, MoneyGram, L/C
Supply Ability 20 Set per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Rock Jaw Crusher Motor 15KW
Weight 2.3t Function Crushing Stone
Feature Easy Operation Jaw Plate Material Mn13Cr2
Highlight

Mining Jaw Stone Crusher Machine

,

Quarrying Jaw Stone Crusher Machine

,

Quarrying rock jaw crusher
Leave a Message
Product Description

Quarrying And Mining Jaw Stone Crusher Machine Easy Operation



Jaw Stone Crusher Machine is the primary crushing equipment in the crushing production line, it's used to crush the large stone (300-1200mm) into medium size (100-200mm), the fine type jaw crusher can produce 0-40mm aggregate.



Quarrying And Mining Jaw Stone Crusher Machine Easy Operation 0

Jaw crusher advantages

1.Simple structure ensures the crushing machine is not easy to break down.

2.Easy operation, which makes the crusher can be operated by common people.

3.High crushing ratio. Large stone lump can be quickly crushed into small particles.

4.Energy saving. The jaw crusher power amount is consumed less than other type of crushers.

5.Low cost, economically afforadable.

Quarrying And Mining Jaw Stone Crusher Machine Easy Operation 1

Jaw crusher overview

Motor drives V-belt and belt pulley to make moving jaw do periodic motion by eccentric shaft. Moving jaw moves upwards to the fixed jaw when angle between toggle plate and moving jaw increases, so materials are crushed in this process.

Quarrying And Mining Jaw Stone Crusher Machine Easy Operation 2



Jaw crusher spare parts

Quarrying And Mining Jaw Stone Crusher Machine Easy Operation 3



Jaw crusher specifications

Model Feed opening
size
(mm)		 Max
feed
size(mm)		 Adjustable
range
(mm)		 Capacity
(t/h)		 Eccentric shaft
rotary speed
(r/min)		 Motor
power
(kw)		 Total weight
(t)		 Overall dimensions
(L*W*H)(mm)
PE-150×250 150×250 125 10-40 1-3 250 5.5 0.8 720×660×850
PE-200×300 200×300 180 15-50 2-6 260 7.5 1.2 910×750×990
PE-200×350 200×350 180 18-70 3-10 260 11 1.5 1000×870×990
PE-250×400 250×400 210 20-60 5-20 300 15 2.8 1300×1090×1270
PE-400×600 400×600 340 40-100 16-60 275 30 7 1730×1730×1630
PE-500×750 500×750 425 50-100 40-110 275 55 12 1980×2080×1870
PE-600×750 600×750 500 150-200 80-240 275 55 15.8 2070×2000×1920
PE-600×900 600×900 500 65-160 50-180 250 55 17 2190×2206×2300
PE-750×1060 750×1060 630 80-140 110-320 250 90-110 29 2660×2430×2800
PE-800×1060 800×1060 640 160-220 130-330 250 110 29.8 2710×2430×2800
PE-830×1060 830×1060 650 160-220 150-336 250 110 30.7 2740×2430×2800
PE-870×1060 870×1060 660 200-260 190-336 250 110 31.5 2810×2430×2800
PE-900×1060 900×1060 685 230-290 230-390 250 110 33 2870×2420×2940
PE-900×1200 900×1200 750 95-165 220-450 200 110 52 3380×2870×3330
PE-1000×1200 1000×1200 850 195-265 315-500 200 110 55 3480×2876×3330
PE-1200×1500 1200×1500 1020 150-300 400-800 180 160 100.9 4200×3300×3500
PEX-150×750 150×750 120 18-48 8-25 320 15 3.8 1200×1530×1060
PEX-250×750 250×750 210 25-60 13-35 330 30 5.5 1380×1750×1540
PEX-250×1000 250×1000 210 25-60 16-52 330 30 7 1560×1950×1390
PEX-250×1200 250×1200 210 25-60 20-61 330 37 9.7 2140×1660×1500
PEX-300×1300 300×1300 250 20-90 16-105 300 55 15.6 2720×1950×1600
