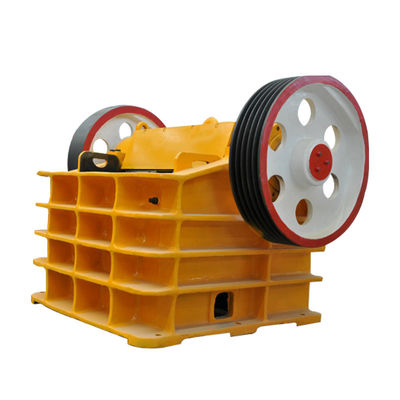

Mobile Vibrating Screening Jaw Stone Crusher Machine 70-130 T/H
Place of Origin | China |
---|---|
Brand Name | Ascend |
Certification | ISO9001 |
Model Number | PE200x300 PE220x350 PE250x400 PE400x600 |
Document | Product Brochure PDF |
Minimum Order Quantity | 1 set |
Price | USD 15000-25000 |
Packaging Details | Wooden box or put in container |
Delivery Time | 7-10 working days |
Payment Terms | T/T, Western Union, MoneyGram, L/C |
Supply Ability | 50 Sets per month |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xName | Jaw Stone Crusher Machine | Function | Stone Crashing |
---|---|---|---|
Type | Fixed Or Portable Jaw Crusher | Condition | New |
Warranty | 1 Year | After-sales Service Provided | Engineers Available To Service Machinery Overseas |
Capacity(t/h) | 70-130 | Application | Quarry, Mining |
Highlight | Vibrating Screening Jaw Stone Crusher Machine,Mobile Jaw Stone Crusher Machine,130 T/H Jaw Stone Crusher Machine |
Mobile Jaw Stone Crusher Machine is a complete mobile crushing and screening plant which consists of raw material bins which located on one or more trailers, vibrating feeders, primary crushers, multi-layer vibrating screens, secondary crushers, fine crushers, mobile belt conveyors, sand washers, electric control systems and etc.;
Customer Requirements:
Raw material: pebble stone
Input Material size: 350mm
Final Products: 0-4mm, 4-13mm, 13-19mm, 19-25mm four kinds of coarse sand and gravels.
Production Process: This production plant adopts coarse crushing, medium crushing and screening processes to produce four types of sand and gravel products. The specific process is to use truck to put the raw material into the hopper, and then raw stone is conveyed into the coarse crushed jaw crusher through the vibrating feeder. After being crushed, it is transported to the medium fine crushing PEX series jaw crusher by the belt conveyor, and then the crushed stone is conveyed to the vibrating screen through the belt conveyor. The qualified output sizes are screened out and conveyed by the conveyor. The over sized aggregates are returned back to the fine jaw crusher for recrushing. This process forms into a close circuit and work continuously.
The main line of this production line is:
1 set of PE400×600 jaw crusher;
2 sets of PEX250×1000 jaw crusher;
1 set of 3YK1237 circular vibrating screen;
Auxiliary equipment: Vibrating feeder, belt conveyors form a production line.
Jaw crusher specifications
Model
|
Feed opening
(mm) |
Max.feeding size
(mm) |
Adjusting range of discharge opening
(mm) |
Processing capacity
(t/h) |
Rotation speed of eccentric shaft
(r/min) |
Motor power
(kw) |
Total weight
(t) |
Dimensions
(L×W×H) (mm) |
PE-150×250 | 150×250 | 125 | 10-40 | 1-3 | 250 | 4P 5.5 | 0.8 | 720×660×850 |
PE-200×300 | 200×300 | 180 | 15-50 | 2-6 | 260 | 4P 7.5 | 1.2 | 910×750×990 |
PE-200×350 | 200×350 | 180 | 18-70 | 3-10 | 260 | 4P 11 | 1.5 | 1000×870×990 |
PE-250×400 | 250×400 | 210 | 20-60 | 5-20 | 300 | 6P 15 | 2.8 | 1300×1090×1270 |
PE-400×600 | 400×600 | 340 | 40-100 | 16-60 | 275 | 6P 30 | 7 | 1730×1730×1630 |
PE-500×750 | 500×750 | 425 | 50-100 | 40-110 | 275 | 6P 55 | 12 | 1980×2080×1870 |
PE-600×750 | 600×750 | 500 | 150-200 | 80-240 | 275 | 6P 55 | 15.8 | 2070×2000×1920 |
PE-600×900 | 600×900 | 500 | 65-160 | 50-180 | 250 | 6P 55 | 17 | 2190×2206×2300 |
PE-750×1060 | 750×1060 | 630 | 80-140 | 110-320 | 250 | 8P 110 | 29 | 2660×2430×2800 |
PE-800×1060 | 800×1060 | 640 | 130-190 | 130-330 | 250 | 8P 110 | 29.8 | 2710×2430×2800 |
PE-830×1060 | 830×1060 | 650 | 160-220 | 150-336 | 250 | 8P 110 | 30.7 | 2740×2430×2800 |
PE-870×1060 | 870×1060 | 660 | 200-260 | 190-336 | 250 | 8P 110 | 31.5 | 2810×2430×2800 |
PE-900×1060 | 900×1060 | 685 | 230-290 | 230-390 | 250 | 8P 110 | 33 | 2870×2420×2940 |
PE-900×1200 | 900×1200 | 750 | 95-165 | 220-450 | 200 | 8P 110 | 52 | 3380×2870×3330 |
The detailed flow chart is as follows:
Conclusion:
The design of this project is simple and the selected equipment is mature and stable. After 20 working days of production in the Chinese factory, it is delivered on time. The post-installation and commissioning work progressed smoothly. It was successfully put into operation at the end of November, and the sand and gravel products produced satisfies the needs of the local small-scale construction market. The production and sales of the factory are booming.
