Stone Sand Making Vertical Compound Crusher Vsi Crusher Machine

Place of Origin China
Brand Name Ascend
Certification CE/ISSO9001
Model Number PFL800 PFL1000 PFL1250 PFL1500
Minimum Order Quantity 1 set
Price USD 3500-35000 Per set
Packaging Details Water and rust proof in wooden box or cotainer
Delivery Time 7-10 working days
Payment Terms T/T, Western Union
Supply Ability 10 set per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Vertical Shaft Impact Crusher Application Sand Making Crusher Machine
Warranty One Year And Half Motor AC Motor
Key Words Sand Maker Machine Capacity 10-120 Ton Pe Hour
Color Customized Warranty 1 Year
Dimension(l*w*h) Customized The Machines Classification Building Stone Production Line,strong Crusher Machine,Crushing Equipment
Installation Engineer Guide
High Light

Sand Making Vertical Compound Crusher

,

Stone Vertical Compound Crusher

,

Sand Making Vsi Crusher Machine

Leave a Message
Product Description

Stone Sand Making Vertical Shaft Impact Crusher compound crusher machine

Composite crusher, also called compound crusher,vertical compound crusher, is a kind of crushing machine which combining the advantages of impact crushers and hammer crushers. It has the characteristics of high reduction ratio, low power consumption, stable performance and easy maintenance, etc.

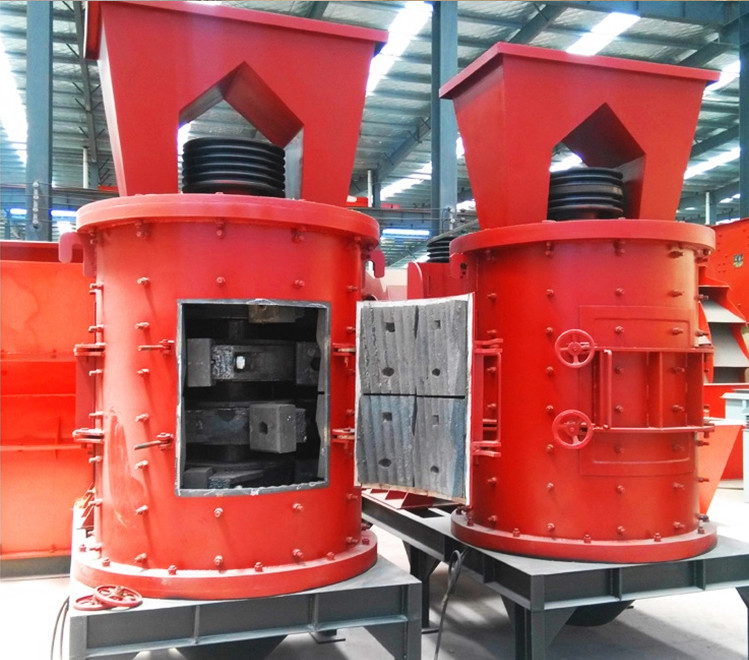

Stone Sand Making Vertical Compound Crusher Vsi Crusher Machine 0

Working principle

Heavy-duty compound crusher, also known as good Sand making crusher machine, is a new type of sand making machine developed by our company in 2015 according to the crushing principle of three crushing equipments: counterattack crushing, impact crushing and cone crushing. Its advantage is that it can turn three-stage crushing into two-stage crushing, reducing the investment cost of customers, and make use of the new crushing principle. Different diameter of rotor is used to achieve different linear velocity for broken materials with different particle sizes from large to small, which makes the materials receive different counterattack strength.

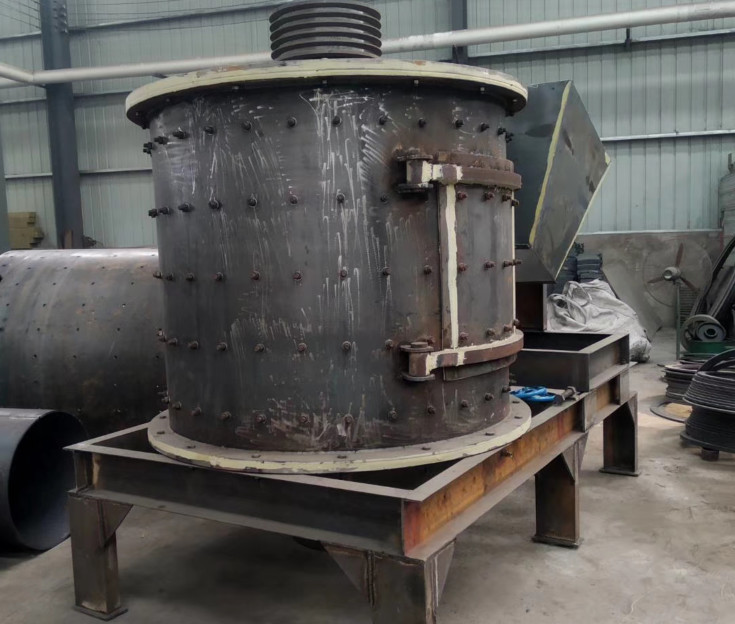

Stone Sand Making Vertical Compound Crusher Vsi Crusher Machine 1



Application of the compound vertical crusher machine

Our compound crusher is mainly used to crush cement raw materials and cement clinker. It can also be applied to crush iron ore, sandstone, plaster, coal gangue, lump coal, limestone, dolomite, granite, basalt and other stones. Composite crusher is a kind of no screen, adjustable fine crushing machine. It is optimal designed on the basis of advanced fine crushing technology both at home and abroad. It is mainly adapted to medium-sized raw materials and clinkers , at the same time can also be used for fine-crush dolomite, coke precious stones, lead-zinc, serpentine, blast furnace slag, coal gangue , phosphate rock materials with medium hardness , especially suitable for hard limestone, dolomite, granite, basalt artificially build sand or highway pavement stone processing.

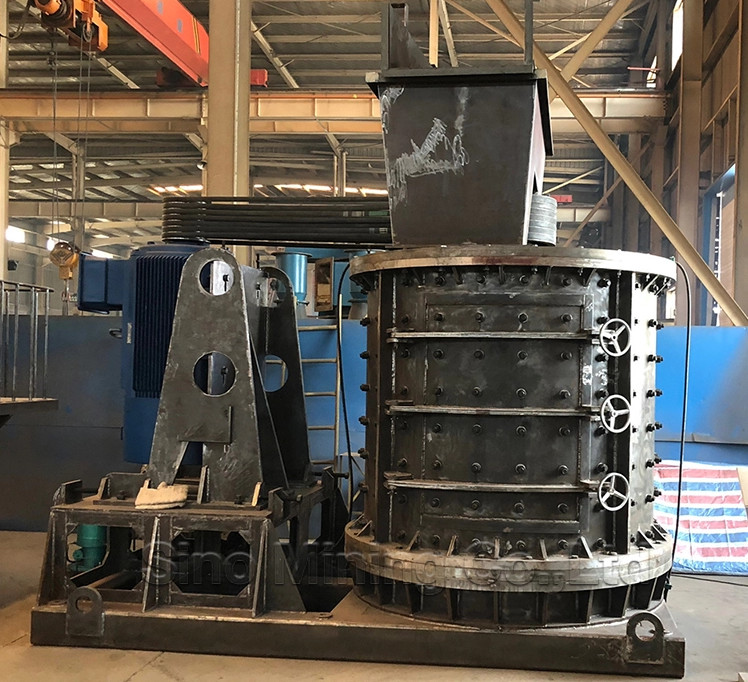

Stone Sand Making Vertical Compound Crusher Vsi Crusher Machine 2

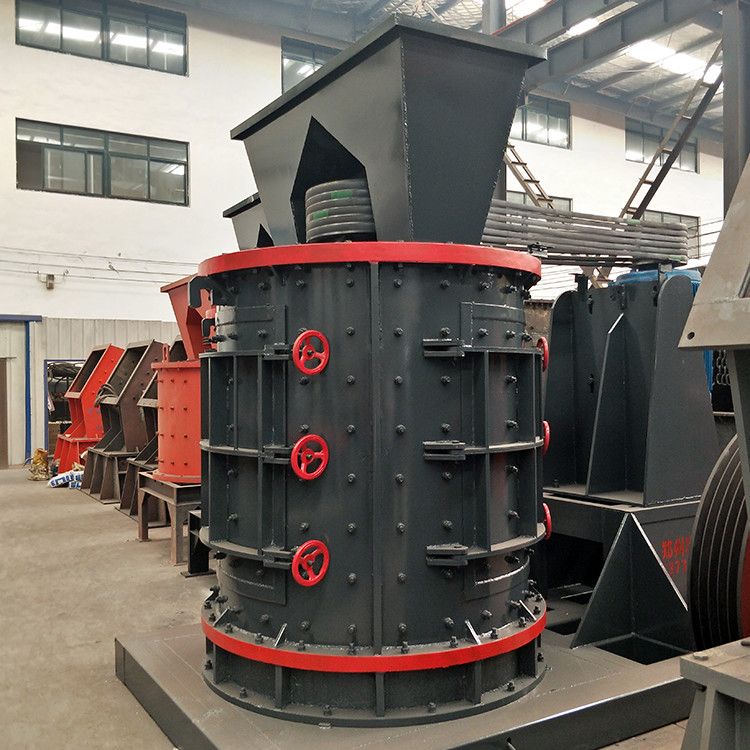

Stone Sand Making Vertical Compound Crusher Vsi Crusher Machine 3

Specifications

Model PFL-800 PFL-1000 PFL-1250 PFL-1500 PFL-1750
Feed Grain(mm) 100 120 150 180 200
Material-in Size (mm) 0-5 0-5 0-5 0-5 0-5
Trening Capacity(t/h) 10-20 20-40 40-70 70-100 130-190
Motor Power (kw) 22 45-55 75 90-110 132-160
Maine Shaft Speed(r/min) 934 769 530 495 424
Overall Dimension(mm) 2100*1200*1700 2600*1400*1900 2800*1600*2100 3100*1900*2200 3710*2360*2390
Weight(t) 2.3 4.5 6.2 8.3 12

Compound crusher spare parts

The major wearing parts of the compound crusher is impact plates and hammers. The impact plates are made of high manganese alloy Mn13Cr2, and hammers are made of extremely wearable materials Cr26NiMo.

Stone Sand Making Vertical Compound Crusher Vsi Crusher Machine 4

Stone Sand Making Vertical Compound Crusher Vsi Crusher Machine 5

Customer working site

Stone Sand Making Vertical Compound Crusher Vsi Crusher Machine 6

Stone Sand Making Vertical Compound Crusher Vsi Crusher Machine 7
