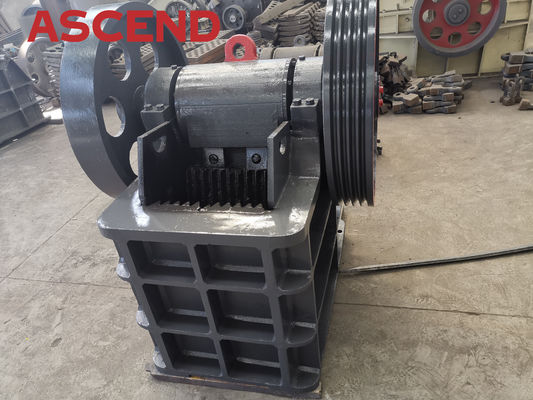

CCS Quarrying Mining 15KW Jaw Stone Crusher Machine
Place of Origin | China |
---|---|
Brand Name | Ascend |
Certification | ISO9001 |
Model Number | PE250x400 PE400x600 PE500x750 |
Document | Product Brochure PDF |
Minimum Order Quantity | 1 set |
Packaging Details | Wooden box or put in container |
Delivery Time | 10-20 working days |
Payment Terms | T/T, Western Union, MoneyGram, L/C |
Supply Ability | 20 Set per month |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xName | Jaw Crusher Machine | Motor | 15KW |
---|---|---|---|
Weight | 2.3 Ton | Function | Crushing Stone |
Spare Parts | Fixed And Movable Jaw Plates | Jaw Plate Material | Mn13Cr2 |
Highlight | 15KW Jaw Stone Crusher Machine,CCS Jaw Stone Crusher Machine,CCS Quarrying Jaw Stone Crusher |
2020 popular rock stone jaw crusher PE250x400 crushing machine
Widely used in the Quarrying and Mining industries, the PE Series Jaw Crushers are Single Toggle Roller Bearing machines designed to operate as Primary crushing units in medium to hard rock applications. The swing jaw is activated by an eccentric main shaft which lifts and thrusts the swing jaw towards the fixed jaw, thus creating the crushing action.
The crusher discharge setting (CCS) is variable by mechanical shim adjustment of the swing jaw behind the toggle plate.
eccentric main shaft which lifts and thrusts the swing jaw towards the fixed jaw, thus creating the crushing action. The
crusher discharge setting (CCS) is variable by mechanical shim adjustment of the swing jaw behind theggle plate.d the toggle plate..
Jaw crusher advantages
1.Simple structure ensures the crushing machine is not easy to break down.
2.Easy operation, which makes the crusher can be operated by common people.
3.High crushing ratio. Large stone lump can be quickly crushed into small particles.
4.Energy saving. The jaw crusher power amount is consumed less than other type of crushers.
5.Low cost, economically afforadable.
Jaw crusher overview
Motor drives V-belt and belt pulley to make moving jaw do periodic motion by eccentric shaft. Moving jaw moves upwards to the fixed jaw when angle between toggle plate and moving jaw increases, so materials are crushed in this process.
Jaw crusher spare parts
Jaw crusher specifications
Model | Feed opening size (mm) |
Max feed size(mm) |
Adjustable range (mm) |
Capacity (t/h) |
Eccentric shaft rotary speed (r/min) |
Motor power (kw) |
Total weight (t) |
Overall dimensions (L*W*H)(mm) |
PE-150×250 | 150×250 | 125 | 10-40 | 1-3 | 250 | 5.5 | 0.8 | 720×660×850 |
PE-200×300 | 200×300 | 180 | 15-50 | 2-6 | 260 | 7.5 | 1.2 | 910×750×990 |
PE-200×350 | 200×350 | 180 | 18-70 | 3-10 | 260 | 11 | 1.5 | 1000×870×990 |
PE-250×400 | 250×400 | 210 | 20-60 | 5-20 | 300 | 15 | 2.8 | 1300×1090×1270 |
PE-400×600 | 400×600 | 340 | 40-100 | 16-60 | 275 | 30 | 7 | 1730×1730×1630 |
PE-500×750 | 500×750 | 425 | 50-100 | 40-110 | 275 | 55 | 12 | 1980×2080×1870 |
PE-600×750 | 600×750 | 500 | 150-200 | 80-240 | 275 | 55 | 15.8 | 2070×2000×1920 |
PE-600×900 | 600×900 | 500 | 65-160 | 50-180 | 250 | 55 | 17 | 2190×2206×2300 |
PE-750×1060 | 750×1060 | 630 | 80-140 | 110-320 | 250 | 90-110 | 29 | 2660×2430×2800 |
PE-800×1060 | 800×1060 | 640 | 160-220 | 130-330 | 250 | 110 | 29.8 | 2710×2430×2800 |
PE-830×1060 | 830×1060 | 650 | 160-220 | 150-336 | 250 | 110 | 30.7 | 2740×2430×2800 |
PE-870×1060 | 870×1060 | 660 | 200-260 | 190-336 | 250 | 110 | 31.5 | 2810×2430×2800 |
PE-900×1060 | 900×1060 | 685 | 230-290 | 230-390 | 250 | 110 | 33 | 2870×2420×2940 |
PE-900×1200 | 900×1200 | 750 | 95-165 | 220-450 | 200 | 110 | 52 | 3380×2870×3330 |
PE-1000×1200 | 1000×1200 | 850 | 195-265 | 315-500 | 200 | 110 | 55 | 3480×2876×3330 |
PE-1200×1500 | 1200×1500 | 1020 | 150-300 | 400-800 | 180 | 160 | 100.9 | 4200×3300×3500 |
PEX-150×750 | 150×750 | 120 | 18-48 | 8-25 | 320 | 15 | 3.8 | 1200×1530×1060 |
PEX-250×750 | 250×750 | 210 | 25-60 | 13-35 | 330 | 30 | 5.5 | 1380×1750×1540 |
PEX-250×1000 | 250×1000 | 210 | 25-60 | 16-52 | 330 | 30 | 7 | 1560×1950×1390 |
PEX-250×1200 | 250×1200 | 210 | 25-60 | 20-61 | 330 | 37 | 9.7 | 2140×1660×1500 |
PEX-300×1300 | 300×1300 | 250 | 20-90 | 16-105 | 300 | 55 | 15.6 | 2720×1950×1600 |
