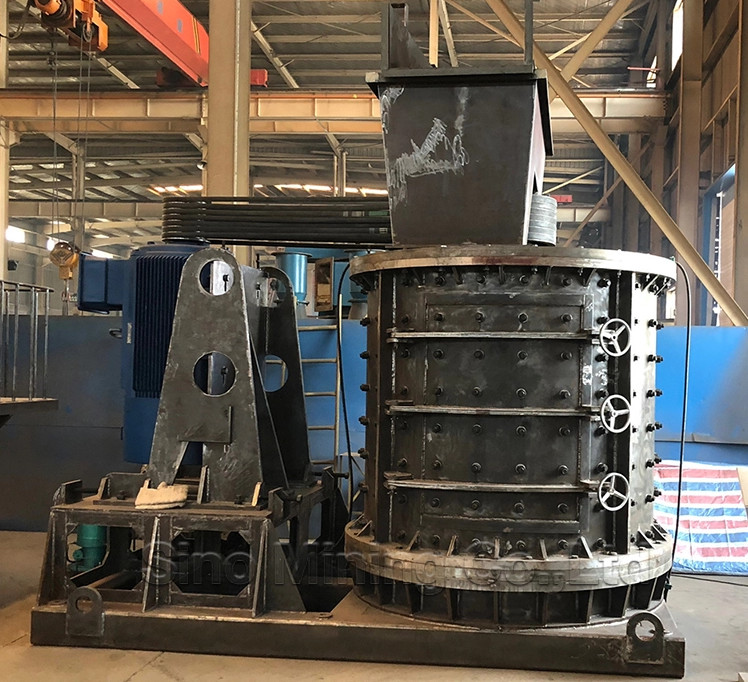

Aggregates Making Vertical Compound Crusher Machine
| Place of Origin | China |
|---|---|
| Brand Name | Ascend |
| Certification | CE/ISSO9001 |
| Model Number | PFL800 PFL1000 PFL1250 PFL1500 |
| Minimum Order Quantity | 1 set |
| Price | USD 3500-35000 Per set |
| Packaging Details | Water and rust proof in wooden box or cotainer |
| Delivery Time | 7-10 working days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 10 set per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Vertical Compound Crusher | Application | Sand Making Crusher Machine |
|---|---|---|---|
| Hammer Material | High Chrome Cr26 | Motor | AC Motor |
| Key Words | Fine Stone Crusher Machine | Capacity | 10-90 Ton Pe Hour |
| Crushing Liner | Mn13Cr2 Material | ||
| High Light | Aggregates Vertical Shaft Crusher,clay sand crusher machine,rough milling Compound Crusher Machine |
||
Product Description
Vertical shaft hammer crusher spare parts compound crusher
The vertical combination crusher is a new type of fine crushing and rough milling product after optimizing and designing the main technical parameter and combining the crushing technologies domestic and international. It is mainly used to crush crude cement materials and grogs in medium sized factory, providing an ideal fine crushing equipment for the technological innovation of cement factories or setting up the cement production line.
Working principle
When the motor runs, it drives the central shaft, four line of hammers are fixed on the centrical shaft, each line with four pieces of hammers. Materials are fed from top of the crusher, they are crushed by the high speed rotation hammers. There are liners around the crusher body to protect the crusher from damage. By gravity, the materials are threw to the crushing cavity and impacted by the high rotating hammers. It goes like this several times, materials comes out from bottom of the crusher.
Product Advantages
1.It features simple structure and easy operation. adopting the principle of stone strike stone , smaller wear.
2.High crushing rate, less energy consumption.
3.It is good at crushing material with high moisture content, humidity can reach 8%.
4.Suitable for breaking medium hard, especially like clay, limestone and gypsum
Specifications
| Model | PFL-800 | PFL-1000 | PFL-1250 | PFL-1500 | PFL-1750 |
| Feed Grain(mm) | 100 | 120 | 150 | 180 | 200 |
| Material-in Size (mm) | 0-5 | 0-5 | 0-5 | 0-5 | 0-5 |
| Trening Capacity(t/h) | 10-20 | 20-40 | 40-70 | 70-100 | 130-190 |
| Motor Power (kw) | 22 | 45-55 | 75 | 90-110 | 132-160 |
| Maine Shaft Speed(r/min) | 934 | 769 | 530 | 495 | 424 |
| Overall Dimension(mm) | 2100*1200*1700 | 2600*1400*1900 | 2800*1600*2100 | 3100*1900*2200 | 3710*2360*2390 |
| Weight(t) | 2.3 | 4.5 | 6.2 | 8.3 | 12 |
Compound crusher spare parts
The major wearing parts of the compound crusher is impact plates and hammers. The impact plates are made of high manganese alloy Mn13Cr2, and hammers are made of extremely wearable materials Cr26NiMo.
Pre-sales Service:
1.The wide product range enables us to provide our customers with stand-alone machines or complete processing plants;
2.Based on our customers'request and budget, our experts make efficient, reliable solutions;
3.Before placing the order every customer has the chance to visit daiwo working machines or complete plant in the site;
4.We have a full set of testing equipment, to provide a good test environment.
After-sales Service:
1.Experienced technicians guidance and engineers will be dispatched to the quarry site to help install the customers'plants;
2.Provide necessary training about machine daily maintenance to local workers ;
3.After-sales department has well-trained employees and professional installation engineers.
