High Capacity Gold Ore Gold Grinding Mill

Place of Origin China
Brand Name Ascend
Certification CE
Model Number 1200 1400 1500
Minimum Order Quantity 1 set
Price 4000-5000 USD Per Set
Packaging Details wooden box in container
Delivery Time 10 working days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 100 set per month
Product Details
Name Gold Wet Pan Mill Industry Gold Ore Grinding
Material Steel Alloy Color Customized
Application Beneficiation Equipment Warranty 12 Months
Power 5.5 To 55KW Capacity 1 To 5 Ton Per Hour
High Light

High Capacity mineral grinding machine


silver ore beneficiation equipment


Ore Gold Grinding Mill

Leave a Message
Product Description

Low cost high capacity gold ore wet pan grinding mill mahcine in Sudan and Egypt

The Wet Pan Mill is also called wet grinding mill or gold grinding machine. It is very popular among users because of  of low investment,high production capacity,low consumption,good efficiency,easy installation and maintenance.


It is the equipment to replace ball mill. It is perfect equipment for medium sized and small enterprieses. The wet grinding mill is mainly used for separating gold,sliver,lead,zinc,iron,molybdenum,copper,antinomy and so on.

Wet Pan Mill suit for mineral processing is widely used for selecting ferrous metals, nonferrous metals and nonmetals, as well as precious metals like gold and silver.

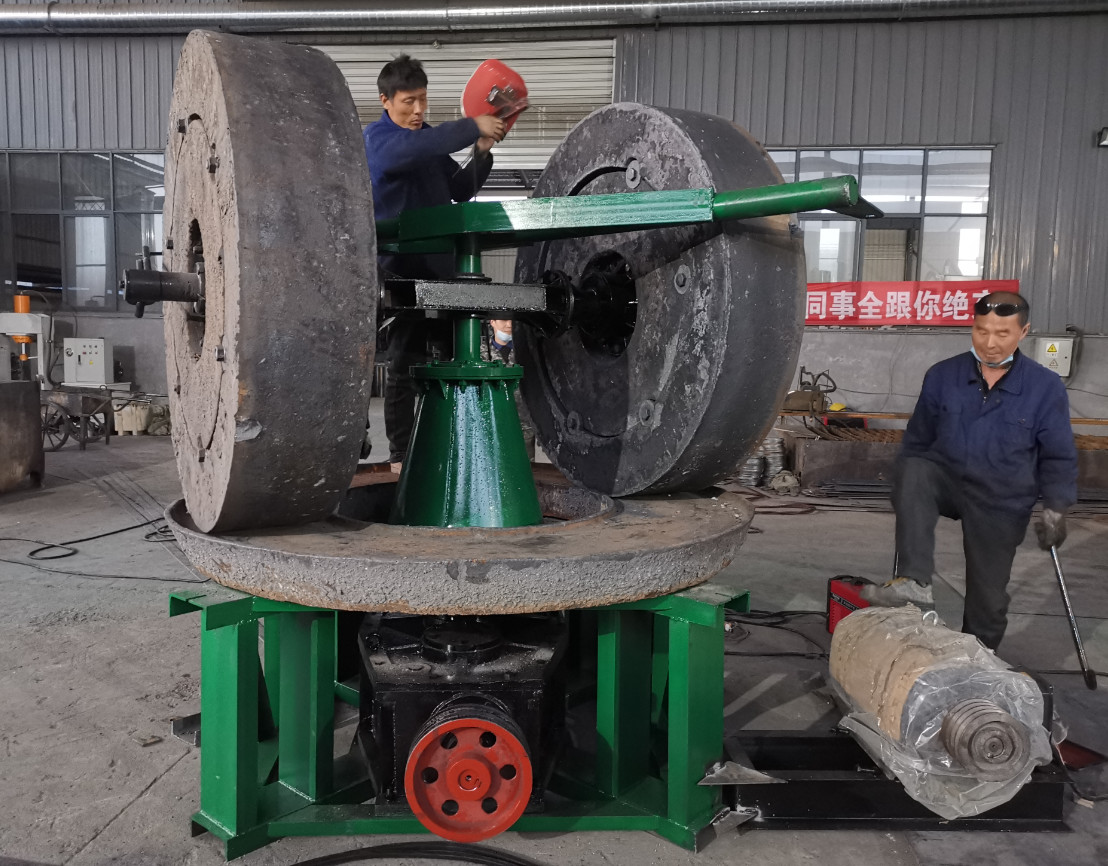

It mainly consists of driving device, frame, water basin, grinding wheels and grinding base, etc. It grinds ores by wheel driving force: firstly, the power is transferred from the motor to the reducer, then to the horizontal shaft, and finally to the grinding wheel; the wheels then rotate anticlockwise. The wheels can revolve around the vertical shaft of the pan mill, at the same time; it can revolve on its own axis, while the grinding base will remain still. The ores are then pressed, rubbed and grinded repeatedly.

High Capacity Gold Ore Gold Grinding Mill 0

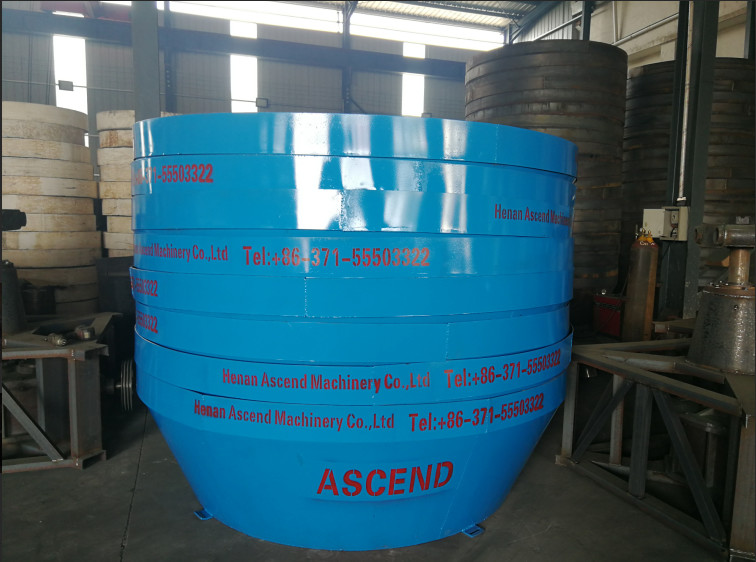

Structures of Wet Pan Mill

High Capacity Gold Ore Gold Grinding Mill 1

Advantages of Wet Pan Mill suit for mineral processing

1. The grinding wheels mix up the ores and produce ore pulp while pressing and rubbing the ores.

2. The ores and water are evenly mixed, which makes the pulp density and other indexes stable.

3. After the grinding process, the monomers are taken to the upper surface of the pulp and discharged through the overflow outlet of the water basin. Meanwhile, the coarse ores sink to the bottom of grinding base, being grinded continuously till they reach the required fineness.

4. The screening mesh set up at the overflow outlet of the water basin classifies the ore fineness strictly to avoid the over-grinding and uneven fineness, which helps create better condition for next working process.


Model 1600 1400 1300 1200 1100 1000 900
Dia.of grinding wheel (mm) 1600(+-)10 1400(+-)10 1300(+-)10 1200(+-)10 1100(+-)10 1000(+-)10 900(+-)10
Thickness of grinding wheel(mm) 400(+-)20 250(+-)20 250(+-)20 200(+-)20 200(+-)20 200(+-)20 160(+-)20
Dia.of grinding pan (mm) 2100(+-)30 2000(+-)30 2000(+-)30 1800(+-)20 1800(+-)20 1800(+-)20 1700(+-)20
Thickness of grinding pan (mm) 200(+-)10 170(+-)10 150(+-)10 90(+-)10 90(+-)10 90(+-)10 80(+-)10
Width of grinding pan (mm) 360 360 360 230-250 230-250 230-250 170-220
Power (kw) 25 18.5 15 7.5 5.5 5.5 3
Rotary speed (r/min) For extract gold: 10-13 other: 18-22
Input size (mm) < 25
Capacity (t/day) Gold 20 Gold 20 Gold 15 Gold 10 Gold 8 Gold 5 Gold 3
Weight(t) 14.5 8.5 7.5 5.5 5 4.5 3

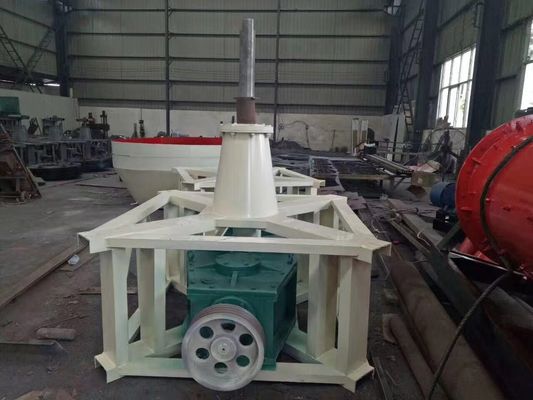

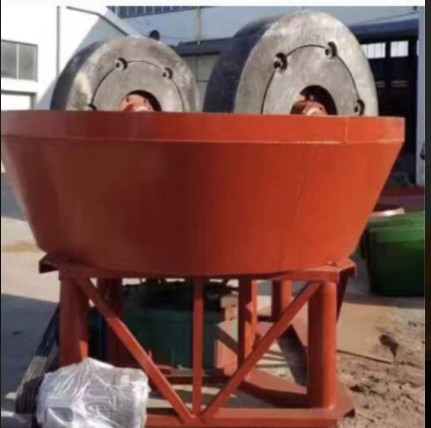

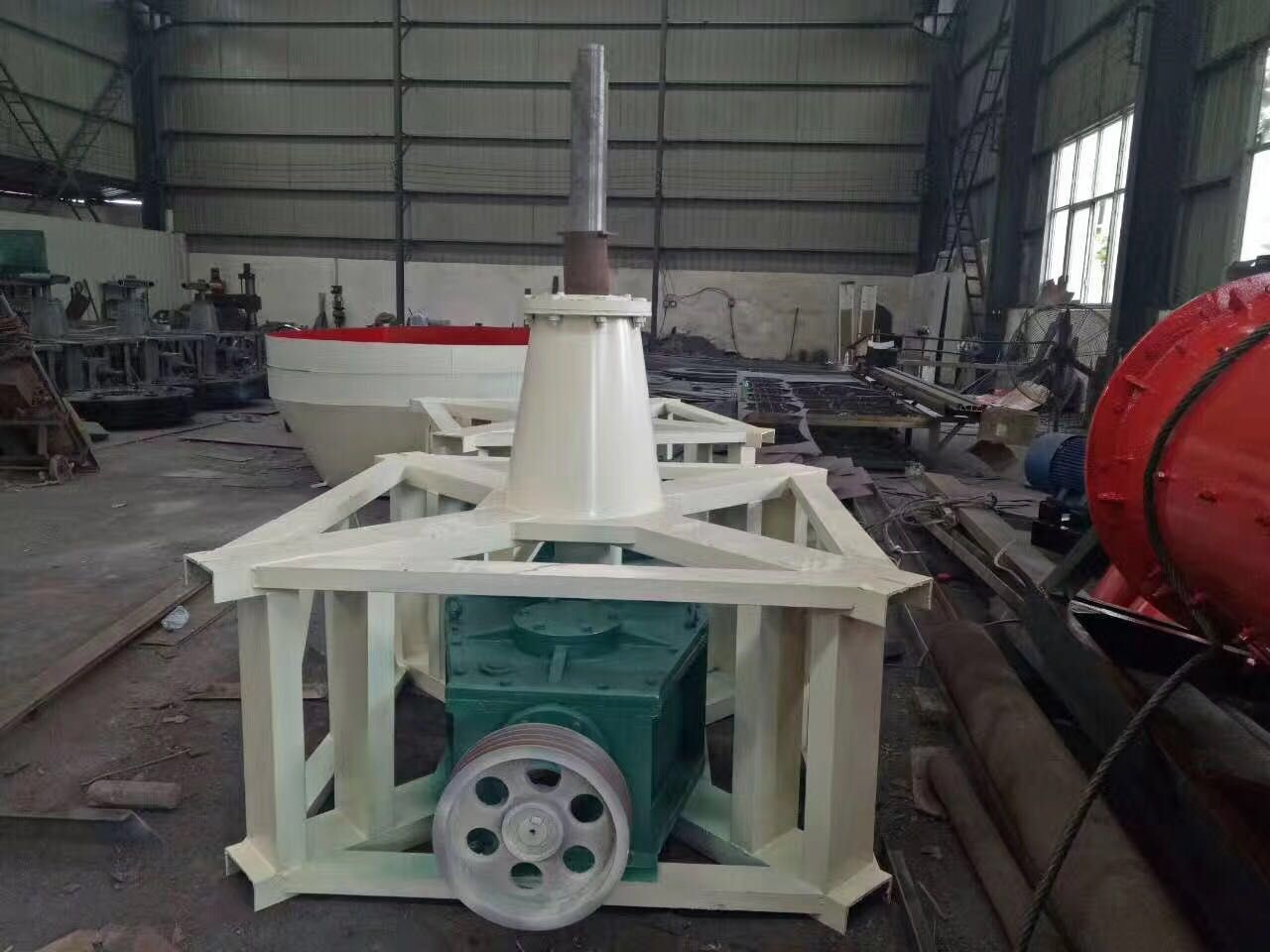

Package and delivery

High Capacity Gold Ore Gold Grinding Mill 2High Capacity Gold Ore Gold Grinding Mill 3
