Chilean Mill 1100a 1200b Mill Grinding Machine

Place of Origin China
Brand Name Ascend
Certification CE
Model Number 1200 1400 1500
Minimum Order Quantity 5 set
Price 3800-5000 USD Per Set
Packaging Details wooden box in container
Delivery Time 10 working days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 100 set per month
Product Details
Name Wet Gold Grinding Mill Application Gold Mining
Function Stone Grinding Mill Material Casting Iron/steel Alloy
Color Customized Classification Beneficiation Equipment
Motor AC Motor Voltage 380/220V
High Light

1200b gold grinding mill

,

antimony wet grinding mill

,

1100a Mill Grinding Machine

Leave a Message
Product Description

Sudan popular 1100 1200 model gold wet pan mill grinding machine



Wet pan mill is a traditional gold grinding mill machine, commonly used in the small and medium size concentrate factory. It is a low cost alternative to grinding ball mill because of its low cost and easy operation. It is widely applied to the grinding and benefication of all kinds of metal minerals, non-metal minerals, rare metal and other materials. Such as gold, silver, lead, zinc, molybdenum, iron, copper, antimony, tungsten, tin and so on.

Chilean Mill 1100a 1200b Mill Grinding Machine 0

Main Features

1. Good welding craftsmanship makes the wet pan mill more strong and can hold strong force.

2. Short grinding and mixing cycle, high efficiency.

3. Low noise and low consumption. The materials can be grinded and mixed uniformly.

4. Compact structure, easy to operate and maintenance.

5.The grinding roller and ring is made of Manganese alloy, making sure it can last at least three years, reducing reparing and spare parts changing cost for customers.
6.The surface of roller and ring is smooth without any holes or cracks, avoid mercury or gold lost.
7. The wet pan mill is the quickest way to get pure gold for small and midium miners without big investment.

Chilean Mill 1100a 1200b Mill Grinding Machine 1

Specifications

Model Specification Input size
(mm)
Capacity
(t/h)
Powder
(kw)
Weight
(t)
1600 1600×350×200×460±20mm   1-2 30 13.5
1500 1500×300×150×420±20mm   0.8-1.5 22 11.3
1400 1400×260×150×350±20mm <25mm 0.5-0.8 18.5 8.5
1200 1200×180×120×250±20mm   0.25-0.5 7.5 5.5
1100 1100×160×120×250±20mm   0.15-0.25 5.5 4.5
1000 1000×180×120×250±20mm   0.15-0.2 5.5 4.3



Wet pan mill spare parts

Chilean Mill 1100a 1200b Mill Grinding Machine 2

Wet pan mill roller comparison



A. Roller and ring is made of High manganese alloy steel, much harder and stronger than common iron type.

Another advantage is manganese type roller and ring surface is more smooth, which will prevent the holes absorb the mercury and gold.

Chilean Mill 1100a 1200b Mill Grinding Machine 3

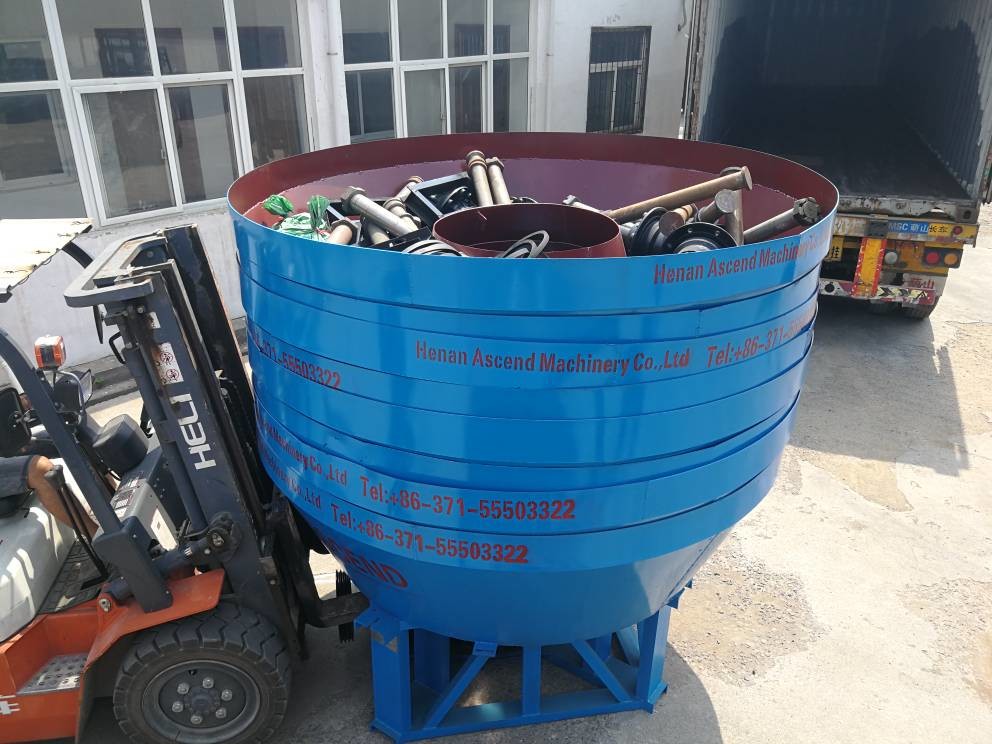

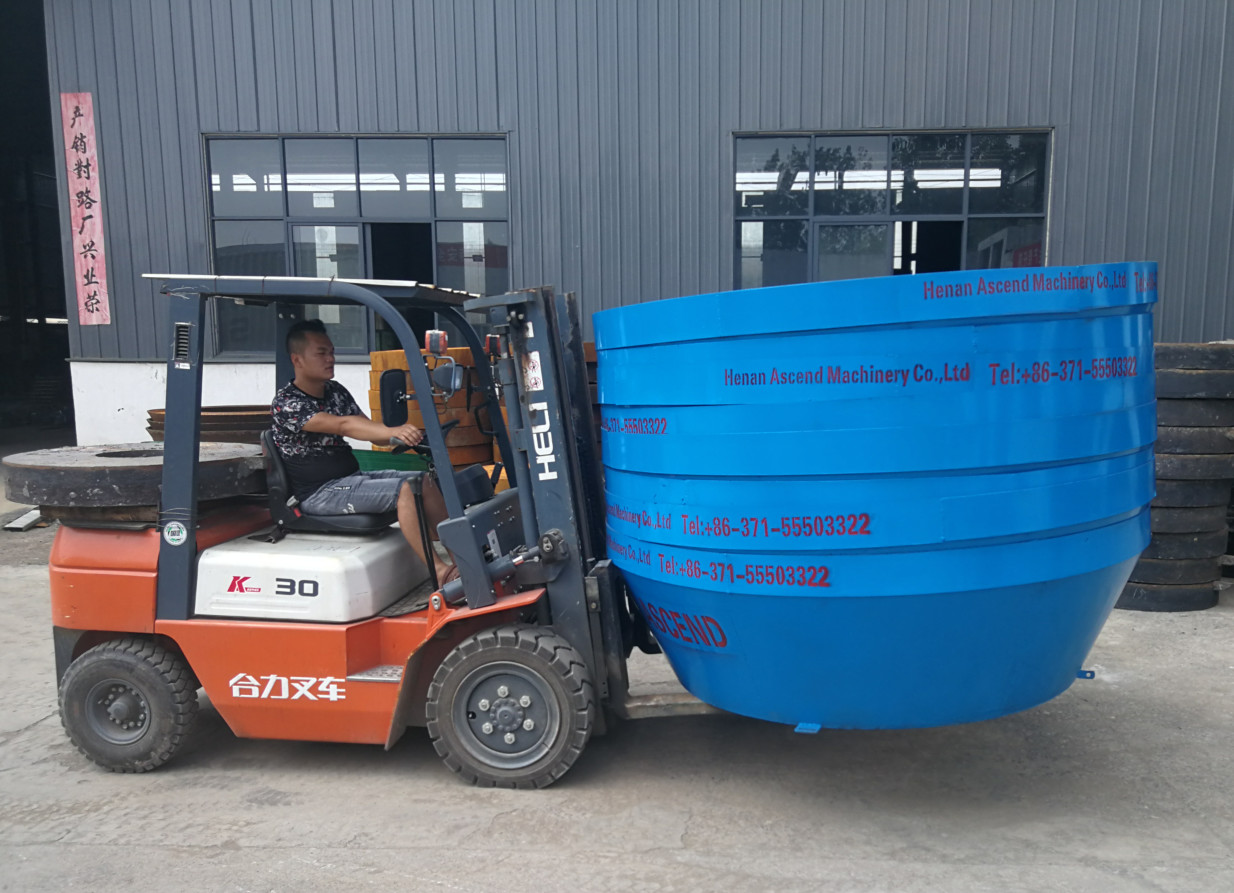

Water basin comparison

Chilean Mill 1100a 1200b Mill Grinding Machine 4
