900x1800 Ball Mill Grinding Machine 1 2 3 Tph Gold Silver Stone Grinding Discharging Particle Size Less Than 0.075mm

  • 900x1800 Ball Mill Grinding Machine 1 2 3 Tph Gold Silver Stone Grinding Discharging Particle Size Less Than 0.075mm
  • 900x1800 Ball Mill Grinding Machine 1 2 3 Tph Gold Silver Stone Grinding Discharging Particle Size Less Than 0.075mm
  • 900x1800 Ball Mill Grinding Machine 1 2 3 Tph Gold Silver Stone Grinding Discharging Particle Size Less Than 0.075mm
  • 900x1800 Ball Mill Grinding Machine 1 2 3 Tph Gold Silver Stone Grinding Discharging Particle Size Less Than 0.075mm
  • 900x1800 Ball Mill Grinding Machine 1 2 3 Tph Gold Silver Stone Grinding Discharging Particle Size Less Than 0.075mm
  • 900x1800 Ball Mill Grinding Machine 1 2 3 Tph Gold Silver Stone Grinding Discharging Particle Size Less Than 0.075mm
Place of Origin CHINA
Brand Name ASCEND
Certification ISO9001
Model Number 900x1200,3000x9000,2700x4500,2400x3600
Document Product Brochure PDF
Minimum Order Quantity 1 set
Price USD 5800-6800 set
Packaging Details Water and rust proof in wooden box or container
Delivery Time 7-10 work days
Payment Terms T/T, Western Union
Supply Ability 30 set per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
After-sales Service Provided Field Installation, Commissioning And Training Product Keywords Ball Mill Pulverizer,ball Mill For Gold Ore,ball Mill For Coal
Product Name Ball Mill Machine Keywords Stone Grinding Miller
Feeding Size 20mm Color According To Customer Requirement
Highlight

900x1800 ball mill grinding machine

,

0.075mm ball mill grinding machine

,

Ball Mill Grinding Equipment
Leave a Message
Product Description

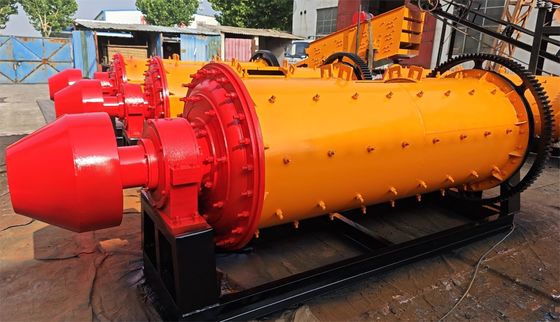

900x1800 Ball Mill Grinding Machine 1 2 3 Tph Gold Silver Stone Grinding Discharging Particle Size Less Than 0.075mm 0





900x1800 ball mill grinding machine 1 2 3 tph gold silver stone grinding



Ball mill is an effective grinding equipment that uses steel balls as grinding media. It is widely used for grinding various ores and other materials in mineral processing, building materials and chemical industries.



900x1800 Ball Mill Grinding Machine 1 2 3 Tph Gold Silver Stone Grinding Discharging Particle Size Less Than 0.075mm 1900x1800 Ball Mill Grinding Machine 1 2 3 Tph Gold Silver Stone Grinding Discharging Particle Size Less Than 0.075mm 2



working princple



Ball mill consists of a rotating body filled with steel balls and the material powder to be processed. As the rotary body moving, the steel balls are thrown out due to centrifugal force and then fall back onto the material powder. This process is repeated continuously, resulting in collision and friction between particles, thereby achieving grinding and mixing of the particles.

900x1800 Ball Mill Grinding Machine 1 2 3 Tph Gold Silver Stone Grinding Discharging Particle Size Less Than 0.075mm 3



Advantages



Wide range of applicable materials: ball mills can process more than 100 different mineral materials, such as gold silver iron ore, and can show excellent grinding result whether dry or wet grinding.

Large crushing ratio: Compared with other grinding equipment, ball mills have a higher crushing ratio and can grind materials to finer particle sizes.

Strong production capacity: By adjusting the discharge port, the ball mill can grind materials with different fineness requirements to meet different production needs.

Easy maintenance: The ball mill is made of wear-resistant materials and has a long service life. At the same time, its maintenance process is relatively simple, which saves a lot of time and cost for the company.

Energy saving and environmental protection: Equipped with advanced dust removal and noise reduction equipment, the ball mill not only reduces environmental pollution, but also improving production efficiency.



Specification



Model

Rotation

speed

(r/m)

Grind media

(ton)

Feed size

(mm)

Discharge size

(mm)

Capacity

(t/h)

Motor

(KW)

Weight

(ton)

900x1200

 36 1.0 0-25 0.074-0.4 0.5-1.5 18.5 4
900x1800 36 1.5 0-25 0.074-0.4 0.5-2 22 4.8
900x2100 38 1.5 0-25 0.074-0.4 0.5-2 22 4.8
900x2400 38 1.8 0-25 0.074-0.4 0.7-2.8 22 4.8
900x3000 38 2.5 0-25 0.074-0.4 0.8-3.5 30 5.0
1200x2400 32 3.8 0-25 0.074-0.4 0.9-4.8 30 9.2
1200x3000 32 4.5 0-25 0.074-0.4 1.2-5.6 37 11.5
1200x4500 30 5.5 0-25 0.074-0.4 1.5-6.0 55 13.6
1500x3000 27 7.0 0-25 0.074-0.4 2.5-6.5 75 15.0
1500x3500 27 8.5 0-25 0.074-0.4 3.0-8.2 75 15.6
1500x4500 27 11 0-25 0.074-0.4 4-10 95 21.0
1500x5700 27 12 0-25 0.074-0.4 4-13 110 23.5
1830x3000 24 12 0-25 0.074-0.4 5-15 130 31.0
1830x3600 24 13 0-25 0.074-0.4 5-16 130 32.0
1830x4500 24 14 0-25 0.074-0.4 5-18 155 33.5
1830x7000 24 21 0-25 0.074-0.4 6-20 210 36.0
2100x3000 24 18 0-25 0.074-0.4 7-26 210 38.0
2100x3600 24 21 0-25 0.074-0.4 7-35 215 39.5
2100x4500 24 26 0-25 0.074-0.4 8-42 245 43.5
2400x3000 21 23 0-25 0.074-0.4 8-60 285 55.0



Main parts & Spare parts



900x1800 Ball Mill Grinding Machine 1 2 3 Tph Gold Silver Stone Grinding Discharging Particle Size Less Than 0.075mm 4900x1800 Ball Mill Grinding Machine 1 2 3 Tph Gold Silver Stone Grinding Discharging Particle Size Less Than 0.075mm 5900x1800 Ball Mill Grinding Machine 1 2 3 Tph Gold Silver Stone Grinding Discharging Particle Size Less Than 0.075mm 6900x1800 Ball Mill Grinding Machine 1 2 3 Tph Gold Silver Stone Grinding Discharging Particle Size Less Than 0.075mm 7



Shipping & Packing

900x1800 Ball Mill Grinding Machine 1 2 3 Tph Gold Silver Stone Grinding Discharging Particle Size Less Than 0.075mm 8900x1800 Ball Mill Grinding Machine 1 2 3 Tph Gold Silver Stone Grinding Discharging Particle Size Less Than 0.075mm 9


Ascend Ball Mill Processing



900x1800 Ball Mill Grinding Machine 1 2 3 Tph Gold Silver Stone Grinding Discharging Particle Size Less Than 0.075mm 10

900x1800 Ball Mill Grinding Machine 1 2 3 Tph Gold Silver Stone Grinding Discharging Particle Size Less Than 0.075mm 11900x1800 Ball Mill Grinding Machine 1 2 3 Tph Gold Silver Stone Grinding Discharging Particle Size Less Than 0.075mm 12



Contact us

900x1800 Ball Mill Grinding Machine 1 2 3 Tph Gold Silver Stone Grinding Discharging Particle Size Less Than 0.075mm 13
