Mineral Ball Mill Crusher

  • Mineral Ball Mill Crusher
  • Mineral Ball Mill Crusher
  • Mineral Ball Mill Crusher
  • Mineral Ball Mill Crusher
Place of Origin China
Brand Name Ascend
Certification CE
Model Number 900x1200, 1200x1500 1500x3000 1830x3000
Document Product Brochure PDF
Minimum Order Quantity 1 set
Price USD 3800-38000 Per set
Packaging Details Water and rust proof in wooden box or cotainer

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Grinding Ball Mill Classification Small Grinding Ball Mill
Useage Mineral Ore Crushing And Grinding Voltage 380V 50Hz
Spare Parts Ball Mill Liner And Steel Balls Capacity 2 To 10 Ton Per Hour
Standard Client Specification Application Mining,mine,power Plant
Highlight

ferrous metal ball mill liner

,

Mineral small ball mill
Leave a Message
Product Description

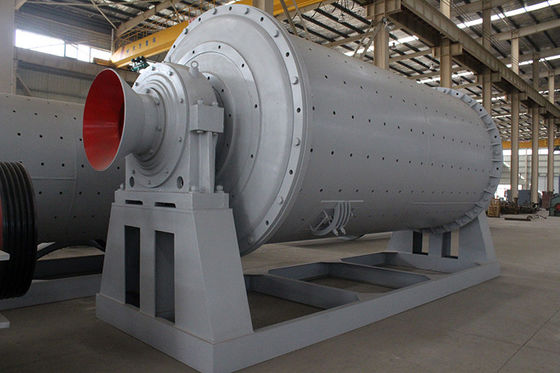

Mineral ore grinding ball mill machine

Ball mill is an efficient machine for fine powder grinding after the crushing process. There are two ways of ball mill grinding: the dry way and the wet way. It is used to grind many kinds of mineral ores and other materials, or to select mine. Ball mill is also widely used in the building and chemical industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics.

Application field:

Quarry, mining,coal mining, concrete batching plant, dry mortar, power plant desulfurization,quartz sand, etc

Mineral Ball Mill Crusher 0

Working priciple

ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber
through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the
chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials into fine powder over a period of several hours. The ground materials are discharged through the discharging board thus the grinding process is finished.

Mineral Ball Mill Crusher 1

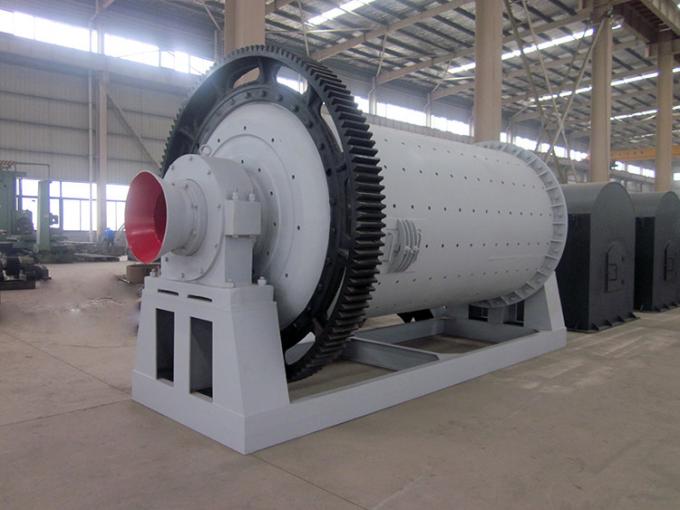

Product advantages

1. Large capacity and continuous operation
2. Big feeding port,strong wearproof ability
3. Barrel lining and grinding media can apply various abrasive materials
4. Convenient and easy to install and adjust
5. Large application range, simple structure and convenient maintenance
6. Adopting new-type bearings reduces the energy consumption

Mineral Ball Mill Crusher 2

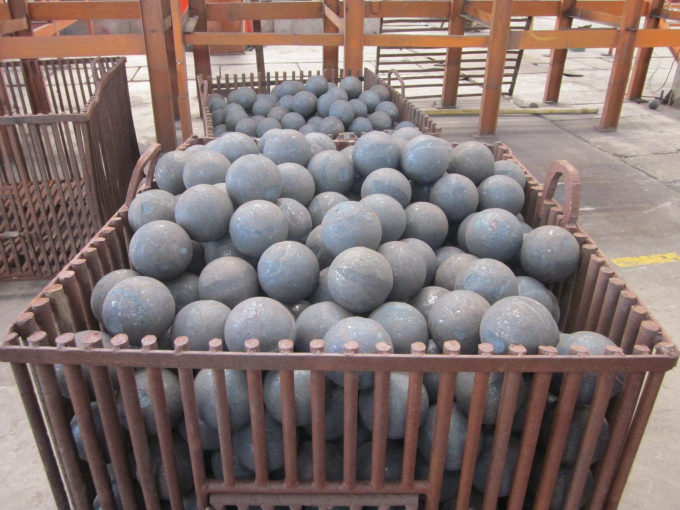

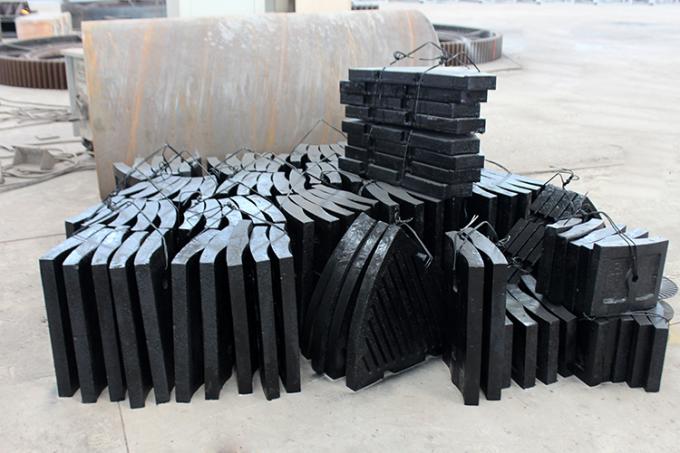

Ball mill liners and steel balls

Mineral Ball Mill Crusher 3

Mineral Ball Mill Crusher 4

Specifications

Model
Shell rotation speed(r/min)
Ball load
Feeding size
Discharging size
Capacity
Motor power
Weight
(t)
(mm)
(mm)
(t/h)
(kw)
(t)
Ø 900*1800
36-38
1.5
< =20
0.075-0.89
0.65-2
18.5
4.6
Ø 900*3000
36
2.7
< =20
0.075-0.89
1.1-3.5
22
5.6
Ø 1200*2400
36
3
< =25
0.075-0.6
1.5-4.8
30
12
Ø 1200*3000
36
3.5
< =25
0.074-0.4
1.6-5
37
12.8
Ø 1200*4500
32.4
5
< =25
0.074-0.4
1.6-5.8
55
13.8
Ø 1500*3000
29.7
7.5
< =25
0.074-0.4
2.0-5.0
75
15.6
Ø 1500*4500
27
11
< =25
0.074-0.4
3.0-5.0
110
21
Ø 1500*5700
28
12
< =25
0.074-0.4
3.5-6
130
24.7
Ø 1830*3000
25.4
11
< =25
0.074-0.4
4.0-10.0
130
28
Ø 1830*4500
25.4
15
< =25
0.074-0.4
4.5-12
155
32
Ø 1830*6400
24.1
21
< =25
0.074-0.4
6.5-15
210
34
Ø 1830*7000
24.1
23
< =25
0.074-0.4
7.5-17
245
36
Ø 2100*3000
23.7
15
< =25
0.074-0.4
6.5-36
155
34
Ø 2100*4500
23.7
24
< =25
0.074-0.4
8-43
245
42
Ø 2100*7000
23.7
26
< =25
0.074-0.4
8-48
280
50
Ø 2200*4500
21.5
27
< =25
0.074-0.4
9-45
280
48.5
Ø 2200*6500
21.7
35
< =25
0.074-0.4
14-26
380
52.8
Ø 2200*7000
21.7
35
< =25
0.074-0.4
15-28
380
54
Ø 2200*7500
21.7
35
< =25
0.074-0.4
15-30
380
56
Ø 2400*3000
21
23
< =25
0.074-0.4
7-50
245
54

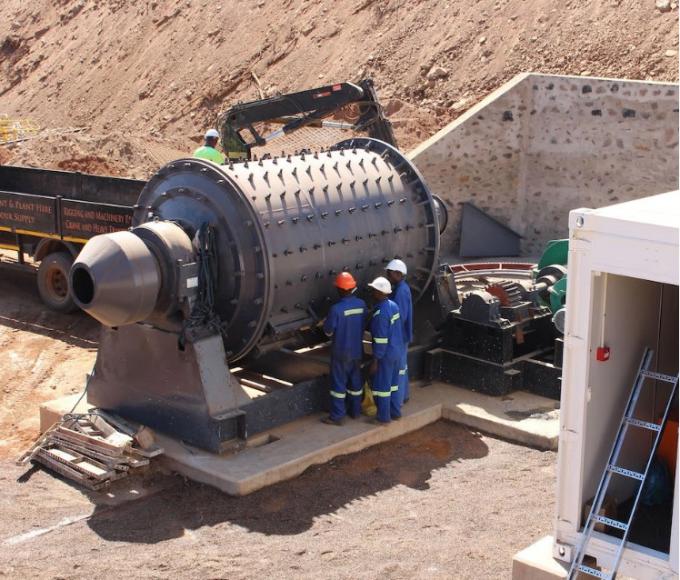

Ball mill working site

Mineral Ball Mill Crusher 5Mineral Ball Mill Crusher 6

Mineral Ball Mill Crusher 7
