Durability large scale gold iron ore grinding machine 2400x3000 Balls Mill in stone mining

Place of Origin China
Brand Name Ascend
Certification CE/ISSO9001
Model Number 900x1200, 1200x1500 1500x3000 1830x3000
Document Product Brochure PDF
Minimum Order Quantity 1 set
Price 10888-11888USD
Packaging Details regular package
Delivery Time 7-10 work days
Supply Ability 10 set per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Gold Ore Crushing And Grinding Product Name Ball Mill
Usage Mining Ore Grinding Liner Material Mn13Cr2
Motor 22 To 380KW Voltage 380V
Warranty 12 Months
Highlight

Stone Mining Balls Mill

,

Large Scale Balls Mill

,

2400x3000 Balls Mill

Leave a Message
Product Description

Large scale gold iron ore grinding machine Balls Mill in stone mining

Ball Mill Machine is a key equipment to grind the crushed materials, and the Gold Ball Mill is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc. And the ball mill can grind various ores and other materials with dry type and wet type. There are two kinds of ball mill, grid type and overflow type due to different ways of discharging material.

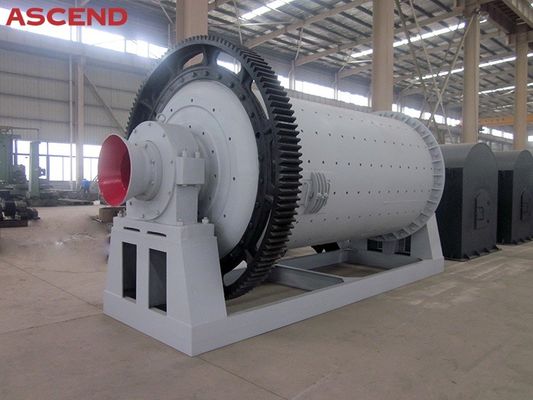

Durability large scale gold iron ore grinding machine 2400x3000 Balls Mill in stone mining 0

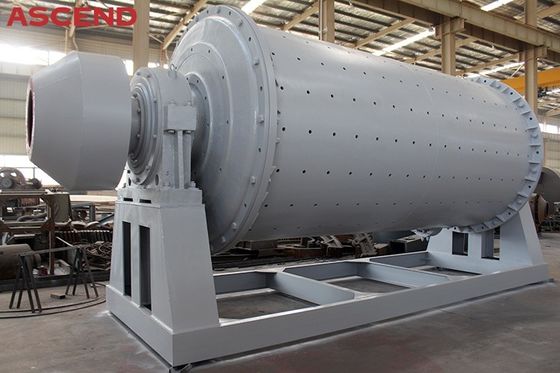

Durability large scale gold iron ore grinding machine 2400x3000 Balls Mill in stone mining 1

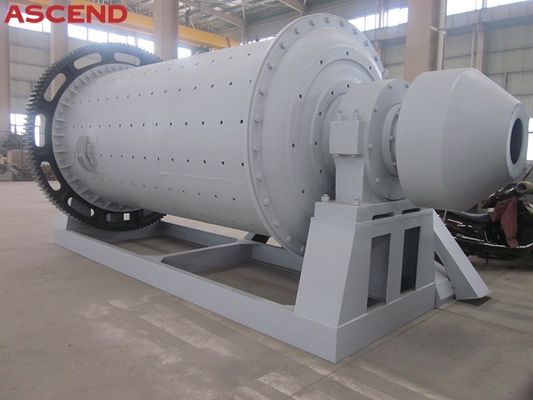

Durability large scale gold iron ore grinding machine 2400x3000 Balls Mill in stone mining 2

working principle

Ball Mill Machine is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished

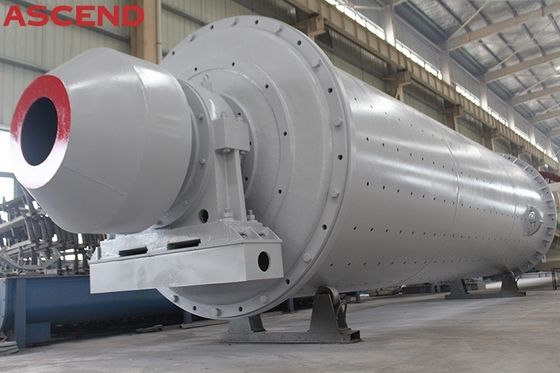

Durability large scale gold iron ore grinding machine 2400x3000 Balls Mill in stone mining 3



Ball mill specifications

Model
Shell rotation speed
(r/min)
Ball load
(t)
Feeding size
(mm)
Discharging size
(mm)
Capacity
(t/h)
Motor power
(kw)
Total weight
(t)
Ф900×1800
36-38
1.5
<20
0.075-0.89
0.65-2
18.5
5.85
Ф900×3000
36
2.7
<20
0.075-0.89
1.1-3.5
22
6.98
Ф1200×2400
36
3
<25
0.075-0.6
1.5-4.8
30
13.6
Ф1200×3000
36
3.5
<25
0.074-0.4
1.6-5
37
14.3
Ф1200×4500
32.4
5
<25
0.074-0.4
1.6-5.8
55
15.6
Ф1500×3000
29.7
7.5
<25
0.074-0.4
2-5
75
19.5
Ф1500×4500
27
11
<25
0.074-0.4
3-6
110
22
Ф1500×5700
28
12
<25
0.074-0.4
3.5-6
130
25.8
Ф1830×3000
25.4
11
<25
0.074-0.4
4-10
130
34.5
Ф1830×4500
25.4
15
<25
0.074-0.4
4.5-12
155
38
Ф1830×6400
24.1
21
<25
0.074-0.4
6.5-15
210
43
Ф1830×7000
24.1
23
<25
0.074-0.4
7.5-17
245
43.8
Ф2100×3000
23.7
15
<25
0.074-0.4
6.5-36
155
45
Ф2100×4500
23.7
24
<25
0.074-0.4
8-43
245
56
Ф2100×7000
23.7
26
<25
0.074-0.4
12-48
280
59.5
Ф2200×4500
21.5
27
<25
0.074-0.4
9-45
280
54.5
Ф2200×6500
21.7
35
<25
0.074-0.4
14-26
380
61
Ф2200×7000
21.7
35
<25
0.074-0.4
15-28
380
62.5
Ф2200×7500
21.7
35
<25
0.074-0.4
15-30
380
64.8



Ball Mill Machine Applications:

Ball Mill Machine is mainly used to grind materials in mineral, cement, refractory, chemical industry, etc. Ball mill has dry and wet ways. When wet ball mill works, certain water and other liquid will be added into materials to increase flow ability of materials, so the capacity is increased. When dry ball mill works, capacity is affected because material flow ability is reduced, so absorbing wind device is needed on the outlet of ball mill, and then negative pressure is formed in the ball mill to increase flow ability of material, so the capacity is increased etc.

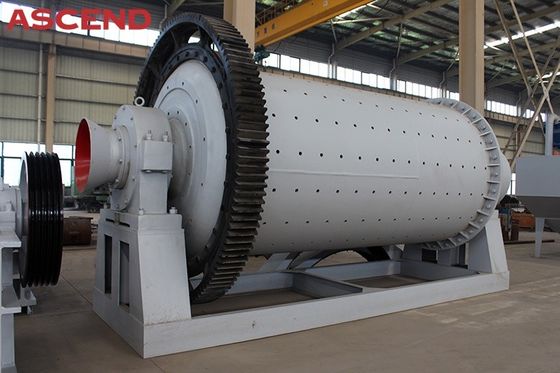

Durability large scale gold iron ore grinding machine 2400x3000 Balls Mill in stone mining 4
