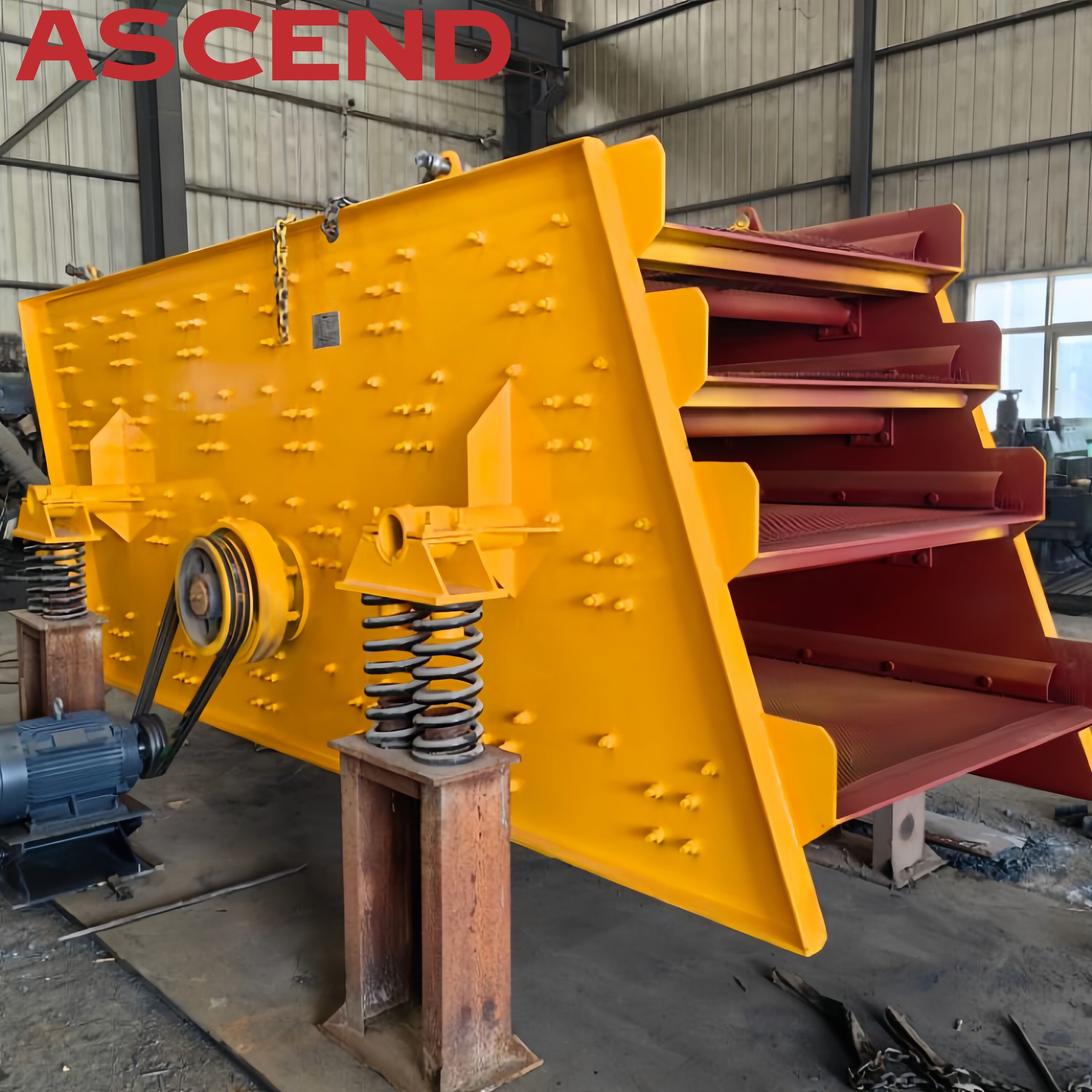

Powder Sieving Vibrating Washing Screens Shaker For Gold Mining Plant 160m3 / H

  • Powder Sieving Vibrating Washing Screens Shaker For Gold Mining Plant 160m3 / H
  • Powder Sieving Vibrating Washing Screens Shaker For Gold Mining Plant 160m3 / H
  • Powder Sieving Vibrating Washing Screens Shaker For Gold Mining Plant 160m3 / H
  • Powder Sieving Vibrating Washing Screens Shaker For Gold Mining Plant 160m3 / H
  • Powder Sieving Vibrating Washing Screens Shaker For Gold Mining Plant 160m3 / H
Place of Origin China
Brand Name ASCEND
Certification CE/ISSO9001
Model Number 2YK1237 2YK1548 3YK2460
Minimum Order Quantity 1 set
Price 4000-12900 USD Per Set
Packaging Details Water and rust proof in wooden box or cotainer
Delivery Time 7-10 working days
Payment Terms T/T, Western Union, L/C
Supply Ability 10 set per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Vibrating Screener Machine Motor AC Motor
Application Mining Ore, Slag, Quarry Color Customized
Warranty 1 Year Dimension 5570mmx3086mmx3296mm
Layer 1-5 Layers(as Customized) Function Screening/Separation/Sorting/Sieving
High Light

Powder Sieving Vibrating Washing Screens

,

Sieving Vibrating Washing Screens Shaker

,

160 m3/h Vibrating Washing Screens
Leave a Message
Product Description

Powder Sieving Vibrating Washing Screens Shaker For Gold Mining Plant

Product Description

This series of screening machine mainly make up by screen box, screen, vibrator, shock absorber spring device, chassis and other components. The vibrator is mounted on the side panel of the screen box and driven by motor through coupling rotation to produce the centrifugal inertia and force the sieve to vibrate.

Vibrating Screen Drawing 2 3 4YK1860 Silica Quarry Sandstone Sieving Equipment



Features of Vibrating Screen

1.The motor adopts type coupled axle machine, prevent the motor being wore for twisting when it is starting.
2.Adopt rubber spring, the whole machine's operation is stable and reliable, the operating life is long.
3.Adopt combined exciter and cardon movement, to assure the operation simultaneous, exclude the phenomenon of bearing affecting the operating life as its coaxial degree is not very good.
4.Adopt air-cooling craft, reducing the bearing temperature, prolonging the bearing temperature, prolonging the bearing's operating life.
5.Adopt high-strength bolted combination craft; make the sieve body's operating life more durable under the full vibration.


Detailed Images



Vibrating Screen Drawing 2 3 4YK1860 Silica Quarry Sandstone Sieving Equipment





Spare Parts

Vibrating Screen Drawing 2 3 4YK1860 Silica Quarry Sandstone Sieving Equipment



Working Principle

Vibrating screen uses electric exciter as vibrating source, the material will be thrown around the screen, at the same time doing forward sports, in order to achieve the screening purpose. Material from the feeder evenly enters into the machine's feeding inlet, with multilayer sieves to produce various of products and unqualified products on the screen or under the screen, then discharging from the outlet respectively. It can be used in the automatic production line.

Vibrating Screen Drawing 2 3 4YK1860 Silica Quarry Sandstone Sieving Equipment



Main Technical Parameters



Model Screen
layer		 Screen
area
(m2)		 Mesh
size
(mm)		 Feeding
size
(mm)		 Capacity
(m3/h)		 Vibrating
frequency
(r/min)		 Double
amplitude
(mm)		 Power
(kw)		 Dimension
(L×W×H)		 Weight
(without motor)
(t)		 Screen
slope
(°)		 Screen
specification
(mm)
YK1237 1 4.4 2-50 200 25-160 970 8 11 3857×2386×2419 4.8 15-20 1200×3700
2YK1237 2 4.4 2-50 200 25-160 970 8 11 3857×2386×2419 4.9 15-20 1200×3700
3YK1237 3 4.4 2-50 400 30-180 970 8 11 4057×2386×2920 5.2 15-20 1200×3700
4YK1237 4 4.4 2-50 400 30-180 970 8 11 4257×2386×2920 5.3 15-20 1200×3700
YK1548 1 7.2 2-50 200 45-250 970 8 15 4904×2713×2854 5.9 15-20 1500×4800
2YK1548 2 7.2 2-50 200 45-250 970 8 15 4904×2713×2854 6.3 15-20 1500×4800
3YK1548 3 7.2 2-50 400 45-280 970 8 15 5104×2713×3106 6.5 15-20 1500×4800
4YK1548 4 7.2 2-50 400 45-280 970 8 18.5 5304×2713×3356 6.6 15-20 1500×4800
YK1848 1 8.6 2-50 200 55-330 970 8 15 4904×3041×2854 6.2 15-20 1800×4800
2YK1848 2 8.6 2-50 200 55-330 970 8 15 4904×3041×2854 6.9 15-20 1800×4800
3YK1848 3 8.6 2-50 400 55-350 970 8 22 5104×3041×3106 7.2 15-20 1800×4800
4YK1848 4 8.6 2-50 400 55-350 970 8 22 5304×3041×3356 7.5 15-20 1800×4800
YK1860 1 10.8 2-50 200 65-350 970 8 22 6166×3041×2854 6.4 15-20 1800×6000
2YK1860 2 10.8 2-50 200 65-350 970 8 22 6166×3041×2854 7.1 15-20 1800×6000
3YK1860 3 10.8 2-50 400 65-380 970 8 22 6366×3041×3106 7.4 15-20 1800×6000
4YK1860 4 10.8 2-50 400 65-380 970 8 30 6566×3041×3356 7.7 15-20 1800×6000
YK2160 1 12.6 2-50 200 80-720 970 8 30 6166×3444×2854 9.9 15-20 2100×6000
2YK2160 2 12.6 2-50 200 80-720 970 8 30 6366×3444×3106 11.2 15-20 2100×6000
3YK2160 3 12.6 2-50 400 90-750 970 8 37 6566×3444×3356 12.4 15-20 2100×6000
4YK2160 4 12.6 2-50 405 90-750 970 8 45 6566×3444×3356 15.1 15-20 2100×6000
YK2460 1 14.4 2-50 200 150-810 970 8 30 6166×3916×3839 12.2 15-20 2400×6000
2YK2460 2 14.4 2-50 200 150-810 970 8 30 6166×3916×3839 13.5 15-20 2400×6000
3YK2460 3 14.4 2-50 400 180-900 970 8 37 6366×3916×4139 13.6 15-20 2400×6000
4YK2460 4 14.4 2-50 400 180-900 970 8 45 6566×3916×4439 14.4 15-20 2400×6000



Packing&Shipping



Vibrating Screen Drawing 2 3 4YK1860 Silica Quarry Sandstone Sieving Equipment

Vibrating Screen Drawing 2 3 4YK1860 Silica Quarry Sandstone Sieving Equipment





Working Sites



Vibrating Screen Drawing 2 3 4YK1860 Silica Quarry Sandstone Sieving Equipment



Company Profile

  • Henan Ascend Machinery & Equipment Co., Ltd. was established in 2005 and it is located in the high-tech zone of Zhengzhou City, Henan Province. As a technology driven mining equipment company, it is committed to the R&D, production, sales and after-sales service of mining machinery and equipment.
  • The company's main products are crushers, grinding mill equipment, mineral beneficiation equipment, rotary dryer and crusher & grinding mill spare parts. In addition to the Chinese domestic market, Ascend machinery expands its business in more than 160 countries and regions.

Our Workshop

Vibrating Screen Drawing 2 3 4YK1860 Silica Quarry Sandstone Sieving Equipment



FAQ

Q1. Are you factory or trading company?
We are factory specialized in manufacturing stone crushers, grinding mills, beneficiation equipments and other mining equipments. Our office and factories are based in Zhengzhou, China. Because we are factory, so we can guarantee the machine quality and we can give you very competitive factory price without extra agent cost.
Q2. To which country your products have been exported before?
In Africa, We have exported to Sudan, Kenya, Zambia, Ethiopia, Zimbabwe, Guinea, Nigeria and so on. We also exported South Africa, Chile, Peru, Ecuador, New Zealand, America, Austrilia more than 160 countries. Our equipment and service have won very high reputation in these countries.
Q3. How will you help the customer install the equipment?
We will send our senior engineer to your place to guide the installation and commissioning.
Q4. How about the wear parts supply?
We offer wear parts to our customer with our most favorable price. If there are problems you could not handle, we will send our technicians to your place.
Q5.What about the payment method?
T/T, Paypal, Western Union, L/C is available.
Q6.What about after-sale service?
12 months warranty for all kinds of products; and you will get our 7*24h online service.
