PC 1300x1200 Grinder Hammer Marble Glass Clay Mill Crusher 200tph Capacity Machine
| Place of Origin | Zhengzhou, China |
|---|---|
| Brand Name | ASCEND |
| Certification | ISO9001, CE |
| Model Number | PC600x400 PC800x600 PC1000x800 |
| Minimum Order Quantity | 1 set |
| Price | negotiable |
| Packaging Details | 1. Standard parts packed in the wooden cases. 2. Big parts packed by plastic membrane. 3. The whole machine is loaded in the container. |
| Delivery Time | 7-10 working days |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 100 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Hammer Mill Crusher | Application | Mining And Quarry |
|---|---|---|---|
| Capacity(t/h) | 5-200tph | Motor Type | Electric Motor |
| Output Size | <10mm | Keyword | Hammer Crushing |
| Installation | Under Technical Guidance | Spare Parts Supply | Lifelong Time |
| After-sales Service Provided | Field Installation | Weight | According To Model |
Product Description

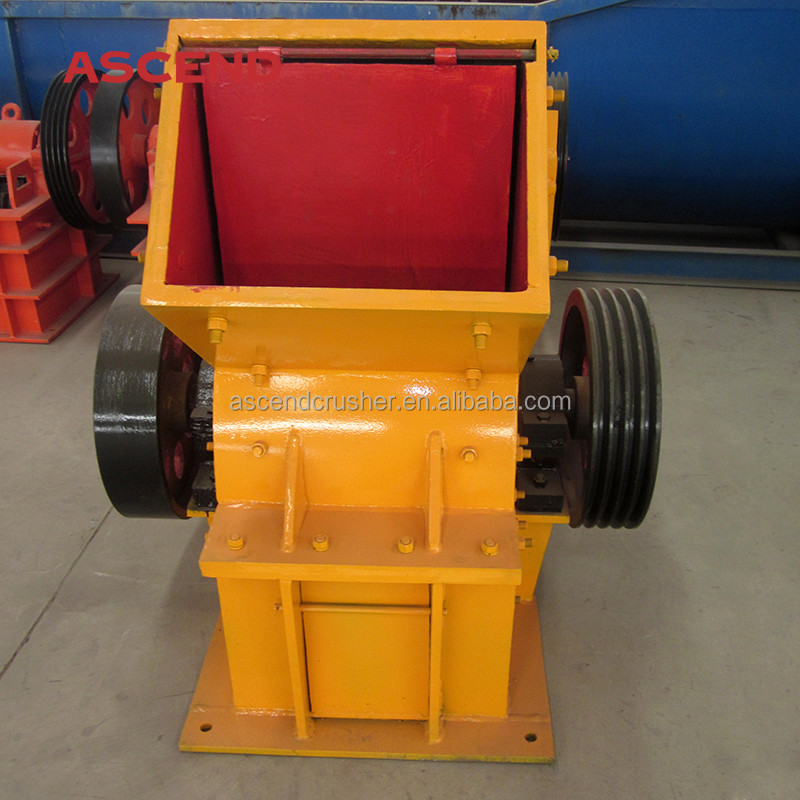

PC 1300x1200 Grinder Hammer Marble Glass Clay Mill Crusher 200tph Capacity Machine
Product Description
A hammer crusher is a crusher whose purpose is to shred or crush aggregate material into smaller pieces by the repeated blows of little hammers. The basic principle is straightforward. A hammer crusher is essentially a steel drum containing a vertical or horizontal rotating shaft or drum on which hammers are mounted. The hammers are free to swing on the ends of the cross, or fixed to the central rotor. The rotor is spun at a high speed inside the drum while material is fed into a feed hopper. The material is impacted by the hammer bars and is thereby shredded and expelled through screens in the drum of a selected size. The hammer crusher can be used as a primary, secondary, or tertiary crusher.
Mobile Hammer Crusher
Detailed Images
Spare Parts
Working Principle
The main working part of types of hammer mill is the rotor with hammers.The rotor consists of main shaft, disk,hinge pin and hammers.A sieve plate is below the rotor.The motor drives the rotor to rotate at a high speed.When the materials get into the crushing cavity,they are crushed by the rotating hammers,the crushed products which meet the required size can be discharged from the sieve plate and become the final products,the products with larger size are brought back to the crushed area for being re-crushed until they reach the required size.
Specifications
| Model |
Max. feeding size (mm) |
Output size (mm) |
Capacity (t/h) |
Motor Power (kw) |
Weight (kg) |
| PC300×200 | ≤100 | ≤10 | 2-5 | 5.5 | 600 |
| PC400×300 | ≤100 | ≤10 | 5-10 | 11 | 800 |
| PC600×400 | ≤120 | ≤15 | 10-25 | 18.5 | 1500 |
| PC800×600 | ≤120 | ≤15 | 20-35 | 55 | 3100 |
| PC1000×800 | ≤200 | ≤15 | 20-40 | 115 | 7900 |
| PC1000×1000 | ≤200 | ≤15 | 30-80 | 132 | 8650 |
| PC1300×1200 | ≤250 | ≤19 | 80-200 | 240 | 13600 |
Working Sites
Packing&Shipping
Company Profile
- Henan Ascend Machinery & Equipment Co., Ltd. was established in 2005 and it is located in the high-tech zone of Zhengzhou City, Henan Province. As a technology driven mining equipment company, it is committed to the R&D, production, sales and after-sales service of mining machinery and equipment.
- The company's main products are crushers, grinding mill equipment, mineral beneficiation equipment, rotary dryer and crusher & grinding mill spare parts. In addition to the Chinese domestic market, Ascend machinery expands its business in more than 160 countries and regions.
Our Workshop
FAQ
Q1. Are you factory or trading company?
We are factory specialized in manufacturing stone crushers, grinding mills, beneficiation equipments and other mining equipments. Our office and factories are based in Zhengzhou, China. Because we are factory, so we can guarantee the machine quality and we can give you very competitive factory price without extra agent cost.
Q2. To which country your products have been exported before?
In Africa, We have exported to Sudan, Kenya, Zambia, Ethiopia, Zimbabwe, Guinea, Nigeria and so on. We also exported South Africa, Chile, Peru, Ecuador, New Zealand, America, Austrilia more than 160 countries. Our equipment and service have won very high reputation in these countries.
Q3. How will you help the customer install the equipment?
We will send our senior engineer to your place to guide the installation and commissioning.
Q4. How about the wear parts supply?
We offer wear parts to our customer with our most favorable price. If there are problems you could not handle, we will send our technicians to your place.
Q5.What about the payment method?
T/T, Paypal, Western Union, L/C is available.
Q6.What about after-sale service?
12 months warranty for all kinds of products; and you will get our 7*24h online service.
