10-25tph Clay Charcoal Soil Hammer Mill Crusher PC600x400 Model Mining Plant
| Place of Origin | Zhengzhou, China |
|---|---|
| Brand Name | ASCEND |
| Certification | ISO9001, CE |
| Model Number | PC400x300 PC600x400 PC800x600 PC1000x800 |
| Minimum Order Quantity | 1 set |
| Price | negotiable |
| Packaging Details | 1. Standard parts packed in the wooden cases. 2. Big parts packed by plastic membrane. 3. The whole machine is loaded in the container. |
| Delivery Time | 7-10 working days |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 100 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Hammer Mill Crusher | Application | Mining And Quarry |
|---|---|---|---|
| Capacity(t/h) | 10-25tph | Motor Type | Electric Motor |
| Output Size | 0-5mm | Input Size | <100mm, <150mm |
| Keyword | Hammer Grinding Mill | Installation | Engineer Guide |
| Spare Parts Supply | Lifelong Time | After-sales Service Provided | Field Maintenance And Repair Service |
Product Description

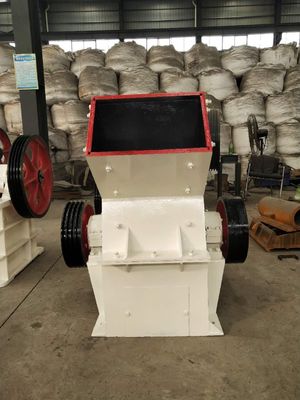

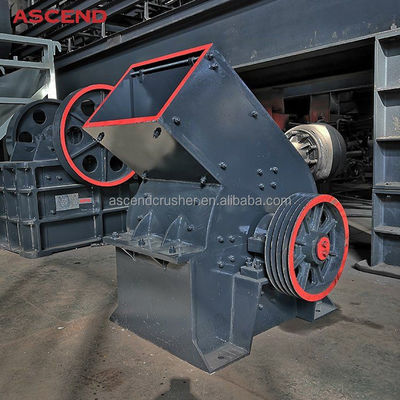

10-25tph Clay Charcoal Soil Hammer Mill Crusher PC600x400 Model Mining Plant
Product Description
The hammer crusher was developed for the both dry and wet crushing of brittle, medium-hard materials for the mining, cement, coal, metallurgic, construction material, road building, and petroleum & chemical industries. The crushers are applicable for crushing of brittle minerals, such as coal, salt, plaster, alum, brick, tile and limestone with compression strength no more than 100mpa and humidity no more than 15%. This equipment can adjust to the cleft and the discharging granularity as the customers request to satisfy different needs.
Mobile Hammer Crusher
Detailed Images
Spare Parts
Working Principle
The motor drives the rotor to rotate at a high speed through the belt, and on the rotor there are series of hammers. When the materials get into the working area of hammers, the rotating hammers with high rotation speed are crushing them, the crushed products meeting the required size can be discharged by the outlet and become the final products.
Specifications
| Model |
Max. feeding size (mm) |
Output size (mm) |
Capacity (t/h) |
Motor Power (kw) |
Weight (kg) |
| PC300×200 | ≤100 | ≤10 | 2-5 | 5.5 | 600 |
| PC400×300 | ≤100 | ≤10 | 5-10 | 11 | 800 |
| PC600×400 | ≤120 | ≤15 | 10-25 | 18.5 | 1500 |
| PC800×600 | ≤120 | ≤15 | 20-35 | 55 | 3100 |
| PC1000×800 | ≤200 | ≤15 | 20-40 | 115 | 7900 |
| PC1000×1000 | ≤200 | ≤15 | 30-80 | 132 | 8650 |
| PC1300×1200 | ≤250 | ≤19 | 80-200 | 240 | 13600 |
Working Sites
Packing&Shipping
Company Profile
- Henan Ascend Machinery & Equipment Co., Ltd. was established in 2005 and it is located in the high-tech zone of Zhengzhou City, Henan Province. As a technology driven mining equipment company, it is committed to the R&D, production, sales and after-sales service of mining machinery and equipment.
- The company's main products are crushers, grinding mill equipment, mineral beneficiation equipment, rotary dryer and crusher & grinding mill spare parts. In addition to the Chinese domestic market, Ascend machinery expands its business in more than 160 countries and regions.
Our Workshop
FAQ
Q1. Are you factory or trading company?
We are factory specialized in manufacturing stone crushers, grinding mills, beneficiation equipments and other mining equipments. Our office and factories are based in Zhengzhou, China. Because we are factory, so we can guarantee the machine quality and we can give you very competitive factory price without extra agent cost.
Q2. To which country your products have been exported before?
In Africa, We have exported to Sudan, Kenya, Zambia, Ethiopia, Zimbabwe, Guinea, Nigeria and so on. We also exported South Africa, Chile, Peru, Ecuador, New Zealand, America, Austrilia more than 160 countries. Our equipment and service have won very high reputation in these countries.
Q3. How will you help the customer install the equipment?
We will send our senior engineer to your place to guide the installation and commissioning.
Q4. How about the wear parts supply?
We offer wear parts to our customer with our most favorable price. If there are problems you could not handle, we will send our technicians to your place.
Q5.What about the payment method?
T/T, Paypal, Western Union, L/C is available.
Q6.What about after-sale service?
12 months warranty for all kinds of products; and you will get our 7*24h online service.
