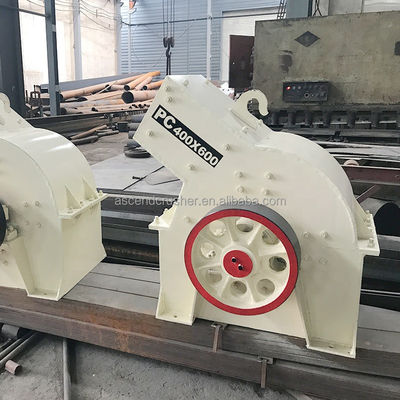

Hammer Crusher With Conveyor Barite Quartz Coal 20-40 tph Capacity Crushing Plant
| Place of Origin | Zhengzhou, China |
|---|---|
| Brand Name | ASCEND |
| Certification | ISO9001, CE |
| Model Number | PC600x400 PC800x600 PC1000x800 |
| Minimum Order Quantity | 1 set |
| Price | negotiable |
| Packaging Details | 1. Standard parts packed in the wooden cases. 2. Big parts packed by plastic membrane. 3. The whole machine is loaded in the container. |
| Delivery Time | 7-10 working days |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 100 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Hammer Crusher | Application | Chemical Industry And Construction |
|---|---|---|---|
| Capacity(t/h) | 10-200tph | Motor Type | Electric Motor |
| Output Size | <10mm | Keyword | Hammer Grinding Mill |
| Installation | Available | Spare Parts Supply | Lifelong Provide |
| After-sales Service Provided | Field Installation | Weight | According To Model |
Product Description
Hammer Crusher With Conveyor Barite Quartz Coal 20-40 tph Capacity Crushing Plant
Product Description
Hammer crusher is suitable for crushing brittle, medium hard, compressive strength less than 150MPa of all kinds of materials. This machine is characterized by the new hammer casting process, with wear resistance, impact resistance, according to customer requirements, adjust the required particle size, and the body structure is sealed, to solve the problem of dust pollution and body dust leakage in the crushing workshop. And the overall design beautiful shape, compact structure, less wearing parts, convenient maintenance and other advantages, is the upgrade of products.
Mobile Hammer Crusher
Detailed Images
Spare Parts
Working Principle
The main working part of types of hammer mill is the rotor with hammers.The rotor consists of main shaft, disk,hinge pin and hammers.A sieve plate is below the rotor.The motor drives the rotor to rotate at a high speed.When the materials get into the crushing cavity,they are crushed by the rotating hammers,the crushed products which meet the required size can be discharged from the sieve plate and become the final products,the products with larger size are brought back to the crushed area for being re-crushed until they reach the required size.
Specifications
| Model |
Max. feeding size (mm) |
Output size (mm) |
Capacity (t/h) |
Motor Power (kw) |
Weight (kg) |
| PC300×200 | ≤100 | ≤10 | 2-5 | 5.5 | 600 |
| PC400×300 | ≤100 | ≤10 | 5-10 | 11 | 800 |
| PC600×400 | ≤120 | ≤15 | 10-25 | 18.5 | 1500 |
| PC800×600 | ≤120 | ≤15 | 20-35 | 55 | 3100 |
| PC1000×800 | ≤200 | ≤15 | 20-40 | 115 | 7900 |
| PC1000×1000 | ≤200 | ≤15 | 30-80 | 132 | 8650 |
| PC1300×1200 | ≤250 | ≤19 | 80-200 | 240 | 13600 |
Working Sites
Packing&Shipping
Company Profile
- Henan Ascend Machinery & Equipment Co., Ltd. was established in 2005 and it is located in the high-tech zone of Zhengzhou City, Henan Province. As a technology driven mining equipment company, it is committed to the R&D, production, sales and after-sales service of mining machinery and equipment.
- The company's main products are crushers, grinding mill equipment, mineral beneficiation equipment, rotary dryer and crusher & grinding mill spare parts. In addition to the Chinese domestic market, Ascend machinery expands its business in more than 160 countries and regions.
Our Workshop
FAQ
Q1. Are you factory or trading company?
We are factory specialized in manufacturing stone crushers, grinding mills, beneficiation equipments and other mining equipments. Our office and factories are based in Zhengzhou, China. Because we are factory, so we can guarantee the machine quality and we can give you very competitive factory price without extra agent cost.
Q2. To which country your products have been exported before?
In Africa, We have exported to Sudan, Kenya, Zambia, Ethiopia, Zimbabwe, Guinea, Nigeria and so on. We also exported South Africa, Chile, Peru, Ecuador, New Zealand, America, Austrilia more than 160 countries. Our equipment and service have won very high reputation in these countries.
Q3. How will you help the customer install the equipment?
We will send our senior engineer to your place to guide the installation and commissioning.
Q4. How about the wear parts supply?
We offer wear parts to our customer with our most favorable price. If there are problems you could not handle, we will send our technicians to your place.
Q5.What about the payment method?
T/T, Paypal, Western Union, L/C is available.
Q6.What about after-sale service?
12 months warranty for all kinds of products; and you will get our 7*24h online service.
