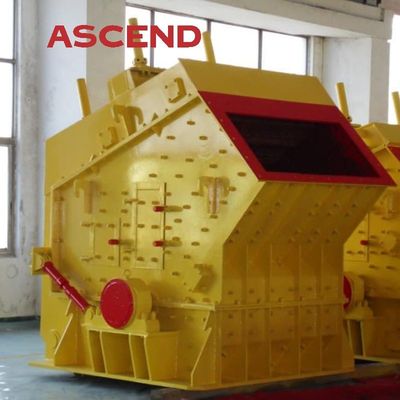

High Capacity 100 Ton Per Hour Impact Crusher Rotors Sand Making Crushing Machine

  • High Capacity 100 Ton Per Hour Impact Crusher Rotors Sand Making Crushing Machine
  • High Capacity 100 Ton Per Hour Impact Crusher Rotors Sand Making Crushing Machine
  • High Capacity 100 Ton Per Hour Impact Crusher Rotors Sand Making Crushing Machine
  • High Capacity 100 Ton Per Hour Impact Crusher Rotors Sand Making Crushing Machine
Place of Origin Zhengzhou, China
Brand Name ASCEND
Certification ISO9001, CE
Model Number different models
Document Product Brochure PDF
Minimum Order Quantity 1 set
Price negotiable
Packaging Details Large part is non-packed but rustproof and moisture proof then wrapped by plastic sheeting before delivery. The small parts are packed into wooden box.
Delivery Time 10-20 working days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 20-50 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Condition New Weight Based On The Model
Warranty 1 Year Type Impact Crusher
Capacity(t/h) Various Motor Type AC Motor
Leave a Message
Product Description

Impact Mill Rock Crushing Used Impact Crusher Second Equipment 50-120 Ton Per Hour Capacity

Product Description

Impact Crusher can crush the large, medium and small size materials (granite, limestone, concrete ,etc.)With max feed size less than 500mm and compression strength less than 350Mpa. Presently, by practices, its comprehensive function is superior to the cone crusher and the hammer crusher.

Impact Mill Rock Crushing Used Impact Crusher Second Equipment 50-120 Ton Per Hour Capacity



Application of Impact Crusher

It is widely used in metallurgy, mine, cement, chemical engineering, fire resistant materials, ceramics and other industrial sectors, as well as in the expressway construction, water conservancy project, building crushed stone, and machine-made sand process fields, etc.


Detailed Images



Impact Mill Rock Crushing Used Impact Crusher Second Equipment 50-120 Ton Per Hour Capacity





Spare Parts

Impact Mill Rock Crushing Used Impact Crusher Second Equipment 50-120 Ton Per Hour Capacity



Working Principle

Impact crusher is a kind of stone crusher using impact energy. After turn on,the motor drives the rotor rotate at a high speed .When the material get into the blow bar working area,they will be stroke by the blow bar and thrown to the impact devices around the rotor.The material will come out from the discharge hole until they are crushed to the required size. The clearance between the impact rack and the rotor can adjust the size and shape of the end product.

Impact Mill Rock Crushing Used Impact Crusher Second Equipment 50-120 Ton Per Hour Capacity

Impact Mill Rock Crushing Used Impact Crusher Second Equipment 50-120 Ton Per Hour Capacity



Main Technical Parameters



Model

Specifications

(mm)

Feed opening

(mm)

Max feeding side length

(mm)

Capacity

(t/h)

 Power
(kw)		 Total weight
(t)		 Dimensions
(LxWxH)
(mm)
PF-0607 Φ644×740 320×770 100 10-20 30 4 1500x1450x1500
PF-0807 Φ850×700 400×730 300 15-30 30-45 8.13 1900x1850x1500
PF-1007 Φ1000×700 400×730 300 30-70 45 12 2330x1660x2300
PF-1010 Φ1000×1050 400×1080 350 50-90 55 15 2370x1700x2390
PF-1210 Φ1250×1050 400×1080 350 70-130 110 17.7 2680x2160x2800
PF-1214 Φ1250×1400 400×1430 350 100-180 132 22.4 2650x2460x2800
PF-1315 Φ1320×1500 860×1520 500 130-250 220 27 3180x2720x2920
PF-1320 Φ1320×2000 860×2030 500 160-350 300 30 3200x3790x3100





Working Sites



Impact Mill Rock Crushing Used Impact Crusher Second Equipment 50-120 Ton Per Hour Capacity



Packing&Shipping



Impact Mill Rock Crushing Used Impact Crusher Second Equipment 50-120 Ton Per Hour Capacity

Impact Mill Rock Crushing Used Impact Crusher Second Equipment 50-120 Ton Per Hour Capacity





Company Profile

  • Henan Ascend Machinery & Equipment Co., Ltd. was established in 2005 and it is located in the high-tech zone of Zhengzhou City, Henan Province. As a technology driven mining equipment company, it is committed to the R&D, production, sales and after-sales service of mining machinery and equipment.
  • The company's main products are crushers, grinding mill equipment, mineral beneficiation equipment, rotary dryer and crusher & grinding mill spare parts. In addition to the Chinese domestic market, Ascend machinery expands its business in more than 160 countries and regions.

Our Workshop

Impact Mill Rock Crushing Used Impact Crusher Second Equipment 50-120 Ton Per Hour Capacity



FAQ

Q1. Are you factory or trading company?
We are factory specialized in manufacturing stone crushers, grinding mills, beneficiation equipments and other mining equipments. Our office and factories are based in Zhengzhou, China. Because we are factory, so we can guarantee the machine quality and we can give you very competitive factory price without extra agent cost.
Q2. To which country your products have been exported before?
In Africa, We have exported to Sudan, Kenya, Zambia, Ethiopia, Zimbabwe, Guinea, Nigeria and so on. We also exported South Africa, Chile, Peru, Ecuador, New Zealand, America, Austrilia more than 160 countries. Our equipment and service have won very high reputation in these countries.
Q3. How will you help the customer install the equipment?
We will send our senior engineer to your place to guide the installation and commissioning.
Q4. How about the wear parts supply?
We offer wear parts to our customer with our most favorable price. If there are problems you could not handle, we will send our technicians to your place.
Q5.What about the payment method?
T/T, Paypal, Western Union, L/C is available.
Q6.What about after-sale service?
12 months warranty for all kinds of products; and you will get our 7*24h online service.
