Sandstone Copper Gold Grinding Ball Mill Crusher 15tph For Minerals Processing Plant

Place of Origin China
Brand Name ASCEND
Certification CE/ISSO9001
Model Number 900x1200 900x1800 900x3000 1200x2400 1200x4500
Minimum Order Quantity 1 set
Price USD 3500-30000 Per set
Packaging Details Water and rust proof in wooden box or cotainer
Delivery Time 10 days
Payment Terms Western Union, T/T, L/C, MoneyGram
Supply Ability 10 set per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material High Manganese Steel Dimensions Customer Requirements
Application Mining,closed-circuit Milling Process Raw Material Quenching
Usage For Ball Mill Type Chrome Forged Steel Ball For Ball Mill
Quality Control Professional Inspection Warrantly 12 Months
High Light

Sandstone Copper Grinding Ball Mill Crusher

,

Ball Mill Crusher 15tph

,

Ball Mill Crusher For Minerals

Leave a Message
Product Description

TStone Rotary Ball Mill Basalt Granite Clay Grinding Machine For Gold Concentrate Machinery

Product Description

Ball mill is the key equipment for re-crushing the materials after they are primarily crushed. Ball mill is widely used for the dry type or wet type grinding of all kinds of ores and other grindable materials in cement, silicate product, new building material, refractory, fertilizer, black and non-ferrous metals and glass ceramic industry.

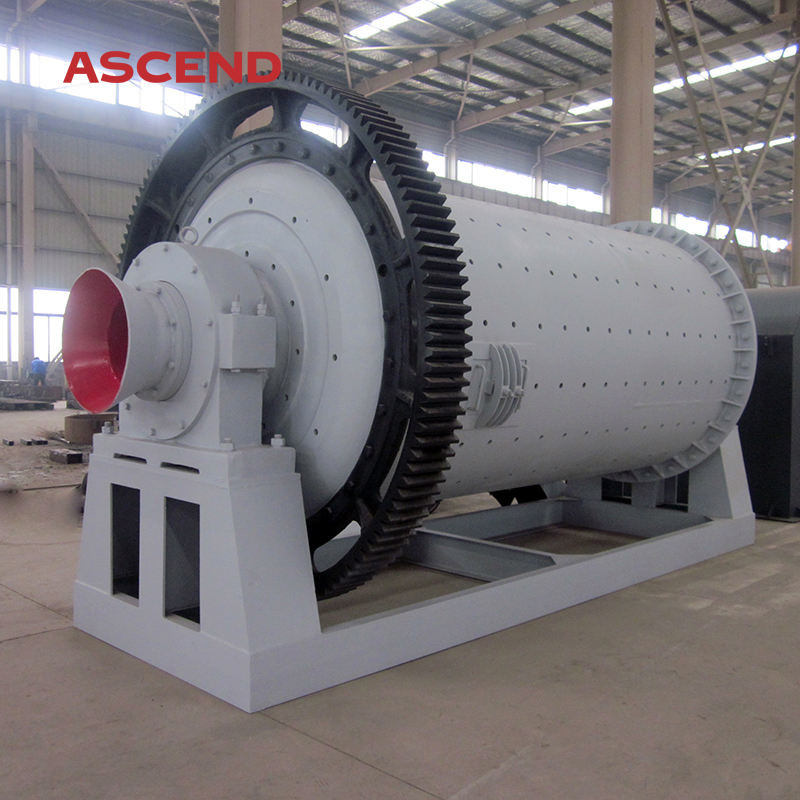

Sandstone Copper Gold Grinding Ball Mill Crusher 15tph For Minerals Processing Plant 0



Features of Ball Mill

The hollow shaft adopts steel casting, and its inner lining is detachable and changeable while the rotary rack wheel uses casting gear hobbing and there is a wear-resisting lining board inside the cylinder with good abrasion performance. This machine is featured with stable operation and reliable performance.



Detailed Images

Sandstone Copper Gold Grinding Ball Mill Crusher 15tph For Minerals Processing Plant 1





Spare Parts

Stone Rotary Ball Mill Basalt Granite Clay Grinding Machine For Gold Concentrate Machinery

Stone Rotary Ball Mill Basalt Granite Clay Grinding Machine For Gold Concentrate Machinery





Working Principle

The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.

Stone Rotary Ball Mill Basalt Granite Clay Grinding Machine For Gold Concentrate Machinery



Main Technical Parameters

Model

Shell rotation speed

(r/min)

Ball load

(t)

Feeding size

(mm)

Discharging size

(mm)

Capacity

(t/h)

Motor power

(kw)

Total weight

(t)

900×1800 36-38 1.5 <20 0.075-0.89 0.65-2 18.5 5.85
900×3000 36 2.7 <20 0.075-0.89 1.1-3.5 22 6.98
1200×2400 36 3 <25 0.075-0.6 1.5-4.8 30 13.6
1200×3000 36 3.5 <25 0.074-0.4 1.6-5 37 14.3
1200×4500 32.4 5 <25 0.074-0.4 1.6-5.8 55 15.6
1500×3000 29.7 7.5 <25 0.074-0.4 2-5 75 19.5
1500×4500 27 11 <25 0.074-0.4 3-6 110 22
1500×5700 28 12 <25 0.074-0.4 3.5-6 130 25.8
1830×3000 25.4 11 <25 0.074-0.4 4-10 130 34.5
1830×4500 25.4 15 <25 0.074-0.4 4.5-12 155 38
1830×6400 24.1 21 <25 0.074-0.4 6.5-15 210 43
1830×7000 24.1 23 <25 0.074-0.4 7.5-17 245 43.8
2100×3000 23.7 15 <25 0.074-0.4 6.5-36 155 45
2100×4500 23.7 24 <25 0.074-0.4 8-43 245 56
2100×7000 23.7 26 <25 0.074-0.4 12-48 280 59.5
2200×4500 21.5 27 <25 0.074-0.4 9-45 280 54.5
2200×6500 21.7 35 <25 0.074-0.4 14-26 380 61
2200×7000 21.7 35 <25 0.074-0.4 15-28 380 62.5
2200×7500 21.7 35 <25 0.074-0.4 15-30 380 64.8
2400×3000 21 23 <25 0.074-0.4 7-50 245 58
2400×4500 21 30 <25 0.074-0.4 8.5-60 320 72



Packing&Shipping



Stone Rotary Ball Mill Basalt Granite Clay Grinding Machine For Gold Concentrate Machinery



Working Sites



Stone Rotary Ball Mill Basalt Granite Clay Grinding Machine For Gold Concentrate Machinery





Company Profile

  • Henan Ascend Machinery & Equipment Co., Ltd. was established in 2005 and it is located in the high-tech zone of Zhengzhou City, Henan Province. As a technology driven mining equipment company, it is committed to the R&D, production, sales and after-sales service of mining machinery and equipment.
  • The company's main products are crushers, grinding mill equipment, mineral beneficiation equipment, rotary dryer and crusher & grinding mill spare parts. In addition to the Chinese domestic market, Ascend machinery expands its business in more than 160 countries and regions.

Our Workshop

Stone Rotary Ball Mill Basalt Granite Clay Grinding Machine For Gold Concentrate Machinery



FAQ

Q1. Are you factory or trading company?
We are factory specialized in manufacturing stone crushers, grinding mills, beneficiation equipments and other mining equipments. Our office and factories are based in Zhengzhou, China. Because we are factory, so we can guarantee the machine quality and we can give you very competitive factory price without extra agent cost.
Q2. To which country your products have been exported before?
In Africa, We have exported to Sudan, Kenya, Zambia, Ethiopia, Zimbabwe, Guinea, Nigeria and so on. We also exported South Africa, Chile, Peru, Ecuador, New Zealand, America, Austrilia more than 160 countries. Our equipment and service have won very high reputation in these countries.
Q3. How will you help the customer install the equipment?
We will send our senior engineer to your place to guide the installation and commissioning.
Q4. How about the wear parts supply?
We offer wear parts to our customer with our most favorable price. If there are problems you could not handle, we will send our technicians to your place.
Q5.What about the payment method?
T/T, Paypal, Western Union, L/C is available.
Q6.What about after-sale service?
12 months warranty for all kinds of products; and you will get our 7*24h online service.
