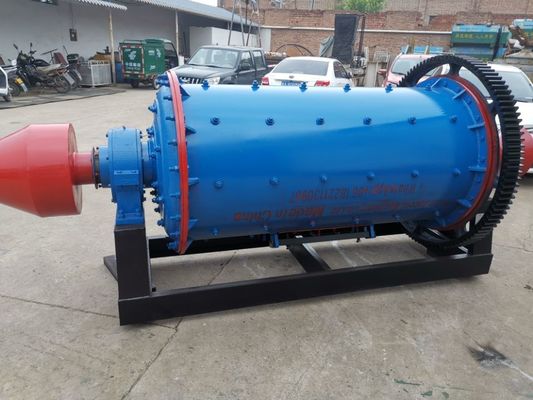

900x1200 Model Gold Copper Ball Mill Grinding Machine For Iron Ore Price

  • 900x1200 Model Gold Copper Ball Mill Grinding Machine For Iron Ore Price
  • 900x1200 Model Gold Copper Ball Mill Grinding Machine For Iron Ore Price
  • 900x1200 Model Gold Copper Ball Mill Grinding Machine For Iron Ore Price
  • 900x1200 Model Gold Copper Ball Mill Grinding Machine For Iron Ore Price
Place of Origin China
Brand Name ASCEND
Certification CE/ISSO9001
Model Number different models
Document Product Brochure PDF
Minimum Order Quantity 1 set
Price USD 3500-30000 Per set
Packaging Details Water and rust proof in wooden box or cotainer
Delivery Time 10 days
Payment Terms Western Union, T/T, L/C, MoneyGram
Supply Ability 10 set per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Steel,Iron,Stainless Steel Ball,High Manganese Steel Dimensions Customer Required,20-150mm,150,Dia.20mm-Dia.150mm(0.75''-6'')
Application Mining,Industry,cement,mine,power Plant Process Raw Material.smelting.moulding.grinding.quenching.temper.hardness Test
Usage For Ball Mill And Rod Mill Type Chrome Forged Steel Ball For Ball Mill
Quality Control Spectrometer,Professional Inspection
Leave a Message
Product Description

Stone Rotary Ball Mill Basalt Granite Clay Grinding Machine For Gold Concentrate Machinery

Product Description

Ball mill is a key equipment for material grinding after crushing process. It is widely used in powder-making production lines, such as cement, silicate, new-type building material, refractory material, fertilizer, ore beneficiation of ferrous metal and non- ferrous metal, glass ceramics, etc.

Stone Rotary Ball Mill Basalt Granite Clay Grinding Machine For Gold Concentrate Machinery



Advantages of Ball Mill

1. Simpler maintenance and equipment.
2. The stability life is longer.
3. The equipment can be directly moved and positioned by the roller, which is portable and convenient.
4. It is produced by a professional design engineer, with a design concept of simplicity, beauty, environmental protection and safety.


Detailed Images



Stone Rotary Ball Mill Basalt Granite Clay Grinding Machine For Gold Concentrate Machinery



Spare Parts

Stone Rotary Ball Mill Basalt Granite Clay Grinding Machine For Gold Concentrate Machinery

Stone Rotary Ball Mill Basalt Granite Clay Grinding Machine For Gold Concentrate Machinery





Working Principle

The motor drives the speed reducer, the speed reducer drives the small gear, the small gear drives the big gear, the big gear drives the rotary body moving. The material enters from the feeding mouth, it is thrown down with the steel ball, squeezed, and ground into powder by itself.

Stone Rotary Ball Mill Basalt Granite Clay Grinding Machine For Gold Concentrate Machinery



Main Technical Parameters

Model

Shell rotation speed

(r/min)

Ball load

(t)

Feeding size

(mm)

Discharging size

(mm)

Capacity

(t/h)

Motor power

(kw)

Total weight

(t)
900×1800 36-38 1.5 <20 0.075-0.89 0.65-2 18.5 5.85
900×3000 36 2.7 <20 0.075-0.89 1.1-3.5 22 6.98
1200×2400 36 3 <25 0.075-0.6 1.5-4.8 30 13.6
1200×3000 36 3.5 <25 0.074-0.4 1.6-5 37 14.3
1200×4500 32.4 5 <25 0.074-0.4 1.6-5.8 55 15.6
1500×3000 29.7 7.5 <25 0.074-0.4 2-5 75 19.5
1500×4500 27 11 <25 0.074-0.4 3-6 110 22
1500×5700 28 12 <25 0.074-0.4 3.5-6 130 25.8
1830×3000 25.4 11 <25 0.074-0.4 4-10 130 34.5
1830×4500 25.4 15 <25 0.074-0.4 4.5-12 155 38
1830×6400 24.1 21 <25 0.074-0.4 6.5-15 210 43
1830×7000 24.1 23 <25 0.074-0.4 7.5-17 245 43.8
2100×3000 23.7 15 <25 0.074-0.4 6.5-36 155 45
2100×4500 23.7 24 <25 0.074-0.4 8-43 245 56
2100×7000 23.7 26 <25 0.074-0.4 12-48 280 59.5
2200×4500 21.5 27 <25 0.074-0.4 9-45 280 54.5
2200×6500 21.7 35 <25 0.074-0.4 14-26 380 61
2200×7000 21.7 35 <25 0.074-0.4 15-28 380 62.5
2200×7500 21.7 35 <25 0.074-0.4 15-30 380 64.8
2400×3000 21 23 <25 0.074-0.4 7-50 245 58
2400×4500 21 30 <25 0.074-0.4 8.5-60 320 72



Packing&Shipping



Stone Rotary Ball Mill Basalt Granite Clay Grinding Machine For Gold Concentrate Machinery



Working Sites



Stone Rotary Ball Mill Basalt Granite Clay Grinding Machine For Gold Concentrate Machinery





Company Profile

  • Henan Ascend Machinery & Equipment Co., Ltd. was established in 2005 and it is located in the high-tech zone of Zhengzhou City, Henan Province. As a technology driven mining equipment company, it is committed to the R&D, production, sales and after-sales service of mining machinery and equipment.
  • The company's main products are crushers, grinding mill equipment, mineral beneficiation equipment, rotary dryer and crusher & grinding mill spare parts. In addition to the Chinese domestic market, Ascend machinery expands its business in more than 160 countries and regions.

Our Workshop

Stone Rotary Ball Mill Basalt Granite Clay Grinding Machine For Gold Concentrate Machinery



FAQ

Q1. Are you factory or trading company?
We are factory specialized in manufacturing stone crushers, grinding mills, beneficiation equipments and other mining equipments. Our office and factories are based in Zhengzhou, China. Because we are factory, so we can guarantee the machine quality and we can give you very competitive factory price without extra agent cost.
Q2. To which country your products have been exported before?
In Africa, We have exported to Sudan, Kenya, Zambia, Ethiopia, Zimbabwe, Guinea, Nigeria and so on. We also exported South Africa, Chile, Peru, Ecuador, New Zealand, America, Austrilia more than 160 countries. Our equipment and service have won very high reputation in these countries.
Q3. How will you help the customer install the equipment?
We will send our senior engineer to your place to guide the installation and commissioning.
Q4. How about the wear parts supply?
We offer wear parts to our customer with our most favorable price. If there are problems you could not handle, we will send our technicians to your place.
Q5.What about the payment method?
T/T, Paypal, Western Union, L/C is available.
Q6.What about after-sale service?
12 months warranty for all kinds of products; and you will get our 7*24h online service.
