1500x3000 5 T/H Gold Copper Mining Grinding Ball Mill Machine Crusher

  • 1500x3000 5 T/H Gold Copper Mining Grinding Ball Mill Machine Crusher
  • 1500x3000 5 T/H Gold Copper Mining Grinding Ball Mill Machine Crusher
  • 1500x3000 5 T/H Gold Copper Mining Grinding Ball Mill Machine Crusher
  • 1500x3000 5 T/H Gold Copper Mining Grinding Ball Mill Machine Crusher
  • 1500x3000 5 T/H Gold Copper Mining Grinding Ball Mill Machine Crusher
Place of Origin China
Brand Name Ascend
Certification CE
Model Number 1200x2400, 1200x1500 1500x3000 1830x3000
Document Product Brochure PDF
Minimum Order Quantity 1 set
Price USD 5800-38000 Per set
Packaging Details Water and rust proof in wooden box or cotainer

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Wet And Dry Ball Mill Application Grinding Gold Ore
Type Rotary Ball Mill Voltage 380V 50Hz
Material Mn13Cr2 Color Customized
Standard Client Specification Quality Control Professional Inspection
Highlight

1500x3000 Grinding Ball Mill

,

Copper Grinding Ball Mill

,

1500x3000 Ball Mill Machine
Leave a Message
Product Description

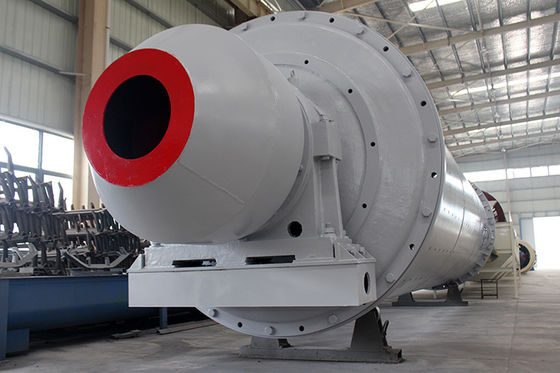

1500x3000 5 T/H Gold Copper Mining Grinding Ball Mill Machine Crusher 0

Mining gold ore grinding ball mill machine

The ball mill is a key equipment for regrinding. It is widely used for the cement, the silicate product, new type building material, fire-proof material, chemical fertilizer, black and non-ferrous metal, glass, ceramics and etc. Our ball mill can grind ore or other materials that can be grinded either by wet process or by dry process.
The ball mill is suitable for the beneficiation and grinding of fly ash, limestone, quartz sand, aluminium powder, coal powder, steel slag, ore, potassium feldspar, iron ore, iron slag, aluminium slag, silicon carbide, alumina, coal gangue and other materials.

1500x3000 5 T/H Gold Copper Mining Grinding Ball Mill Machine Crusher 1

Working priciple

The ball mill is a homitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.

1500x3000 5 T/H Gold Copper Mining Grinding Ball Mill Machine Crusher 2

Product advantages

1. The lining can be replaced.
2. Mineral ball mill is an efficient tool for grinding many materials into fine powder.
3.Two ways of grinding: the dry way and the wet way.
4.Ultimate particle size depends entirely on how hard the material you’re grinding is.
5. As the barrel rotates, the material is crushed between the individual pieces of grinding media that mix and crush the product into fine powder over a period of several hours.

1500x3000 5 T/H Gold Copper Mining Grinding Ball Mill Machine Crusher 31500x3000 5 T/H Gold Copper Mining Grinding Ball Mill Machine Crusher 4

Ball mill liners and steel balls

1500x3000 5 T/H Gold Copper Mining Grinding Ball Mill Machine Crusher 5

1500x3000 5 T/H Gold Copper Mining Grinding Ball Mill Machine Crusher 6

Specifications

Model
Shell rotation speed(r/min)
Ball load
Feeding size
Discharging size
Capacity
Motor power
Weight
(t)
(mm)
(mm)
(t/h)
(kw)
(t)
Ø 900*1800
36-38
1.5
< =20
0.075-0.89
0.65-2
18.5
4.6
Ø 900*3000
36
2.7
< =20
0.075-0.89
1.1-3.5
22
5.6
Ø 1200*2400
36
3
< =25
0.075-0.6
1.5-4.8
30
12
Ø 1200*3000
36
3.5
< =25
0.074-0.4
1.6-5
37
12.8
Ø 1200*4500
32.4
5
< =25
0.074-0.4
1.6-5.8
55
13.8
Ø 1500*3000
29.7
7.5
< =25
0.074-0.4
2.0-5.0
75
15.6
Ø 1500*4500
27
11
< =25
0.074-0.4
3.0-5.0
110
21
Ø 1500*5700
28
12
< =25
0.074-0.4
3.5-6
130
24.7
Ø 1830*3000
25.4
11
< =25
0.074-0.4
4.0-10.0
130
28
Ø 1830*4500
25.4
15
< =25
0.074-0.4
4.5-12
155
32
Ø 1830*6400
24.1
21
< =25
0.074-0.4
6.5-15
210
34
Ø 1830*7000
24.1
23
< =25
0.074-0.4
7.5-17
245
36
Ø 2100*3000
23.7
15
< =25
0.074-0.4
6.5-36
155
34
Ø 2100*4500
23.7
24
< =25
0.074-0.4
8-43
245
42
Ø 2100*7000
23.7
26
< =25
0.074-0.4
8-48
280
50
Ø 2200*4500
21.5
27
< =25
0.074-0.4
9-45
280
48.5
Ø 2200*6500
21.7
35
< =25
0.074-0.4
14-26
380
52.8
Ø 2200*7000
21.7
35
< =25
0.074-0.4
15-28
380
54
Ø 2200*7500
21.7
35
< =25
0.074-0.4
15-30
380
56
Ø 2400*3000
21
23
< =25
0.074-0.4
7-50
245
54



Product delivery

1500x3000 5 T/H Gold Copper Mining Grinding Ball Mill Machine Crusher 7

Ball mill working site

1500x3000 5 T/H Gold Copper Mining Grinding Ball Mill Machine Crusher 8

1500x3000 5 T/H Gold Copper Mining Grinding Ball Mill Machine Crusher 9
