20 50 100 Ton Per Hour Mining Crusher Machine Mobile Diesel Engine Jaw Crusher Plant

  • 20 50 100 Ton Per Hour Mining Crusher Machine Mobile Diesel Engine Jaw Crusher Plant
  • 20 50 100 Ton Per Hour Mining Crusher Machine Mobile Diesel Engine Jaw Crusher Plant
  • 20 50 100 Ton Per Hour Mining Crusher Machine Mobile Diesel Engine Jaw Crusher Plant
  • 20 50 100 Ton Per Hour Mining Crusher Machine Mobile Diesel Engine Jaw Crusher Plant
Place of Origin China
Brand Name Ascend
Certification CE/ISSO9001
Model Number PE200x300 PE220x350 PE250x400 PE400x600
Minimum Order Quantity 1 set
Price USD 3500-35000 Per set
Packaging Details Water and rust proof in wooden box or cotainer
Delivery Time 10 working days
Payment Terms T/T, Western Union
Supply Ability 10 set per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Mobile Stone Crushing Plant Type Diesel Engine Jaw Crusher Machine
Motor Type Diesel Engine Or Electric Motor Material Manganese Steel
Application Mining,Quarry,Stone Warranty One Year
Condition New
High Light

Diesel Engine Mining Crusher Machine

,

100 Ton Per Hour Mining Crusher Machine

,

Diesel Engine Jaw Crusher Plant
Leave a Message
Product Description

20 50 100 ton per hour portable mobile diesel engine stone jaw crushing crusher plant

Mobile crushing plant also named portable crusher station, is a new type of crushing equipment, researched and designed by our experienced engineers. Our Mobile jaw crusher station widely used in mines, coal mines, garbage and construction waste recycling, civil engineering, urban infrastructure, roads or construction sites etc.

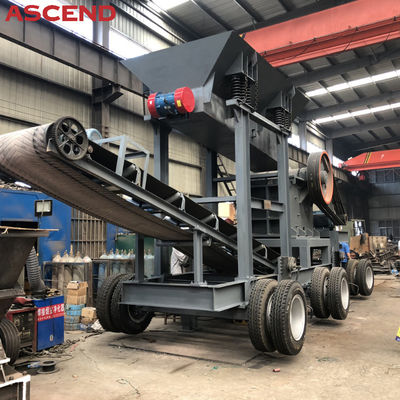

20 50 100 Ton Per Hour Mining Crusher Machine Mobile Diesel Engine Jaw Crusher Plant 0

Mobile diesel engine jaw crushing plant description

Mobile jaw crusher station is mainly composed of feeder, jaw crusher and belt conveyor. The capacity is 20-250 tons per hour.

The machine adopts the integrated group operation mode, can work separately, eliminates the complex site infrastructure and auxiliary facilities installation of the split-component, and reduces the man-hour consumption.

Here are the different mobile crushers we made according to different customer requirements. We can also make mobile crusher with diesel engine or generators, which can work in the wild environment where there is no electricity supply.

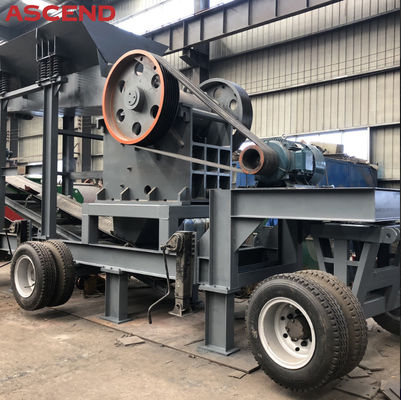

20 50 100 Ton Per Hour Mining Crusher Machine Mobile Diesel Engine Jaw Crusher Plant 1

20 50 100 Ton Per Hour Mining Crusher Machine Mobile Diesel Engine Jaw Crusher Plant 2

Mobile stone crushing plant specificaitons



SC Jaw crusher SC600 SC750 SC900 SC1060 SC1200 SC1300PEX
Transport dimension
Length (mm) 8600 9600 11097 13300 15800 9460
Width (mm) 2520 2520 3759 2900 2900 2743
Height (mm) 3770 3500 3500 4440 4500 3988
Weight (Kg) 15240 22000 32270 57880 98000 25220
Axle load(kg) 10121 14500 21380 38430 64000 14730
Traction pin load(kg) 5118 7500 10890 19450 34000 10490
Jaw crusher
Model PE400X600 PE500X750 PE600X900 PE750X1060 PE900X1200 PEX300X1300
Inlet size (mm) 400X600 500X750 600X900 750X1060 900X1200 300X1300
Adjustment range of discharge port (mm) 40-100 50-100 65-180 80-180 95-225 20-90
Capacity (m³/h) 10-35 25-60 30-85 70-150 100-240 10-65
Vibrating feeder
Hopper volume(m³) 3 4 7 10 10 3
Width of Hopper(mm) 2200 2500 3000 3000 3000 2200
Model GZT0724 GZT0724 GZT0932Y ZSW490X110 ZSW600X130 GZT0724
Belt conveyor
Model B650X6 B800X7 B1000X8 B1000X11 B1200X13 B1000X7

Performance Characteristics of Mobile Crusher

1.Move Easily.

It can go to the crushing place directly. It can move not only on the smooth road, but also on the bumpy road.
2.Compact Structure and Simple Operation.
Integrative equipment group with trailer save the working area. With generator, motor and control box on the trailer, it can work outdoor easily. Equipped with supporting facilities, it can be installed quickly and conveniently.
3.Easy to Operate
Operating system with imported direct servo technique can be easily and precisely controlled and travel in a high speed.

Mobile diesel jaw crusher plant delivery

According to the mobile crusher plant dimension and customer request, we can load the crusher plant into full container or put it in the bulk ship to reduce the shipping cost

20 50 100 Ton Per Hour Mining Crusher Machine Mobile Diesel Engine Jaw Crusher Plant 3
