Gold Ore Ball Mill Gravity Processing Plant

Place of Origin China
Brand Name Ascend
Certification CE/ISSO9001
Model Number 900x1200, 1200x1500 1500x3000 1830x3000
Minimum Order Quantity 1 set
Price USD 3500-30000 Per set
Packaging Details Water and rust proof in wooden box or cotainer
Delivery Time 7-10 working days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 10 set per month
Product Details
Material High Manganese Steel Dimensions Customer Required
Application Mining,mine,power Plant Product Name Ball Mill Grinding Media Steel Ball
Usage For Ball Mill And Rod Mill Heat Treatment Quenchining & Tempering
High Light

Ore Ball Mill


Gold Ore Ball Mill


Ore ball mill plant

Leave a Message
Product Description



Main machines show:


1-2.0TPH Jaw crusher / PE150*250 1 set 5.5 7-10.0
Hammer crusher / PM300*375 1 set 5.5
Ball mill/ GM1224 1 set 30
Spiral classifier / FLG-7 1 set 3
6s shaking table 2 sets 1.1*2
5.0TPH Jaw crusher / PE250*400 1 set 15 18-25.0
Hammer crusher / PM300*375 1 set 5.5
Ball mill / GM1530 1 set 80
Spiral classifier / FLG-10 1 set 5.5
Gold concentrator / STLB-60 2 sets 4*2
6s shaking table 1 set 1.1
10.0TPH Jaw crusher / PE400*600 1 set 30 43-48.0
Hammer crusher / PC400*600 1 set 18.5
Ball mill /GM1836 1 set 155
Spiral classifier / FLG-15 1 set 7.5+2.2
Gold concentrator / STLB-60 2 sets 4*2
6s shaking table 1 set 1.1


1)Mining equipment jaw crusher for copper or gold crusher

Jaw Crusher is usually used to be used as primary machine for various materials with compressive strength up to 320MPa.A jaw or toggle crusher consists of a set of vertical jaws, one jaw being fixed and the other being moved back and forth relative to it by a cam or pitman mechanism.



Gold Ore Ball Mill Gravity Processing Plant 1


2) hammer crusher / impact hammer crusher :gold ore processing equipment

In the hammer crusher, the motor drives the rotor to rotate at a high speed through the belt, and on the rotor there are series of hammers. When the materials get into the working area of hammers, the rotating hammers with high rotation speed are crushing them, the crushed products meeting the required size can be discharged by the outlet and become the final products.


Gold Ore Ball Mill Gravity Processing Plant 2

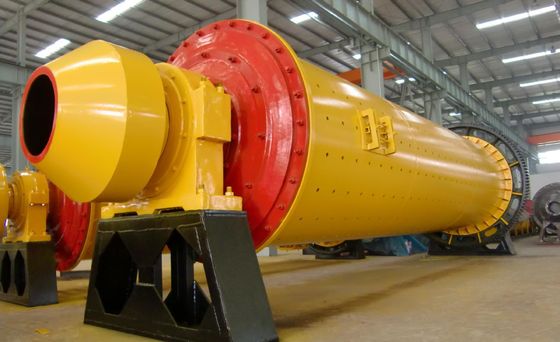

3)rock gold mining equipment grinding machine ball mill

A ball mill is a type of grinder used to grind the crushed materials which including cement,silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics. etc into extremely fine powder.



Gold Ore Ball Mill Gravity Processing Plant 3


4)Rock gold mining equipment high weir spiral classifier

Spiral classifiers mainly include four types. They are high weir type single spiral classifier, high weir type double spiral classifier, immersed type single spiral classifier and immerse type double spiral classifier.
A spiral classifier is composed of a transmission device, spirals, tank, elevator mechanism, a bottom support (bearing bush) and a discharging valve.

Gold Ore Ball Mill Gravity Processing Plant 4


6) Gold centrifugal concentrator for rock gold processing

Centrifugal Concentrator is kind of centrifugal concentration equipment. It can be used not only for placer gold mining, but also for hard rock mining to recover the natural gold, replacing amalgamation. It is also used to recover gold from the old tailings.


Gold Ore Ball Mill Gravity Processing Plant 5


7) 6s shaker table in gold processing

Shaking table (shake table) is one of the important dressing equipment depending on the gravity. It is widely used in selection of Tin, tungsten, gold, silver, lead, zinc, tantalum, niobium, iron, manganese, ferrotitanium and coal.



small scale gravity rock gold processing plant in Africa

8) small melting furnace for gold bar




small scale gravity rock gold processing plant in Africa
